Pro Tone Generator – Electrical Distributor Tool

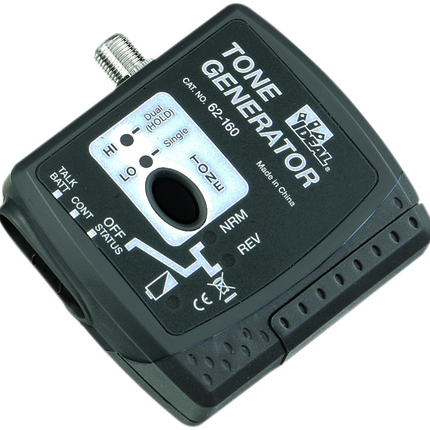

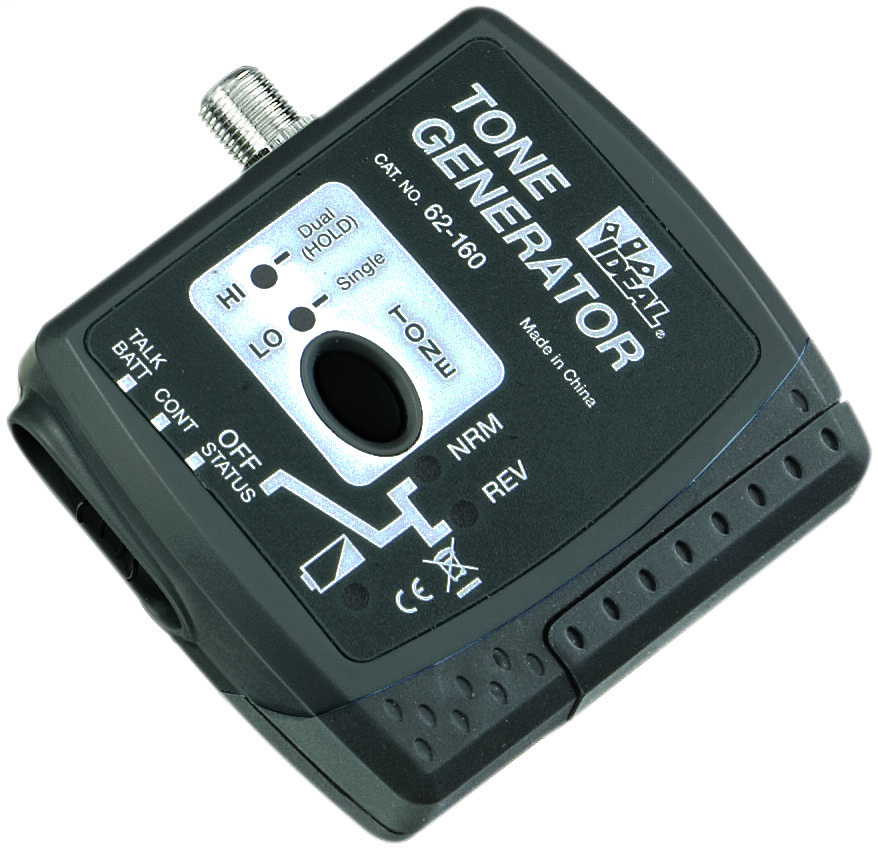

The Pro Tone Generator by IDEAL Industries is a precision instrument designed for wire and cable tracing, continuity testing, and telephone line diagnostics. It is widely used by electrical distributors, lighting solutions providers, and switchgear suppliers to identify and verify wiring in complex electrical and communication systems. This tool supports efficient troubleshooting and maintenance of electrical networks by generating selectable tones for cable identification and providing essential line status information.

Specifications

• Power Requirements: One 9 Volt battery
• Battery Life: Approximately 70 hours typical
• Tone Frequencies: Dual tones at 1116 Hz and 919 Hz; Single tone at 919 Hz
• Tone Power into 600 ohms: High = 7 dBm, Low = 1 dBm
• Voltage Protection: OFF Status – DC up to 58 volts continuous, AC up to 300V peak for 2 seconds; Continuity and Talk Battery modes – DC up to 52 volts
• Talk Battery Output: 6.0 VDC into 600 ohms
• Dimensions: 2.7 x 2.6 x 1.1 inches (67 x 66 x 28 mm)
• Weight: 4 oz (113 grams) including battery

Features

• Selectable three-tone output (warble, pulse, steady) via front panel control
• Tone can be added in any status to support test sets without monitor feature
• Separate talk battery mode provides increased voltage and power for test sets
• Auto power-off after 3 hours to conserve battery life
• Constant tone amplitude maintained throughout battery life
• Two-tone amplitude levels: normal and half strength
• No power draw in continuity mode with open leads
• RJ jack compatible with modular cables or alligator clips
• Low battery LED indicator for timely replacement
• Easy battery replacement without tools
• Includes 9 Volt battery
• Polarity and line status LEDs for quick telephone line diagnostics
