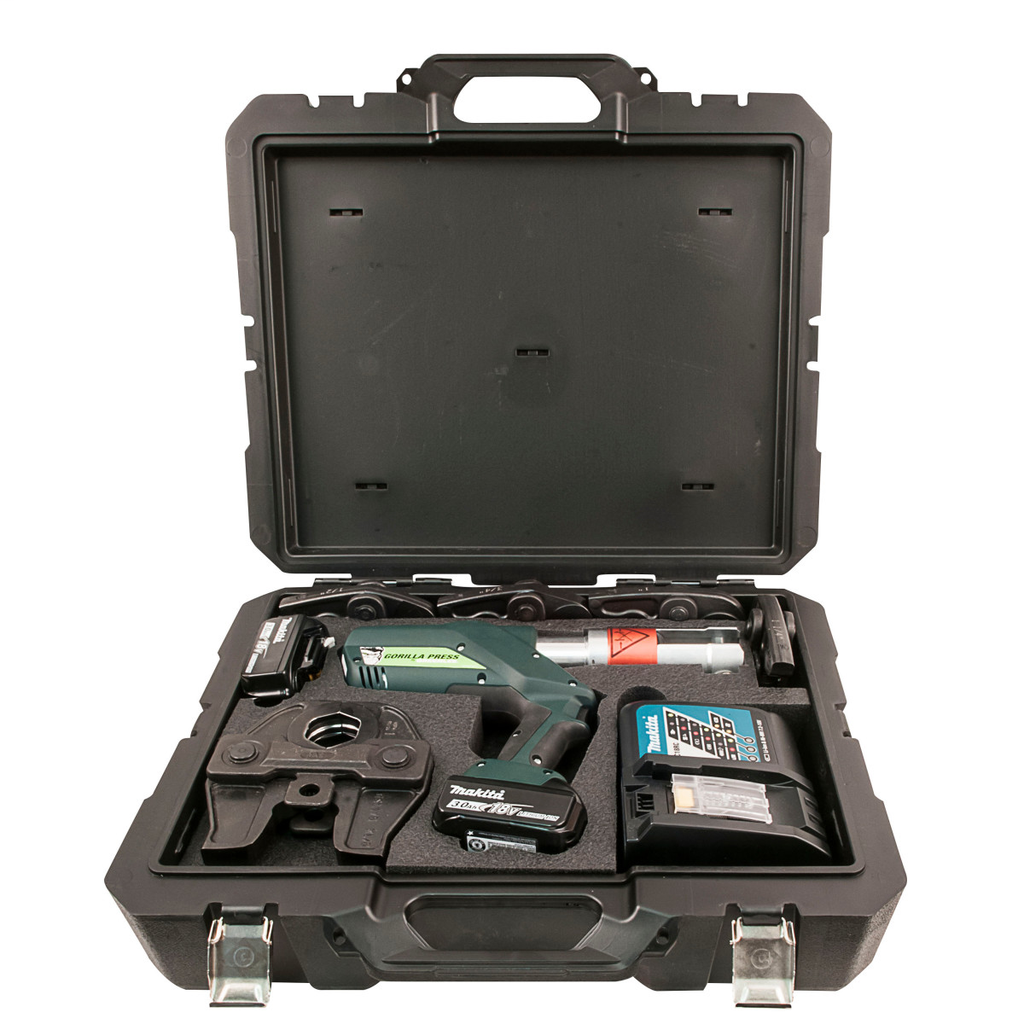

PRESS TOOL, PISTOL GRIP & CASE - Battery-Powered Pressing Tool

The Greenlee PRESS TOOL, PISTOL GRIP & CASE is a hand-held, battery-powered pressing tool designed for pressing 1/2" through 2" copper, steel, and PEX fittings and valves. It is suitable for electrical distributors and switchgear suppliers requiring reliable pressing solutions. The tool features a pistol grip for ergonomic handling and includes a carrying case for convenient transport and storage.

Specifications

• Manufacturer: Greenlee
• Manufacturer Part #: 52079804
• Country of Origin: Germany
• Weight (with battery): 7.8 lb (3.5 kg)
• Dimensions (L x W x H): 14.45" x 2.95" x 12.48" (367 mm x 75 mm x 317 mm)
• Operating Force: 3.6 ton (32 kN)
• Hydraulic Oil: Biodegradable hydraulic fluid
• Recommended Operating Temperature Range: 5 °F to 122 °F (–15 °C to 50 °C)
• Crimping Force: 7,200 pounds

Features

• Self-contained, battery-powered pressing tool with pistol grip design for ease of use
• Presses fittings and valves sized 1/2" through 2" in copper, steel, and PEX
• Hydraulic unit with automatic retraction of drive rollers upon reaching maximum pressure
• Special brake stops drive rollers when trigger is released for enhanced safety
• Double piston pump enables rapid approach and slow pressing motion for precise operation
• Pressing head rotates 350° for improved access in tight or difficult working areas
• Microprocessor monitors service intervals, internal checks, and battery status
• LED work light activates during operation for improved visibility
• Pressure sensor and audible alerts warn of incomplete presses to ensure quality connections
• Includes protective sleeve with position indicators for jaws and pressing chains
• Battery and charger sold separately; battery status indicated by LED signals
• Designed for hand-held operation; not for continuous use beyond 30-40 cycles without cooling
• Comes with a durable carrying case for storage and transport

Downloads & Links

• Owners Manual
