Premium Wire Connectors in Tan & Red rated for 18-12 AWG |100 Pack – Wire Connectors

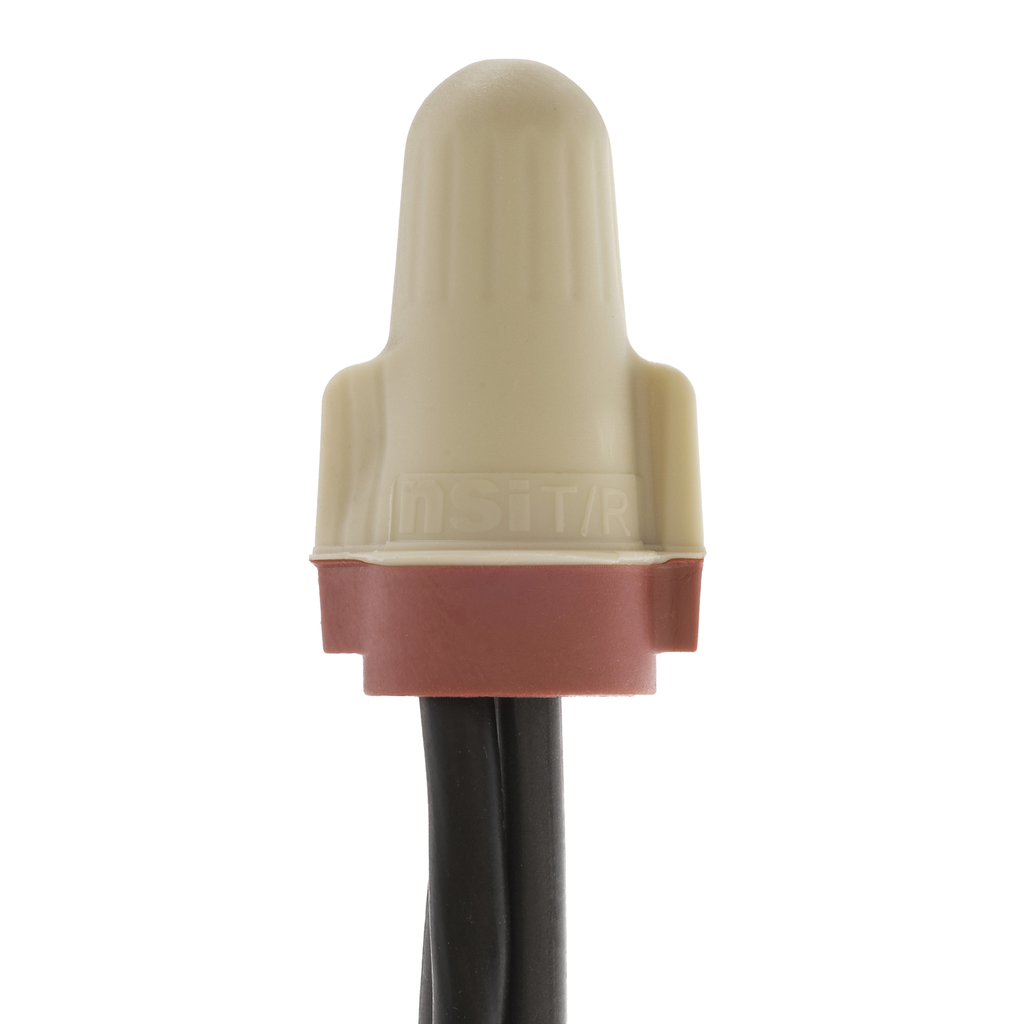

These Terminator Premium Wire Connectors are designed for splicing copper wire in the 18-12 AWG range. Ideal for electrical distributors and lighting solutions providers, they offer a dual-color coding system that combines the functionality of two standard connectors, reducing inventory needs. Rated for use with copper wire only, these connectors are suitable for building wiring, fixtures, and signs, providing reliable and secure electrical connections.

Specifications

• Application: Splicing Wire
• Wire Type: CU Wire Only
• Wire Range: 18-12 AWG
• Material: Thermoplastic
• Finish: Thermoplastic
• Color: Tan/Red
• Dimensions (L x W x H): 6.456 in x 3.031 in x 8.503 in
• Product Weight: 0.3100 lbs
• Temperature Rating: 105°C (221°F) max
• Voltage Rating: 600V max in building wiring; 1000V max in fixtures and signs
• UL-Listed as a pressure-type wire connector
• Country of Origin: China
• Manufacturer: NSI Industries
• Manufacturer Part #: TM-TR-100P

Features

• Dual-color connector covers wire range of two standard connectors, reducing inventory requirements
• Steel square-wire springs provide a quick and reliable bite for secure connections
• Extra thick end cap prevents wire breakthroughs
• Rounded wings and ergonomic grooves enable more torque application with less effort
• Deep, flexible skirt offers additional protection against over-strips and allows fitting into tight spaces
