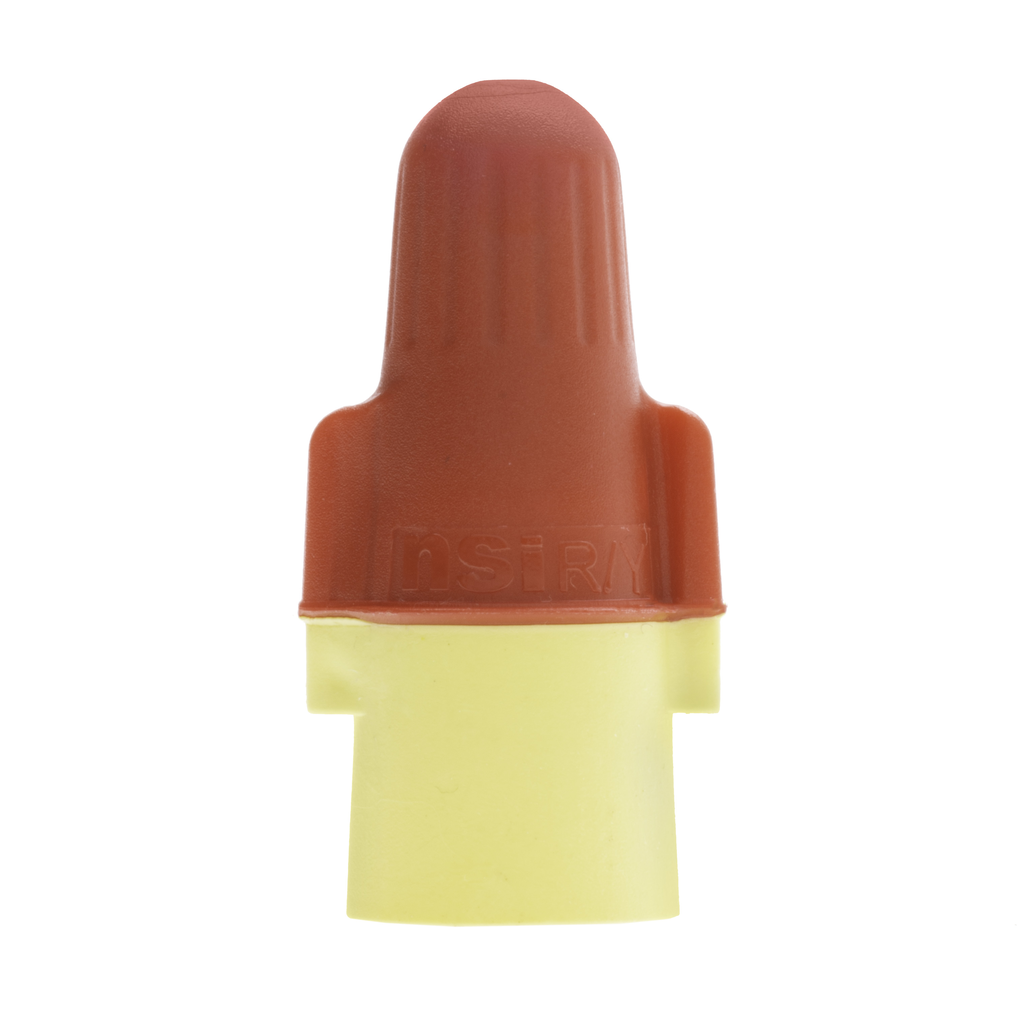

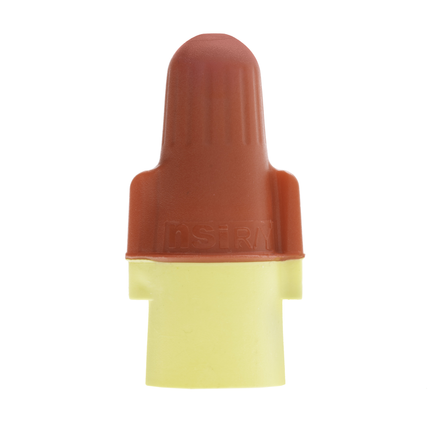

Premium Wire Connectors in Red & Yellow rated for 18-8 AWG | Wire Connectors

These TERMINATOR® Premium Wire Connectors are designed for splicing copper wires within the 18-8 AWG range. Ideal for electrical distributors and lighting solutions providers, these connectors feature a dual-color design that combines red and yellow coding, enabling one connector to replace two standard connectors in many applications. Constructed from thermoplastic with steel springs, they provide secure, reliable connections suitable for wire and cable installations in building wiring, fixtures, and sign applications.

Specifications

• Application: Splicing Wire
• Wire Type: Copper Wire Only
• Material: Thermoplastic
• Finish: Thermoplastic
• Color: Red/Yellow
• Dimensions (L x W x H): 6.496 in x 3.031 in x 10.236 in
• Product Weight: 0.3400 lbs
• Temperature Rating: 105°C (221°F) max
• Voltage Rating: 600V max in building wiring; 1000V max in fixtures and signs
• Manufacturer: NSI Industries
• Manufacturer Part #: TM-RY-100P
• Country of Origin: China

Features

• Dual-color coding fits wire range of two standard connectors, reducing inventory requirements
• Steel square-wire springs provide quick and reliable bite
• Extra thick end cap prevents wire breakthroughs
• Rounded wings and ergonomic grooves allow more torque for secure connections with less effort
• Flexible skirt provides additional protection against over-strips and allows fitting into tight spaces
• UL-listed as a pressure-type wire connector for safety and reliability
