Pre-Insulated Crimp Connectors – Crimp Connectors for Electrical Wire Terminations

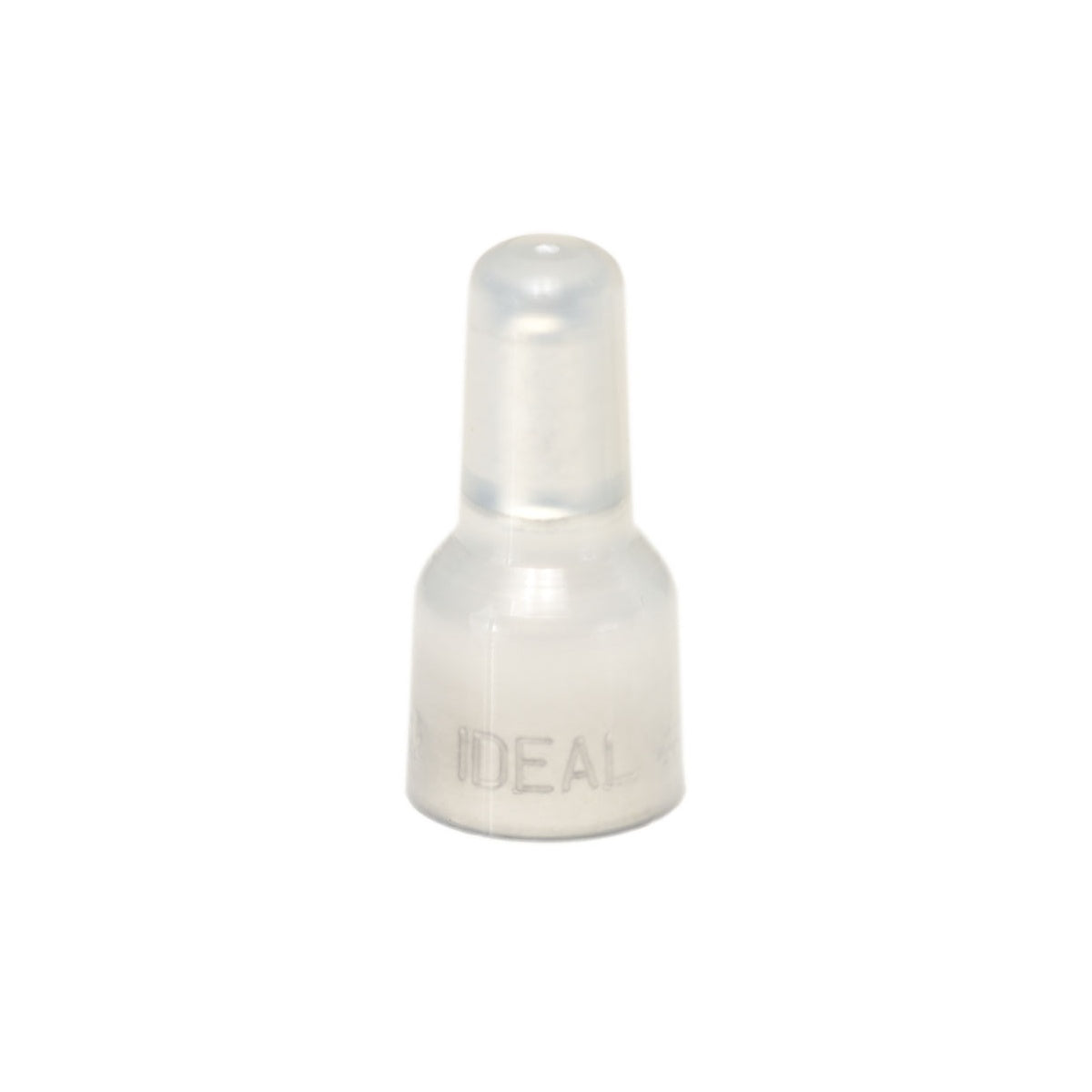

The IDEAL Industries Pre-Insulated Crimp Connectors (Manufacturer Part #30-645) provide reliable electrical connections for solid and stranded wire combinations in various industrial and commercial applications. These connectors are designed for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring secure wire terminations rated up to 600 volts. Their compact, pre-insulated design facilitates installation in tight spaces while maintaining electrical safety and performance.

Specifications

• Manufacturer: IDEAL Industries
• Manufacturer Part Number: 30-645
• Voltage Rating: 600 V max (Signs/Luminaires 1000 V)
• Housing Material: Nylon
• Insert Material: Copper
• Plating: Tin
• Operating Temperature: 105°C (221°F) for models 48/49, 150°C (302°F) for model 49HT
• Dimensions (Model 48): 0.36 in (9.1 mm) diameter, 0.75 in (19 mm) length
• Wire Range (Model 48): 1 or 3 #16, 1 to 4 #18, 1 to 5 #20, 1 to 6 #22 AWG
• Strip Length: 3/8" (9.5 mm)
• Color: White
• Package Quantity: 10,000 pieces

Features

• Wide wire range suitable for a variety of applications
• Compact design fits easily into tight locations
• Slightly flared skirt protects against turned-back strands without occupying valuable space
• Beveled entry guides conductors into the connector body for reduced connection time
• UL 486C Listed, UL 94V-2 Flame Rating, CSA-C22.2 No. 188 certified, RoHS compliant
• Compatible with pneumatic crimp tools, PCAM™ (Pre-Insulated Crimp Application Machine), and Crimpmaster™ hand tools

Downloads & Links

• Pre-Insulated Crimp Specification Sheet
• UL Listed Wire Combinations
• Pre-Insulated Crimp Dimensions
• Wire Termination Warranty
