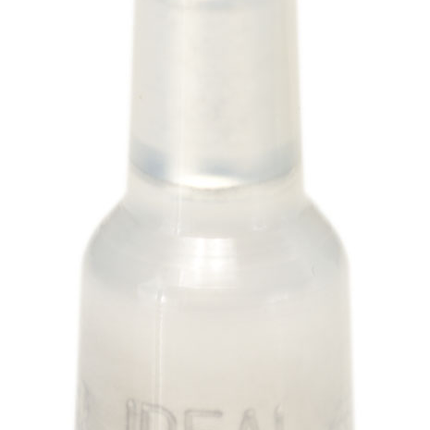

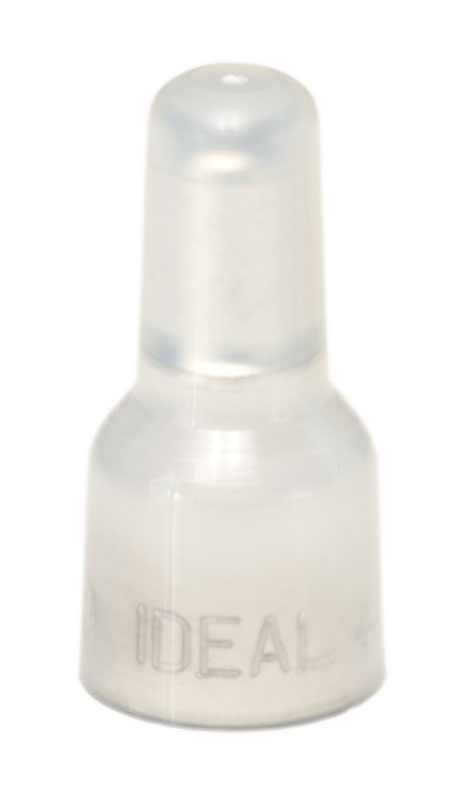

Pre-Insulated Crimp Connectors – Electrical Wire Connectors

The Pre-Insulated Crimp Connectors by IDEAL Industries provide reliable wire connection solutions suitable for electrical distributors and lighting solutions applications. Designed for use with solid and stranded copper wire combinations, these connectors ensure secure and efficient electrical connections. They are ideal for wire and cable installations requiring dependable crimping performance. The connectors support a maximum voltage of 600 V, making them suitable for a variety of electrical wiring tasks, including switchgear assemblies.

Specifications

• Manufacturer Part #: 30-249
• Voltage Rating: 600 V MAX (Signs/Luminaires 1000 V)
• Housing Material: Nylon
• Insert Material: Copper
• Plating: Tin
• Temperature Rating: 105°C (Model 48/49), 150°C (Model 49HT)
• Product Weight: 3.0000 lbs

Features

• Wide wire range accommodates various applications
• Compact design fits easily into tight locations
• Slightly flared skirt protects against turned-back strands without occupying extra space
• Beveled entry guides conductors into connector body, reducing connection time
• UL 486C listed, UL 94V-2 flame rating, CSA-C22.2 No. 188 certified, RoHS compliant
• Compatible with pneumatic crimp tools, PCAM™ (Pre-Insulated Crimp Application Machine), and Crimpmaster™ hand tools
