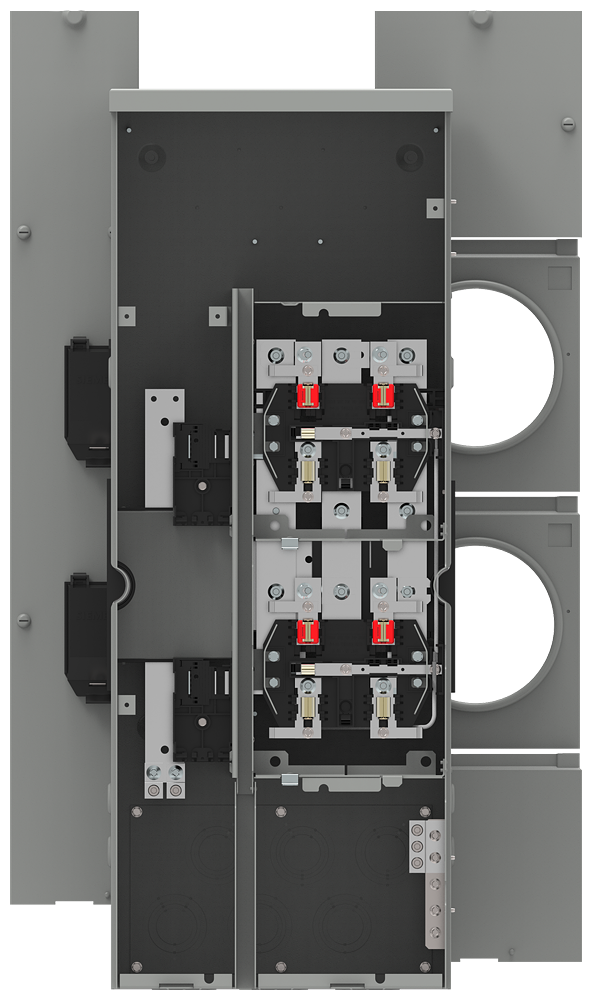

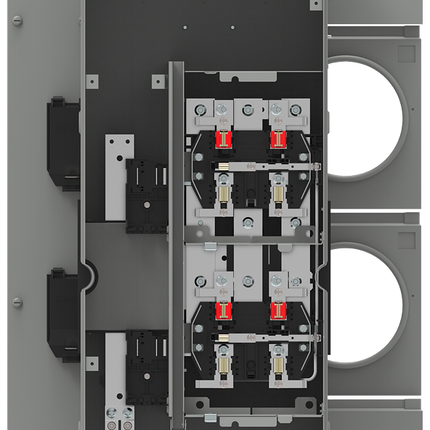

POWMOD WMM 125A 2G 3PH IN 1PH OUT RL HB Residential Meter Stack

The POWMOD WMM 125A Residential Meter Stack is designed for multi-family residential electrical distribution, providing a 3-phase, 4-wire incoming system with 1-phase, 3-wire outgoing configuration. This ringless type meter stack features 5 jaws and a horn bypass for enhanced safety and operational flexibility. It is suitable for outdoor installations and supports up to 125A maximum tenant breaker capacity, making it an effective solution for electrical distributors and switchgear suppliers focusing on reliable residential metering solutions.

Specifications

• Meter Positions per Stack: 2
• Breaker Provision: QP, QPH, HQP, MP-T, MP-HT, MP-MT
• Maximum AIC: 65kA
• Maximum Tenant Breaker: 125 Amps
• Dimensions (HxWxD): 34.31 in x 12.98 in x 7.61 in
• Weight: 57.2 lbs
• Material: G90 Galvanized Steel with ANSI 61 Paint
• UL Standard: UL 67 (File No. E27100)
• Voltage Ratings: Single Phase 120/240V AC max; Three Phase 120/208V or 240/120V AC max
• Outdoor Rating: NEMA 3R
• Made in USA
• Manufacturer: Siemens
• Manufacturer Part Number: WMM22125RJB

Features

• 5-jaw ringless type design with horn bypass for improved safety
• Two meter positions per stack for residential applications
• Exclusive QuickSystem™ features for ease of installation and labor savings
• Stainless steel swing latches and rivets for corrosion resistance
• Moveable neutrals and grounds to optimize wiring and reduce material costs
• Knockout plate for flexible wire pulling
• Compatible with a variety of tenant breakers including QP series

Downloads & Links

• Spec Sheet
