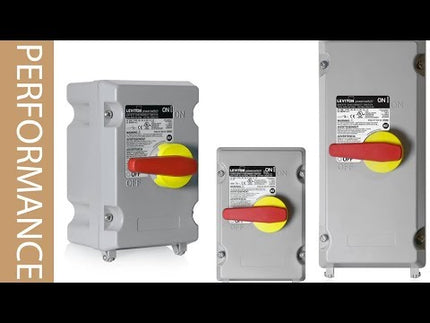

Powerswitch Safety Disconnect Switch - 60 Amp Non-Fused PowerSwitch Disconnect Switch

The Powerswitch Safety Disconnect Switch by Leviton is a 60 amp, 600 volt, non-fused disconnect switch designed for industrial electrical distribution and motor control applications. It features a non-metallic enclosure suitable for harsh environments, providing reliable electrical isolation and safety compliance for lighting solutions, wire and cable setups, and switchgear supplier requirements. This disconnect switch is engineered for use in food and beverage processing areas, meeting NSF hygiene standards and offering versatile installation options for electrical distributors.

Specifications

• Amperage: 60 amperes
• Voltage Rating: 600 VAC
• Dielectric Voltage: 1000 volts plus twice rated voltage for 1 minute
• Operating Temperature Range: -40¬∞C to 75¬∞C
• NEMA Rating: 250 (Types 3R, 4, 4X, 6, 6P, 12, 13)
• Ingress Protection: IP66, IP67, IP68, IP69, IP69K
• Material: Enclosure made from PBT and PC; handle with TPE overmold; stainless steel enclosure screws; silicone rubber gasket
• Mechanical Endurance: 20,000 operations (10,000 operation cycles)
• Electrical Endurance: Minimum 6,000 operating cycles at rated current and voltage
• Short Circuit Current Rating (SCCR): 200 kA with Type J fuse, 60 A fuse size
• UL and CSA Certified: UL60947-4-1A (Motor Disconnect), UL98, CSA C22.2 No. 4-04
• NSF 14159-1 Certified for hygiene in meat and poultry processing equipment
• Country of Origin: Mexico
• Product Weight: 4.79 lbs
• Manufacturer Part Number: LDS60-AX

Features

• Compact, non-metallic enclosure providing corrosion resistance and durability in washdown and harsh environments
• Overmolded handle designed for improved grip and durability, accommodating up to three padlocks for OSHA-compliant lockout/tagout procedures
• Captive, triple-head stainless steel cover screws for secure installation and maintenance
• Certified for submersible and high-pressure washdown environments with IP69K rating
• UV stabilized materials for outdoor and high-exposure applications
• Permanent rating markings and UL-compliant terminal identification for ease of installation and safety
• Compatible with auxiliary contacts and replacement handles for enhanced functionality
• Designed to reduce downtime by providing reliable disconnection in industrial settings
