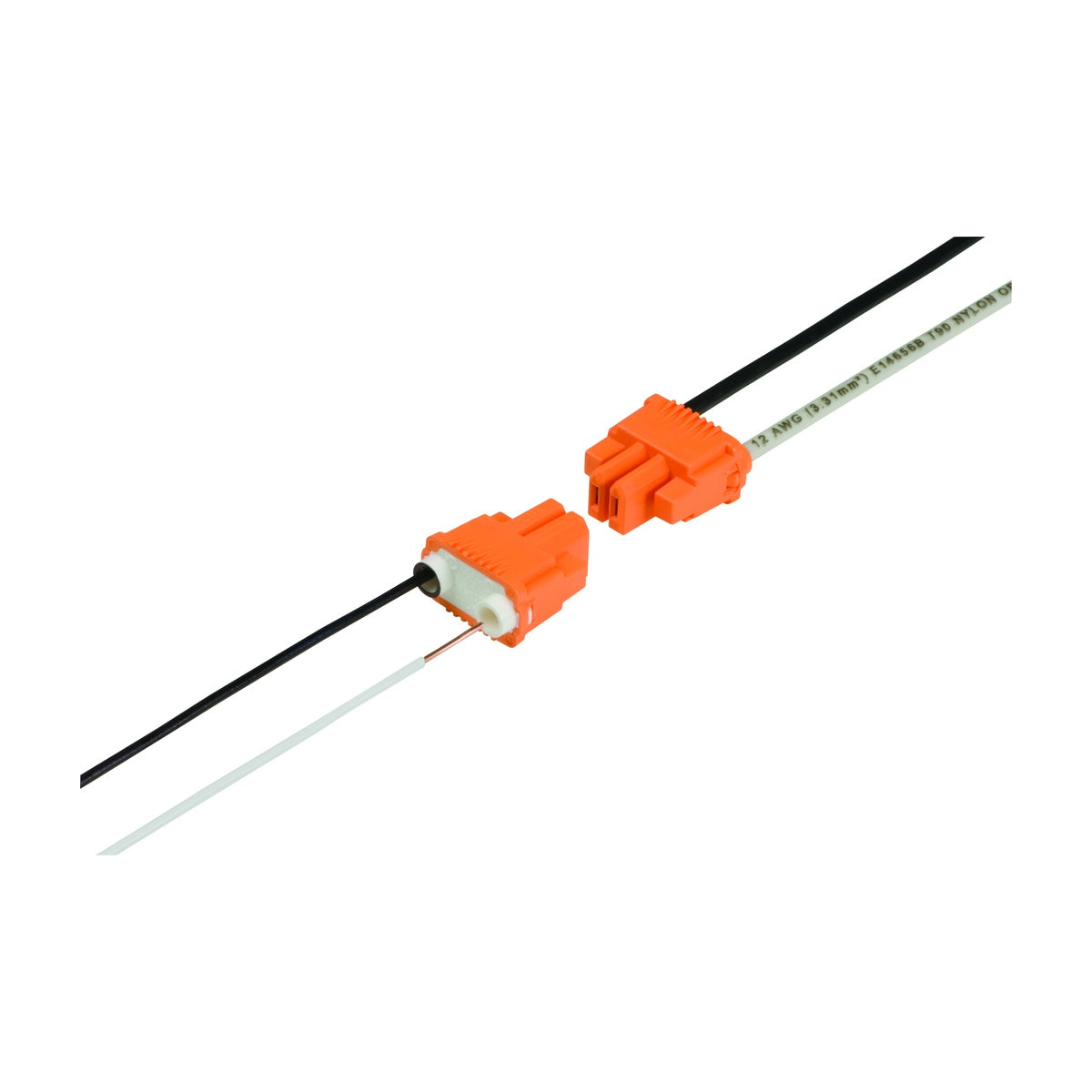

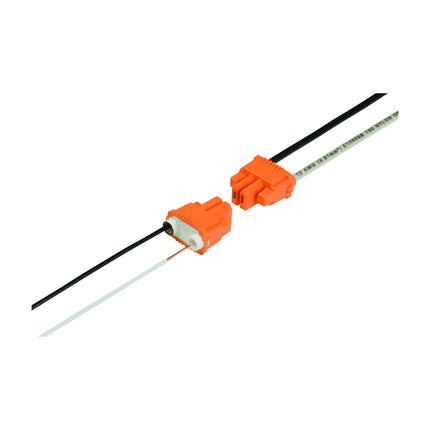

PowerPlug® Luminaire Disconnect, Model 102, 2-Wire – Electrical Connector for Lighting Solutions

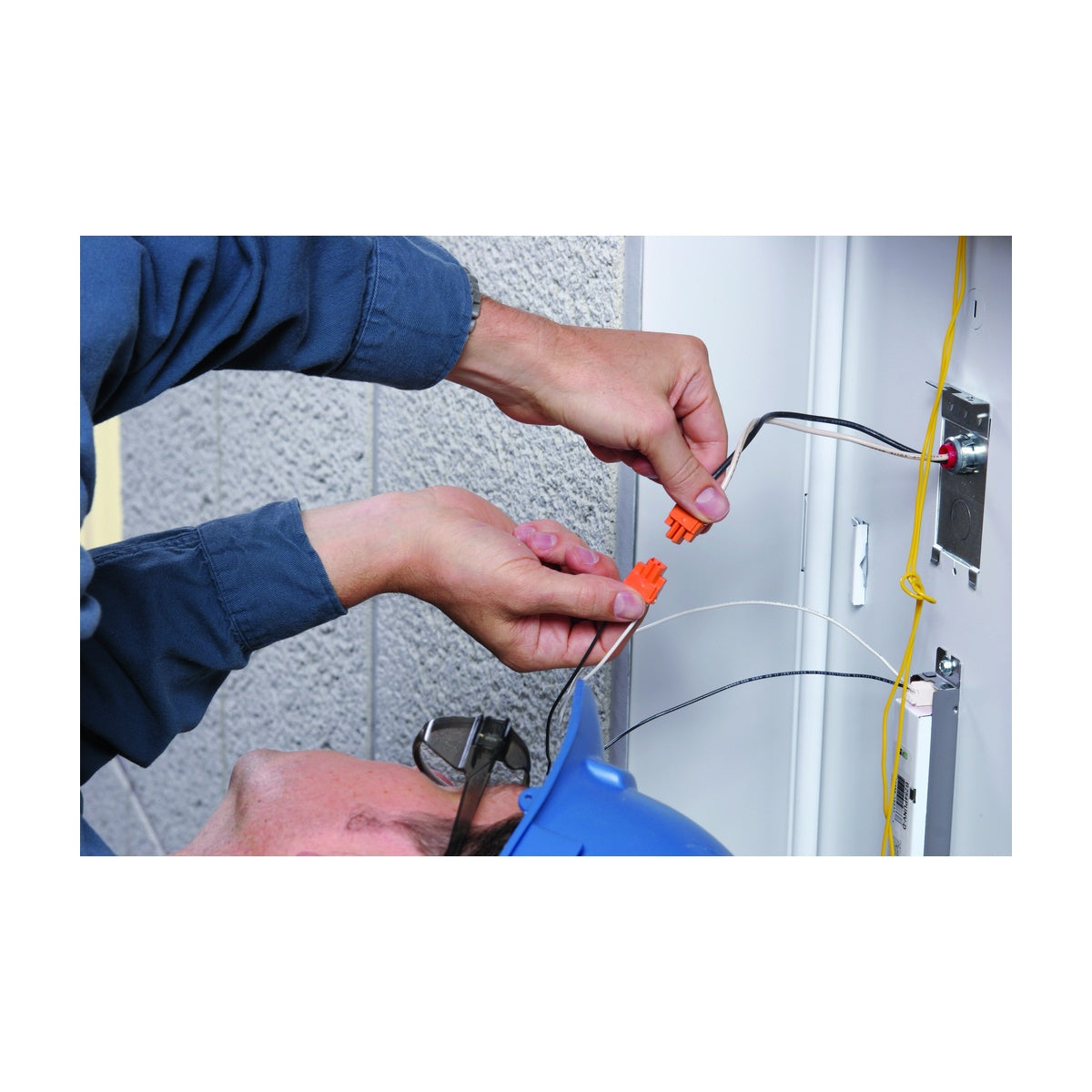

The PowerPlug® Luminaire Disconnect Model 102 is designed for safe and efficient disconnection of hot and neutral ballast wiring in 1-ballast fixture new installations and retrofits. It utilizes patented IDEAL push-in technology that quickly locks wires in place, reducing electrical shock hazards during ballast replacement. This connector meets UL and CSA finger-probe safety requirements and fits through 1/2-inch knockouts, making it ideal for electrical distributors and switchgear suppliers focusing on wire and cable and lighting solutions.

Specifications

• Application: For 1-Ballast Fixture New Installations and Retrofits
• Amperage Rating: 6 AMP
• Voltage Rating: 600 Volts Maximum
• Wire Range: Solid #12 – #18 AWG; Stranded #12 – #14 AWG (19 strands or less); Stranded Tin-Bonded #12 – #14 AWG (19 strands or less); #16 AWG (26 strands or less); #18 AWG (16 strands or less)
• Material: Nylon Housing, Copper Alloy Contacts
• Color: Orange
• Dimensions: Length 6.5 in, Width 4.25 in, Height 2.75 in
• Product Weight: 1.0270 lbs
• Manufacturer Part #: 30-382J

Features

• Patented push-in technology for quick and secure wire connections
• Safely disconnects hot and neutral ballast wiring to reduce shock hazards
• Both halves meet UL and CSA finger-probe safety standards
• Fits through 1/2-inch knockouts for easy installation
• Available in 2-pole, 3-pole, and 2-pole + ground models
• Low-profile design suitable for retrofit and OEM lighting applications
• Color-coded ends for ballast side (white) and line side (orange) identification
• Meets NEC and CEC code changes for non-residential fluorescent luminaires
