PowerPlug® Luminaire Disconnect, Model 102, 2-Wire, Jar of 150
SKU: #203940
Part: #30-352J
UPC: 783250667864
PowerPlug® Luminaire Disconnect, Model 102, 2-Wire, Jar of 150
SKU: #203940
Part: #30-352J
UPC: 783250667864
Total Price: $1.74 per each Sold in increments of 150 each
Description

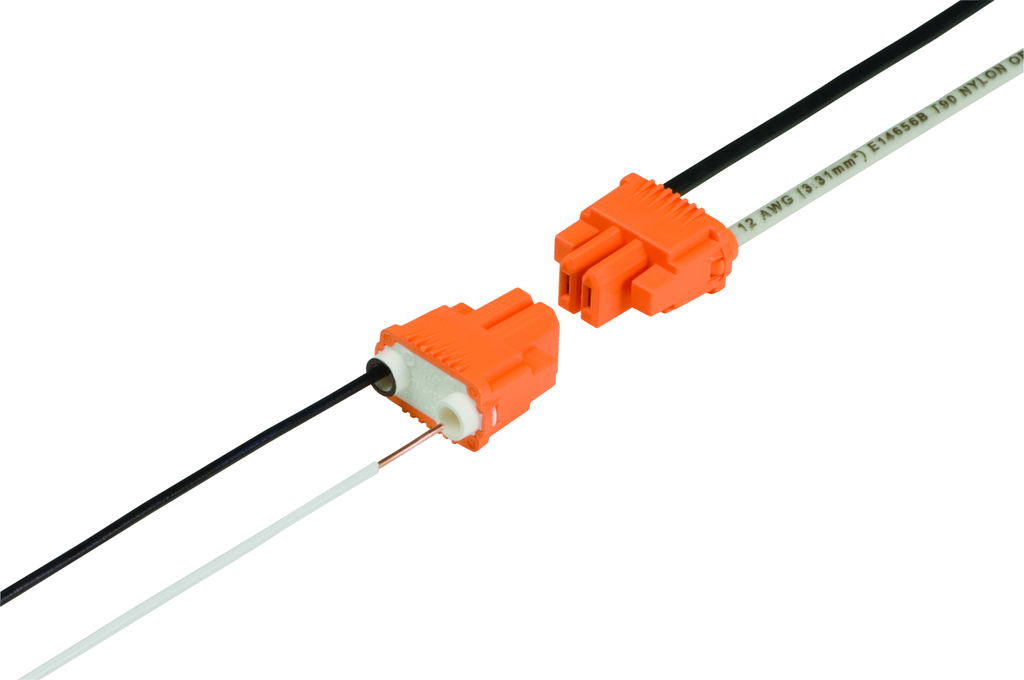

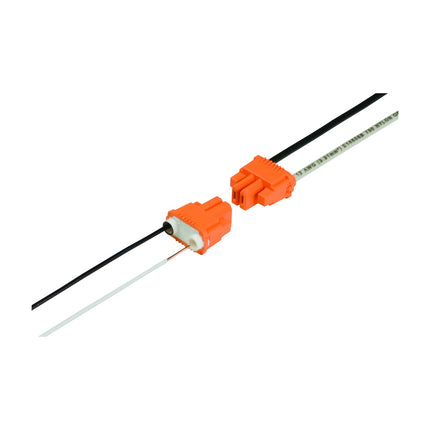

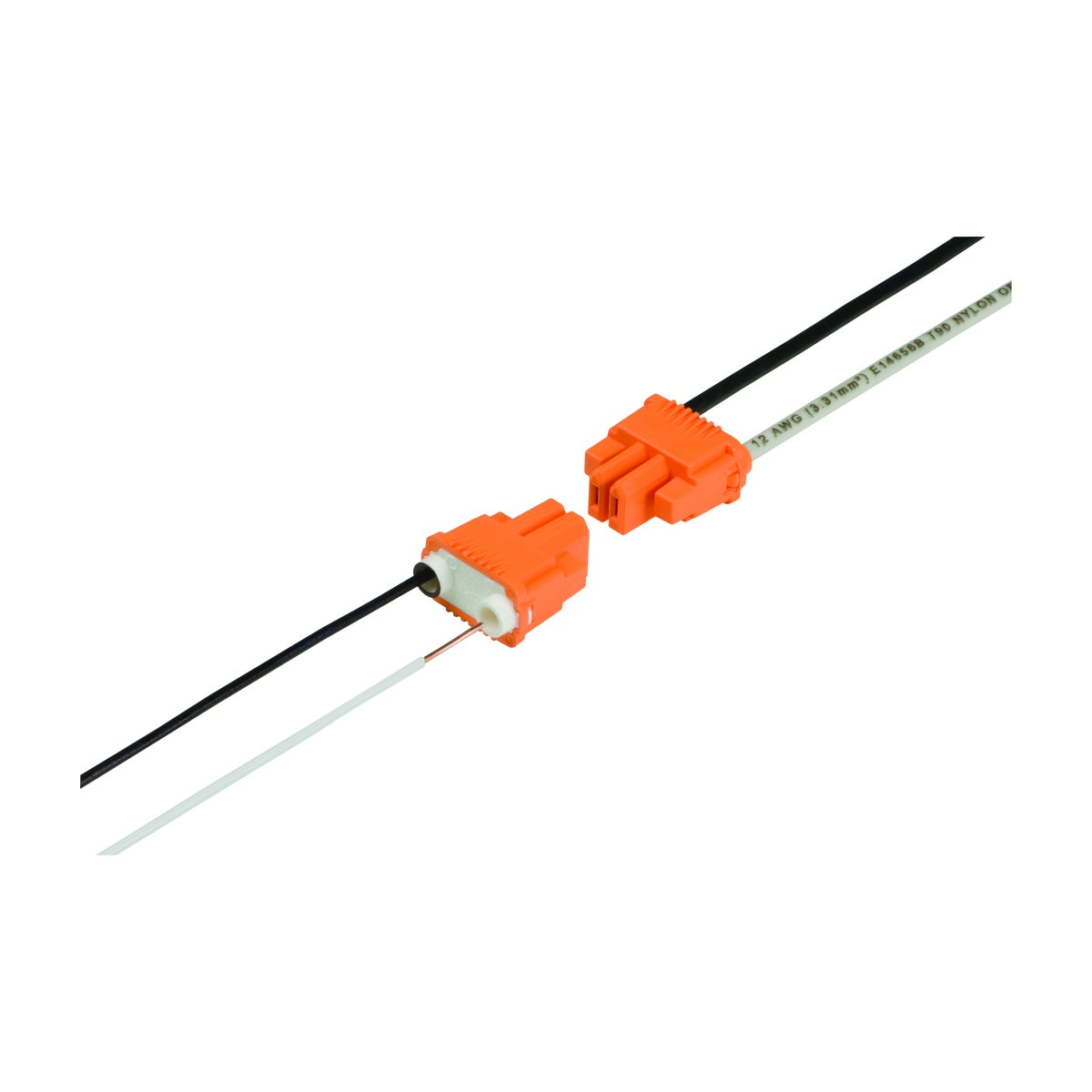

PowerPlug® Luminaire Disconnect, Model 102, 2-Wire, Jar of 150 - Luminaire Disconnect
The PowerPlug® Luminaire Disconnect Model 102 by IDEAL Industries is designed for safe and efficient disconnection of hot and neutral ballast wiring in 1-ballast fixture new installations and retrofits. Utilizing patented push-in technology, it quickly locks wires in place, reducing installation time and labor costs. This product meets UL and CSA finger-probe safety requirements, making it suitable for electrical distributors and lighting solutions providers focused on wire and cable and switchgear supply. Its compact design fits through 1/2-inch knockouts, supporting easy integration into lighting systems.
Specifications
- Application: For 1-Ballast Fixture New Installations and Retrofits
- Amperage Rating: 6 AMP
- Voltage Rating: 600 Volts Maximum
- Material: Nylon Housing, Copper Alloy Contacts
- Color: Orange
- Dimensions: 8.25 in (Length) x 5.75 in (Width) x 3.75 in (Height)
- Product Weight: 2.0550 lbs
- Wire Range Line Side: Solid #12–#18 AWG, Stranded #12–#14 AWG (19 strand or less), Stranded Tin-Bonded #12–#14 AWG (19 strand or less)
- Wire Range Ballast Side: #18 AWG solid, #16 AWG stranded (26 strand or less), #18 AWG stranded (16 strand or less)
- Manufacturer: IDEAL Industries
- Manufacturer Part #: 30-352J
Features
- Patented push-in technology for quick, secure wire connection
- Safely disconnects hot and neutral ballast wiring to reduce electrical shock hazard
- Meets UL and CSA 2459 finger-probe safety requirements
- Fits through 1/2-inch knockouts for easy installation
- Color-coded ends for line side (orange) and ballast side (white) identification
- Low-profile design suitable for retrofit and OEM lighting applications
- Allows switching and dimming applications
- Wire insertion side is for one-time use only, enhancing safety
- Compatible with copper conductors only; not for use with aluminum wiring
