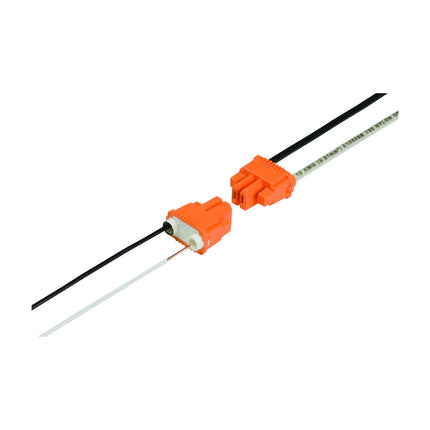

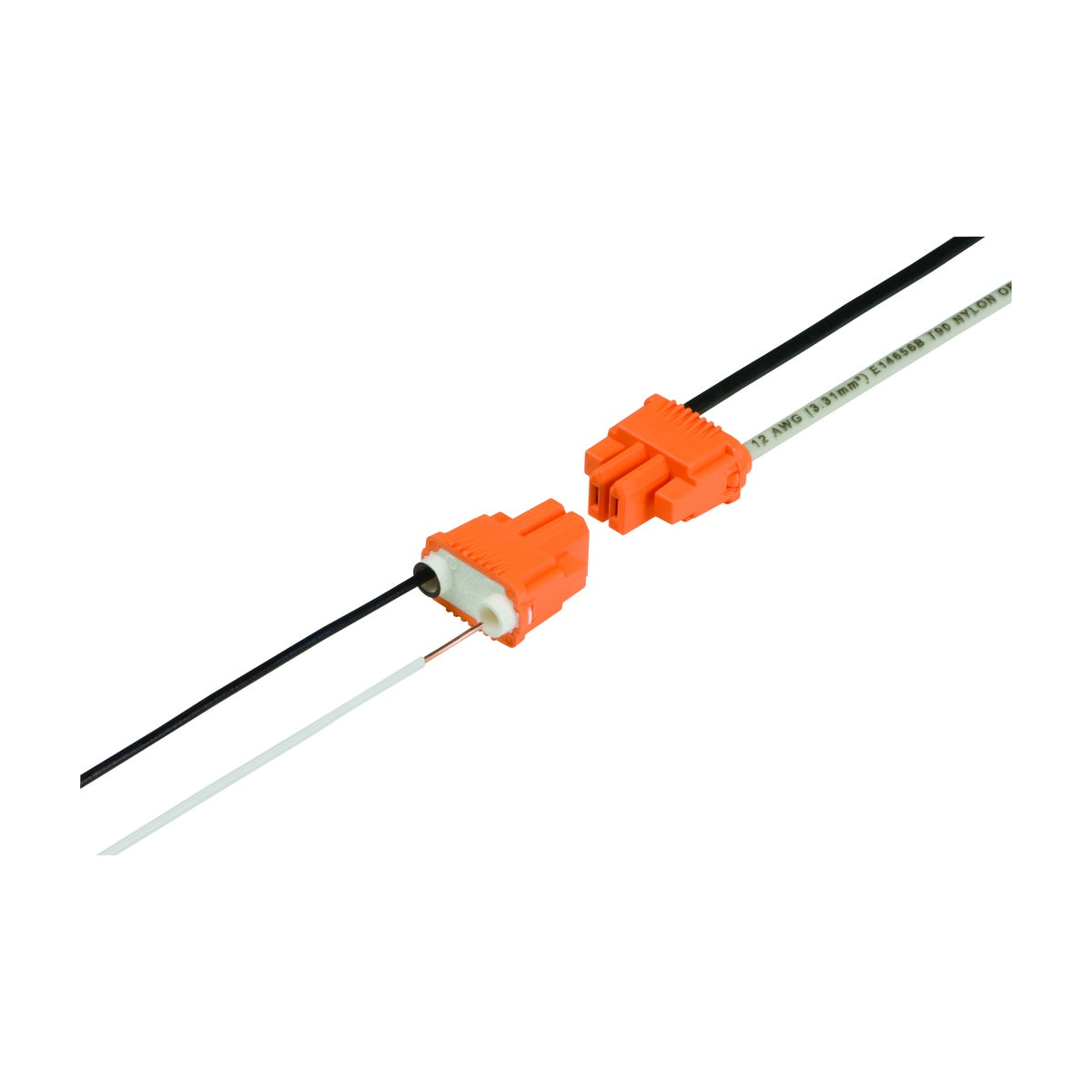

PowerPlug® Luminaire Disconnect, Model 102, 2-Wire, Card of 25
SKU: #203996
Part: #30-372
UPC: 783250656820
PowerPlug® Luminaire Disconnect, Model 102, 2-Wire, Card of 25
SKU: #203996
Part: #30-372
UPC: 783250656820
Total Price: $2.17 per each Sold in increments of 25 each
Description
PowerPlug® Luminaire Disconnect, Model 102, 2-Wire - Electrical Connector for Lighting Solutions
The PowerPlug® Luminaire Disconnect Model 102 is designed for 1-ballast fixture new installations and retrofits, providing a safe and efficient connection solution for lighting applications. This electrical connector features patented IDEAL push-in technology that quickly locks wires in place, facilitating faster installation and reducing labor time for electrical distributors and switchgear suppliers. It ensures safe disconnection of hot and neutral ballast wiring while meeting UL and CSA finger-probe safety requirements. The compact design fits through 1/2-inch knockouts, making it suitable for retrofit or OEM lighting applications.
Specifications
- Amperage Rating: 6 AMP
- Voltage Rating: 600 Volts Maximum
- Wire Range: Solid #12–#18 AWG, Stranded #12–#14 AWG (19 strand or less), Stranded Tin-Bonded #12–#14 AWG (19 strand or less), #16 AWG (26 strand or less), #18 AWG (16 strand or less)
- Material: Nylon Housing, Copper Alloy Contacts
- Dimensions: Length 6.75 in, Width 5 in, Height 1.62 in
- Color: Orange
- Product Weight: 0.4170 lbs
- UPC: 783250656820
- Manufacturer: IDEAL Industries
- Manufacturer Part #: 30-372
- Application: For 1-Ballast Fixture New Installations and Retrofits
Features
- Patented push-in technology for quick, secure wire connections
- Safely disconnects hot and neutral ballast wiring to reduce electrical shock hazards
- Meets UL and CSA finger-probe safety standards (UL 2459 and CSA 2459)
- Fits through 1/2-inch knockouts for easy installation in lighting fixtures
- Color-coded ends for ballast side (white) and line side (orange) identification
- Low-profile design suitable for retrofit or OEM lighting applications
- Allows for switching and dimming applications
- Rated for a limited number of current-interrupting operations
- Accepts only copper conductors; not for use with aluminum wiring
