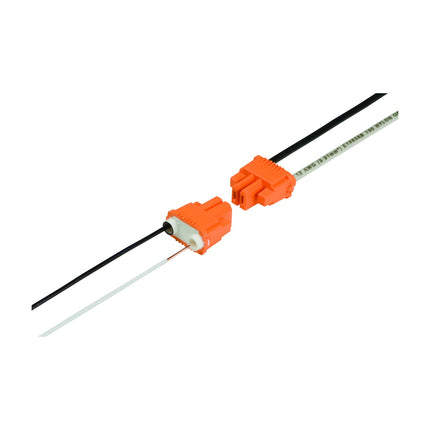

PowerPlug® Luminaire Disconnect, Model 102 - Electrical Connector for Lighting Solutions

The PowerPlug® Luminaire Disconnect Model 102 is designed for quick and safe disconnection of hot and neutral ballast wiring in new 1-ballast fixture installations and retrofits. Ideal for electrical distributors and switchgear suppliers, this connector utilizes patented IDEAL push-in technology to lock wires securely, reducing installation time and labor costs. It complies with NEC and CEC code changes for non-residential fluorescent luminaires and meets UL and CSA finger-probe safety requirements, enhancing safety during ballast replacement.

Specifications

• Application: For 1-Ballast Fixture New Installations and Retrofits
• Amperage Rating: 6 AMP
• Voltage Rating: 600 Volts Maximum
• Wire Range: Solid #12–#18 AWG; Stranded #12–#14 AWG (19 strands or less); Stranded Tin-Bonded #12–#14 AWG (19 strands or less); #16 AWG (26 strands or less); #18 AWG (16 strands or less)
• Material: Nylon Housing, Copper Alloy Contacts
• Color: Orange
• Dimensions: 15 in (Length) x 11 in (Width) x 6 in (Height)
• Product Weight: 0.0100 lbs
• Fits through 1/2-inch knockout
• Manufacturer Part #: 30-102

Features

• Patented push-in technology quickly locks wires in place for secure connections

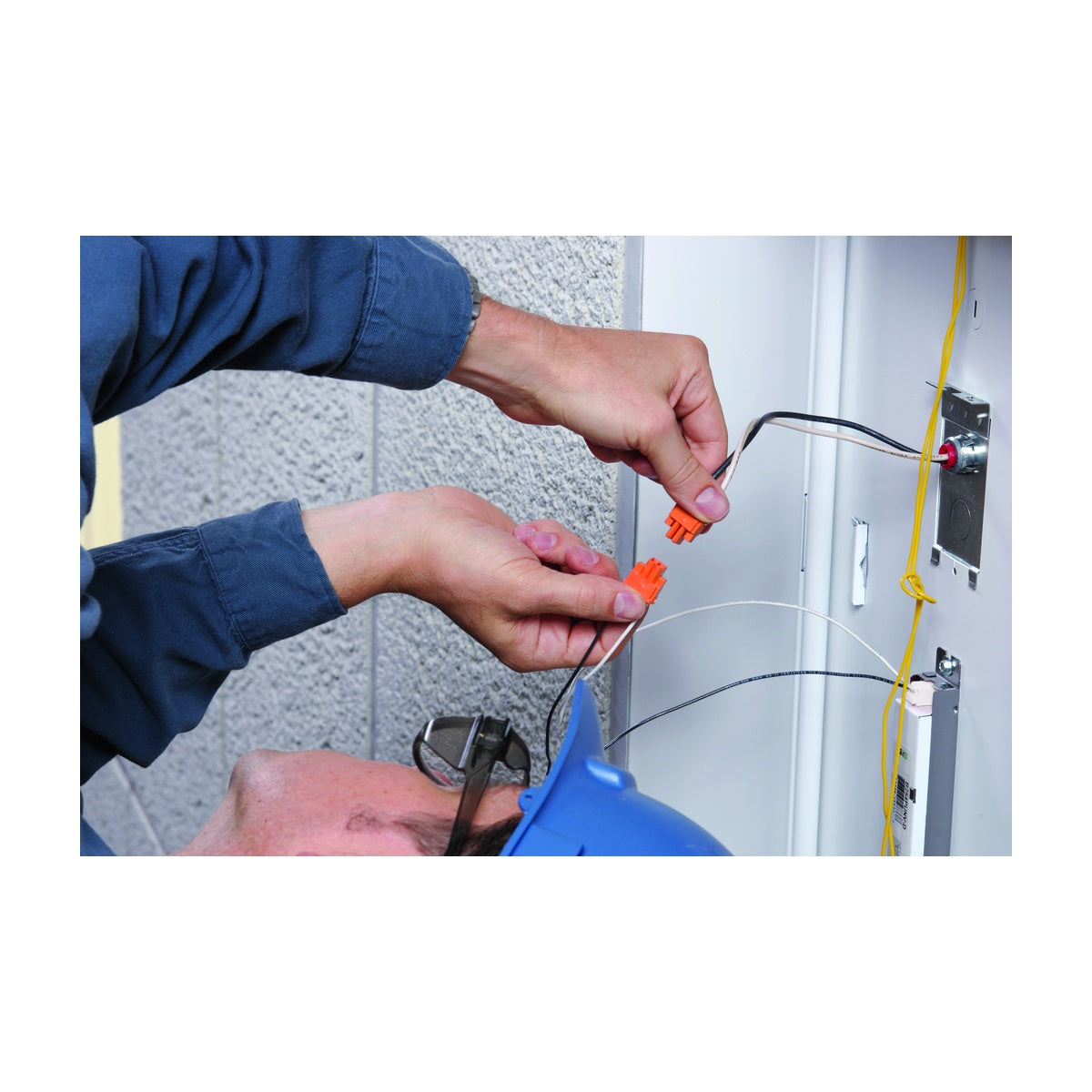

• Safely disconnects hot and neutral ballast wiring to reduce electrical shock hazard
• Both connector halves meet UL and CSA finger-probe safety requirements
• Low-profile design suitable for retrofit or OEM lighting applications

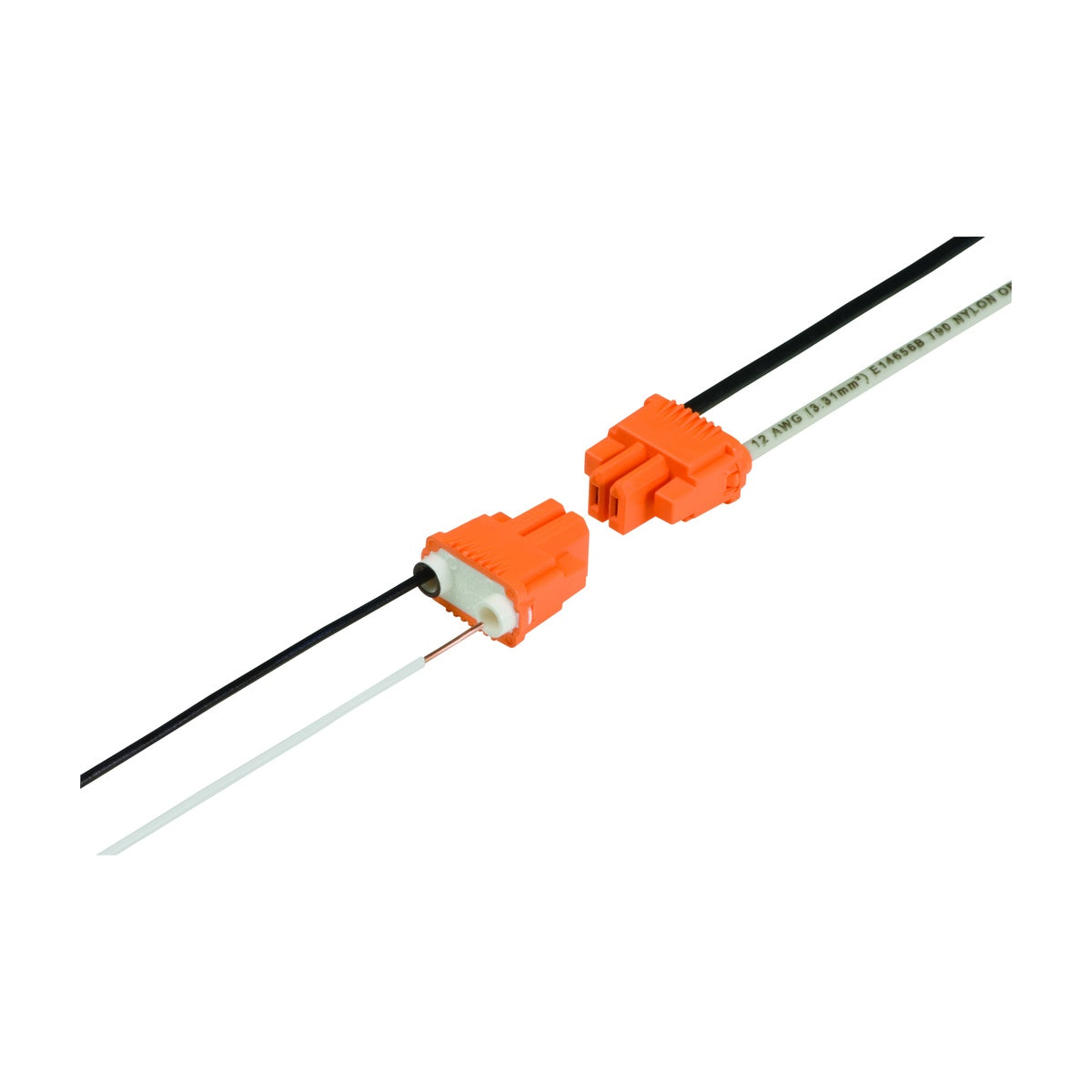

• Color-coded ends: ballast side (white) and line side (orange) for easy identification
• Disconnect halves pull apart safely and easily without pulling on wires
• Accepts solid #18 AWG ballast wires and solid #12–#18 AWG line side wires
• Meets NEC and CEC code changes for non-residential fluorescent luminaires
