POWER-STUD+ SD1 1/4 X 2-1/4
SKU: #48727
Part: #7402SD1-PWR
UPC: 075352775890
POWER-STUD+ SD1 1/4 X 2-1/4
SKU: #48727
Part: #7402SD1-PWR
UPC: 075352775890
Total Price: $0.30 per each Sold in increments of 1 each
Next day delivery
Description

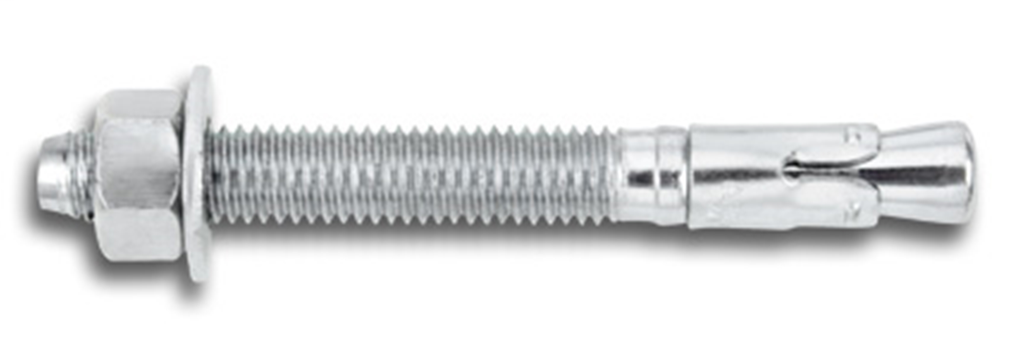

POWER-STUD+ SD1 1/4 X 2-1/4 Wedge Expansion Anchor
The POWER-STUD+ SD1 1/4 x 2-1/4 is a fully threaded, torque-controlled wedge expansion anchor designed for reliable performance in cracked and uncracked concrete. Manufactured with a zinc plated carbon steel body and expansion clip, this anchor is suitable for use in normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. It is ideal for structural connections, safety-related attachments, protective barriers, tension zone applications, and seismic or wind loading conditions. The product is supplied with a nut and washer for ease of installation and secure fastening.
Specifications
- Anchor Size: 1/4" x 2-1/4"
- Thread Length: 1-1/4"
- Material: Zinc plated carbon steel body with expansion clip
- Base Materials: Normal-weight concrete, sand-lightweight concrete, concrete over steel deck, grouted concrete masonry (CMU)
- Weight: 0.0360 lbs
- Manufacturer Part #: 7402SD1-PWR
- UPC: 075352775890
- Included Hardware: Nut and washer
Features
- Torque-controlled wedge expansion for consistent performance
- Fully threaded design for secure anchorage
- ICC-ES ESR-2818 and ESR-2966 approved for cracked and uncracked concrete
- Suitable for seismic and wind loading (Category 1 Anchors)
- Designed for use in a variety of concrete base materials
- Includes nut and washer for complete installation
