Power Protection Devices Receptacle – GFCI Commercial Grade 20A 125V

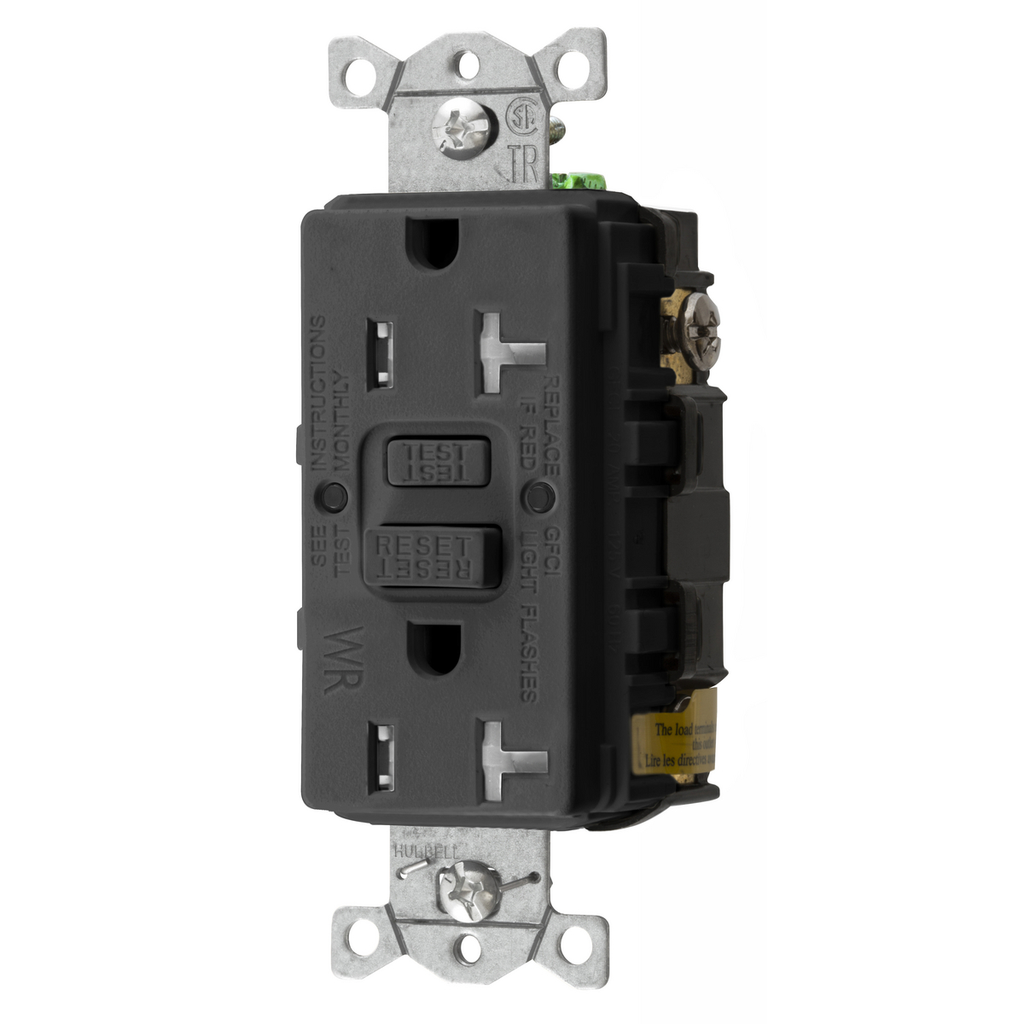

This Bryant Power Protection Devices receptacle is a commercial grade Ground Fault Circuit Interrupter (GFCI) designed for electrical distributors and lighting solutions requiring reliable power protection. It operates at 20 amperes and 125 volts with a 2-pole, 3-wire grounding configuration, suitable for indoor dry environments unless additional protection is applied. The device features self-test functionality to ensure ongoing safety compliance and is compatible with standard mounting screws and terminal screw connections.

Specifications

• Application: Commercial Grade
• Amperage: 20 amperes
• Voltage: 125 volts
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• NEMA Rating: 5-20R
• Material: Thermoplastic/Composite
• Color: Black
• Width: 3.1 in
• Mounting: Mounting Screws
• Connection: Terminal Screws
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 1.9 lbs
• Country of Origin: China
• Manufacturer Part #: GFTWRST20BK
• Manufacturer: Bryant

Features

• Self-Test GFCI functionality for automatic ground fault monitoring
• Power indicator and trip indicator for visual status
• Designed for commercial grade applications with 20A 125V rating
• 2-pole, 3-wire grounding configuration ensures proper grounding and safety
• Durable thermoplastic/composite construction for long-lasting performance
• Compatible with standard mounting screws and terminal screw connections for straightforward installation
• Black color for aesthetic integration in commercial environments
