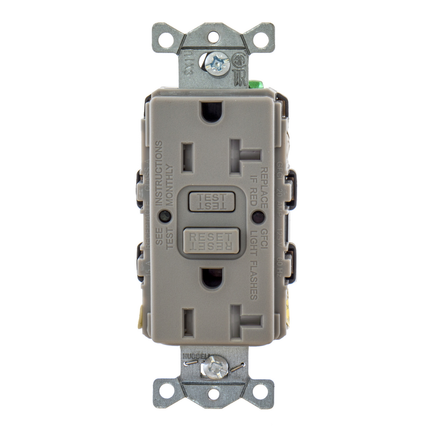

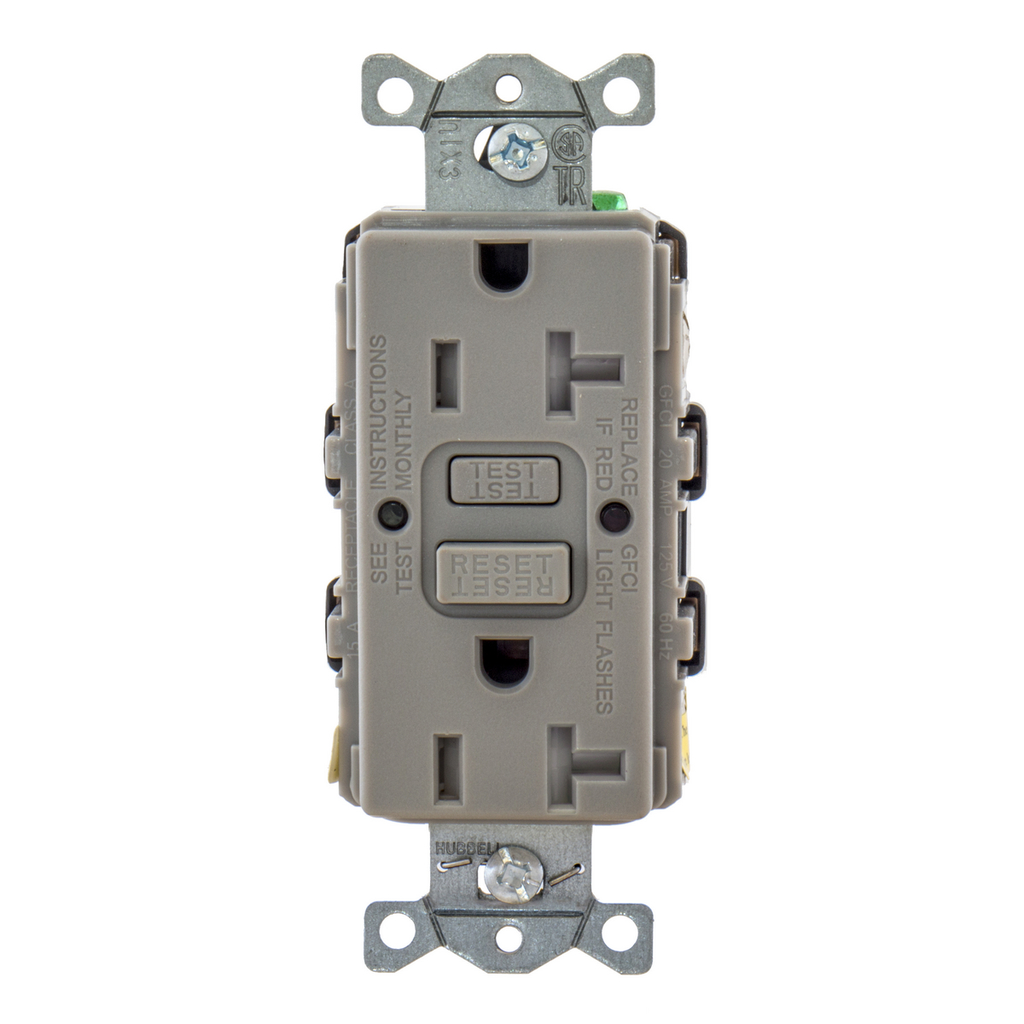

Power Protection Devices, Receptacle, Self Test, GFCI, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray

This commercial grade self-test GFCI receptacle by Hubbell Wiring Device-Kellems provides reliable ground fault protection for indoor dry environments. Designed for electrical distributors and lighting solutions providers, it features patented AUTOGUARD® continuous self-test technology that automatically monitors GFCI functionality and disconnects power if protection is lost. The device supports 20 amperes current at 125 volts with a 2-pole, 3-wire grounding configuration and a NEMA 5-20R rating, suitable for commercial electrical installations requiring enhanced safety and compliance with UL 943 standards.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: GFTRST20GY
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• NEMA Rating: 5-20R
• Material: Thermoplastic/Composite
• Color: Gray
• Width: 2.048 in
• Mounting: Mounting Screws
• Connection: Terminal Screws
• Product Weight: 1.9510 lbs
• Application: Commercial Grade
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China

Features

• Patented AUTOGUARD® continuous self-test technology automatically monitors GFCI protection every 30 seconds and disconnects power if protection is lost
• Clear LED indicators: green for power, red for trip/ground fault, flashing red for end-of-life
• Protection against line and load reversal—no power to receptacle face if miswired
• Durable thermoplastic nylon housing with high impact and UV resistance
• Internal back wiring clamp and guide pocket for secure and quick termination
• Installation ease with auto-grounding clip, captive mounting screws, and breakoff tabs for OEM raised covers

Downloads & Links

• AUTOGUARD¬Æ Self Test Ground Fault Receptacles
• Sales Drawing Asset Reference
• Warranty Document Asset Reference
• Wiring Device Solutions for Strategic Manufacturing Facilities
• Pulp & Paper Solutions
• GFTRST20GY AutoCAD Drawing
• Catalog Page Asset Reference 2
• Spec Sheet
• Catalog Page Asset Reference 1
• Catalog Full Asset Reference
• Installation Manuals Asset Reference
