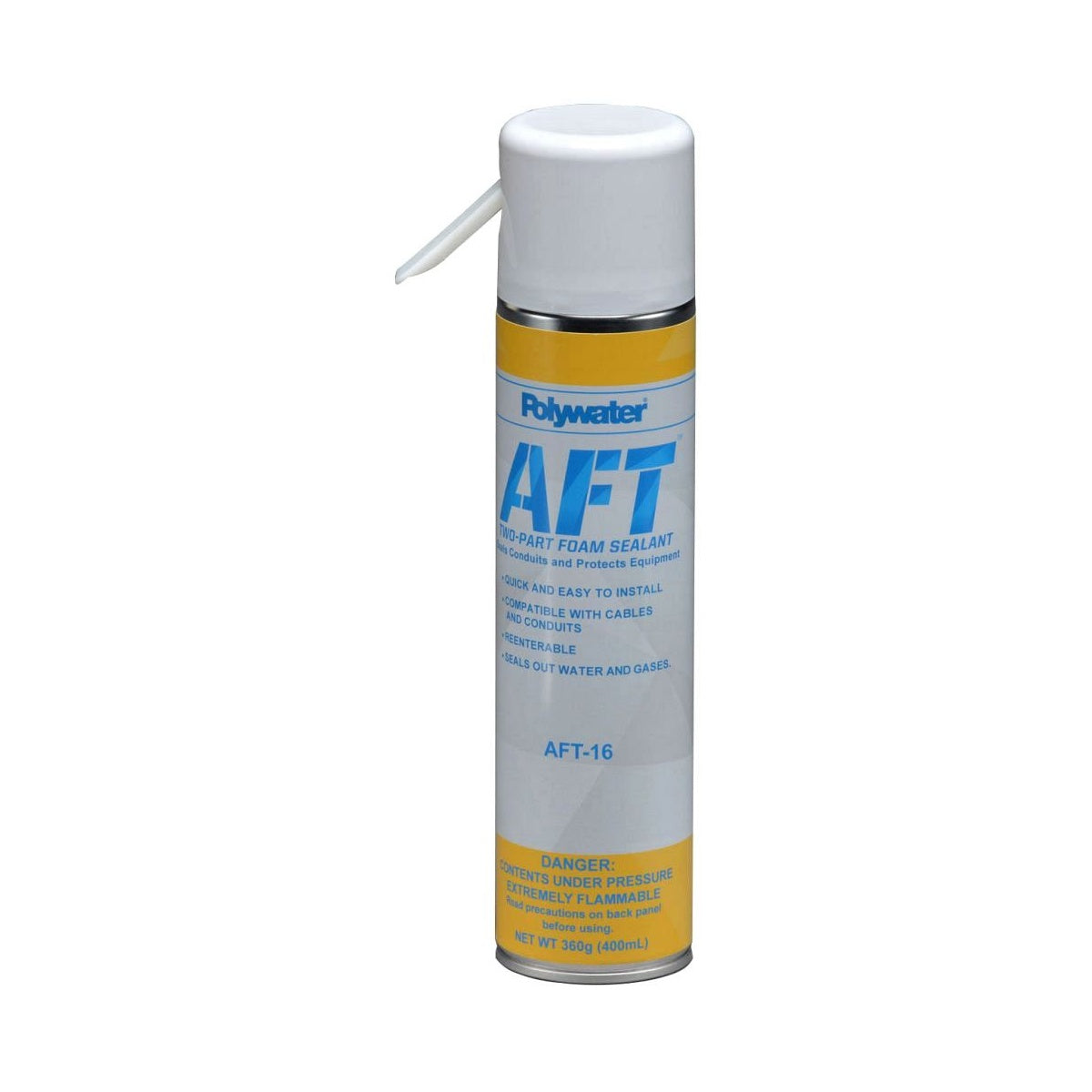

Polywater® AFT™ Aerosol Foam Sealant – Electrical Conduit Sealant

Polywater® AFT™ Aerosol Foam Sealant is a two-part, closed-cell urethane foam designed to block water, gas, and contaminants in electrical and telecommunication conduits. It provides a durable, airtight, and watertight seal that protects cables and equipment from moisture, dust, insects, rodents, and gases. This foam sealant is compatible with common cable insulation and conduit materials, making it suitable for use by electrical distributors, wire and cable suppliers, and switchgear suppliers requiring reliable conduit sealing solutions.

Specifications

• Manufacturer Part #: AFT-16P4
• Package: 1 ‚Äì 16-oz. can; 2 actuators (4 units per case)
• Seal Strength ‚Äì Water: Holds 11 feet (3.4 m) continuous water head pressure
• Seal Strength ‚Äì Air: Holds 2 psi (0.14 bar) air pressure for 48 hours
• In Service Temperature Range: -20¬∞F to 200¬∞F (-30¬∞C to 95¬∞C)
• Compressive Strength: 25 psi (0.17 N/mm¬≤) ASTM D1621
• Tensile Strength: 97 psi (0.67 N/mm¬≤) ASTM D1623
• Water Absorption: Less than 4% ASTM D2842
• VOC Content: 0 g/L (contains exempt propellant)
• Compatibility: Compatible with common cable insulation and jacket materials without affecting cable components
• Fire Rating: UL Recognized, UL 94 Class HBF fire retardant
• Compliance: Meets 2020 NEC Articles 225.27, 230.8, 300.5(G), 300.7(A), 300.50(F) on raceway seals; complies with TIA-758-B standards

Features

• Quick and Easy Installation: Application time under 2 minutes with aerosol actuator
• Reenterable: Sealant can be mechanically removed for cable replacement
• Durable: Wide temperature service range and resistant to sunlight and UV exposure
• Chemically Resistant: Resists gasoline, oils, dilute acids and bases, and most unsaturated hydrocarbons
• Multiple-Use Can: Suitable for multiple seals in various conduit sizes and cable configurations
• Strong Adhesion: Excellent adhesion to conduits and cable jackets ensuring reliable sealing and cable pullout strength
• Non-Toxic Once Cured: Solid, closed-cell foam that is safe after curing
• Environmentally Resistant: Maintains seal integrity in damp or wet conduit conditions

Downloads & Links

• Spec Sheet
• Safety Data Sheet
