Polaris™Ins Multi-Tap 500 8 Port DSE
SKU: #304724
Part: #IPLD500-8
UPC: 662381925060
Polaris™Ins Multi-Tap 500 8 Port DSE
SKU: #304724
Part: #IPLD500-8
UPC: 662381925060
Total Price: $160.72 per each Sold in increments of 1 each
Description

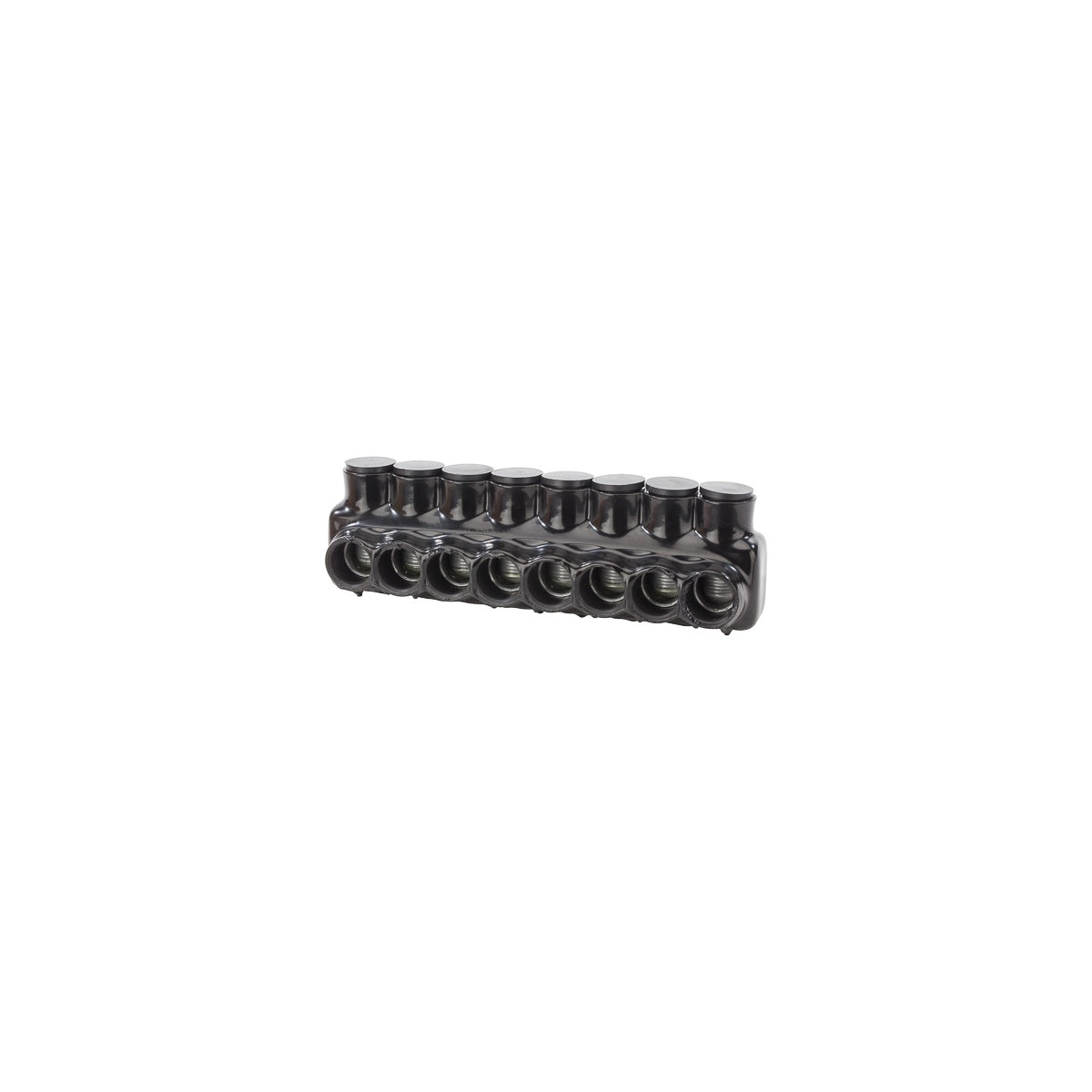

Polaris™Ins Multi-Tap 500 8 Port DSE Electrical Connector
The Polaris™Ins Multi-Tap 500 8 Port Dual Side Entry connector is designed for wire termination applications, suitable for use by electrical distributors and switchgear suppliers requiring reliable multi-cable connections. This insulated connector supports Class B and C wire types, accommodating wire sizes from 500 MCM to 4 AWG. It is ideal for installations needing durable, dual-sided wire entry and high ampacity connections in lighting solutions and wire and cable distribution.
Specifications
- Application: Wire Termination
- Number of Conductors: 8
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 9.82 in x 2.83 in x 2.91 in
- Environmental Conditions: Rated for 90°C
- Product Weight: 2.09 lbs
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLD500-8
Features
- Wire entry ports on both sides allow access from either side
- Eliminates the need for cover and taping
- High dielectric strength plastisol insulation
- Molded for precise fit with removable access plugs over hex screws
- Removable plugs to close unused entry ports
- Abrasion, chemical, and UV resistant
- Will not support combustion
- UL Listed 486B for copper or aluminum Class B and C conductors
- Rated 600V, cold temperature rated to -45°C
- Dual rated for use with copper and aluminum cables
- Not recommended for fine-stranded, flexible wire
