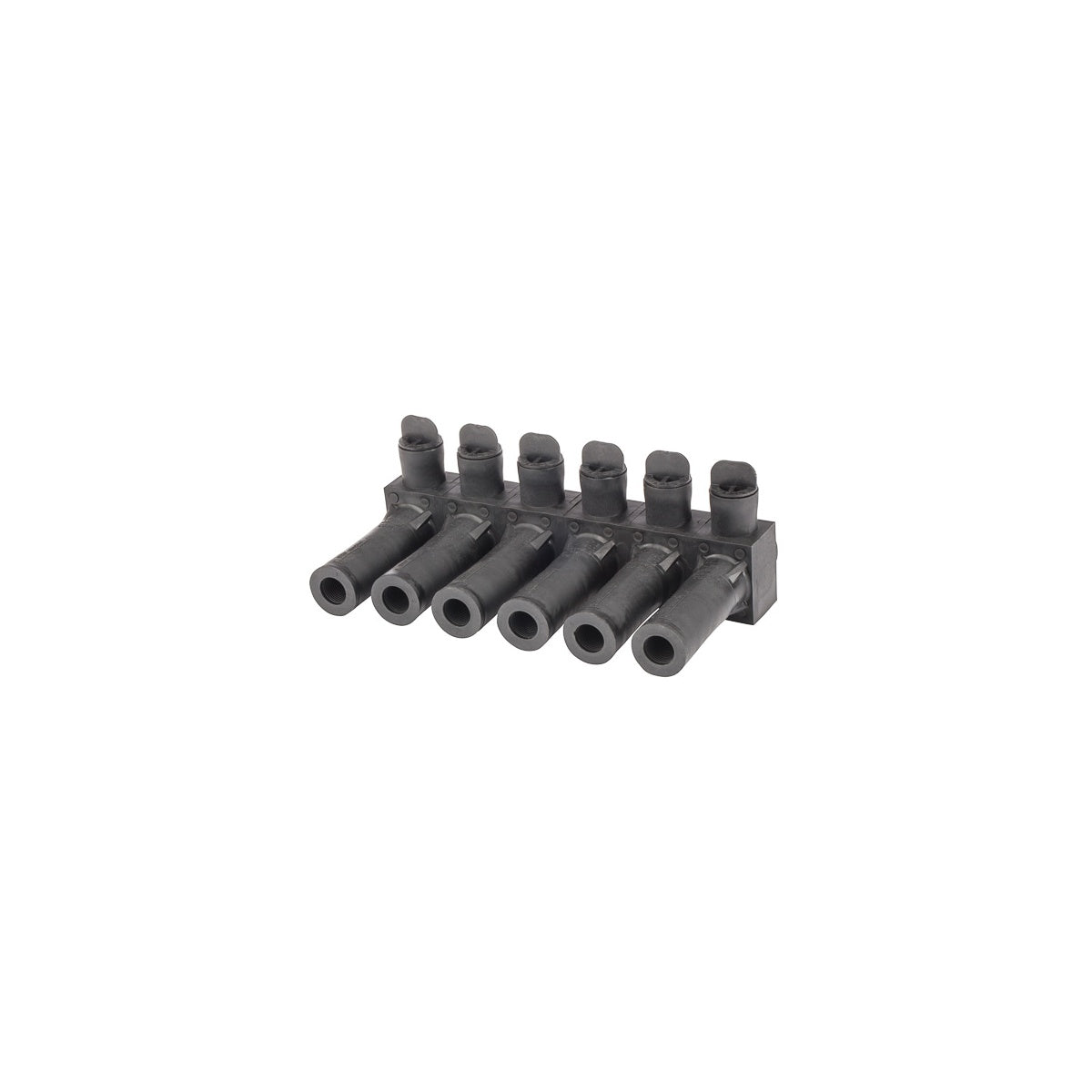

Polaris™ Submersible Pedestal Connector 600 MCM Wire Termination

The Polaris™ Submersible Pedestal Connector is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. Manufactured by NSI Industries, this connector is suitable for use in demanding environments requiring durable and submersible electrical components. It is ideal for electrical distributors and switchgear suppliers needing robust connectors for underground or direct bury installations.

Specifications

• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum (6061-T6 aluminum alloy)
• Finish: EPDM Rubber Insulated
• Color: Black
• Dimensions (L x W x H): 9.94 in x 5.43 in x 3.79 in
• Environmental Conditions: Rated for 90 °C
• Product Weight: 2.5820 lbs
• Manufacturer Part #: ISPB600-6
• UPC: 662381789396

Features

• Manufactured from high strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
• Encapsulated in EPDM rubber with nominal thickness of 125 mils for high dielectric strength and abrasion resistance
• Radial tipped set-screws reduce conductor strand damage and accommodate a wide range of conductor sizes
• UV resistant and submersible design suitable for direct bury applications
• Pre-filled with oxide inhibitor to ensure long-term conductivity and corrosion resistance
• Will not support combustion
