Description

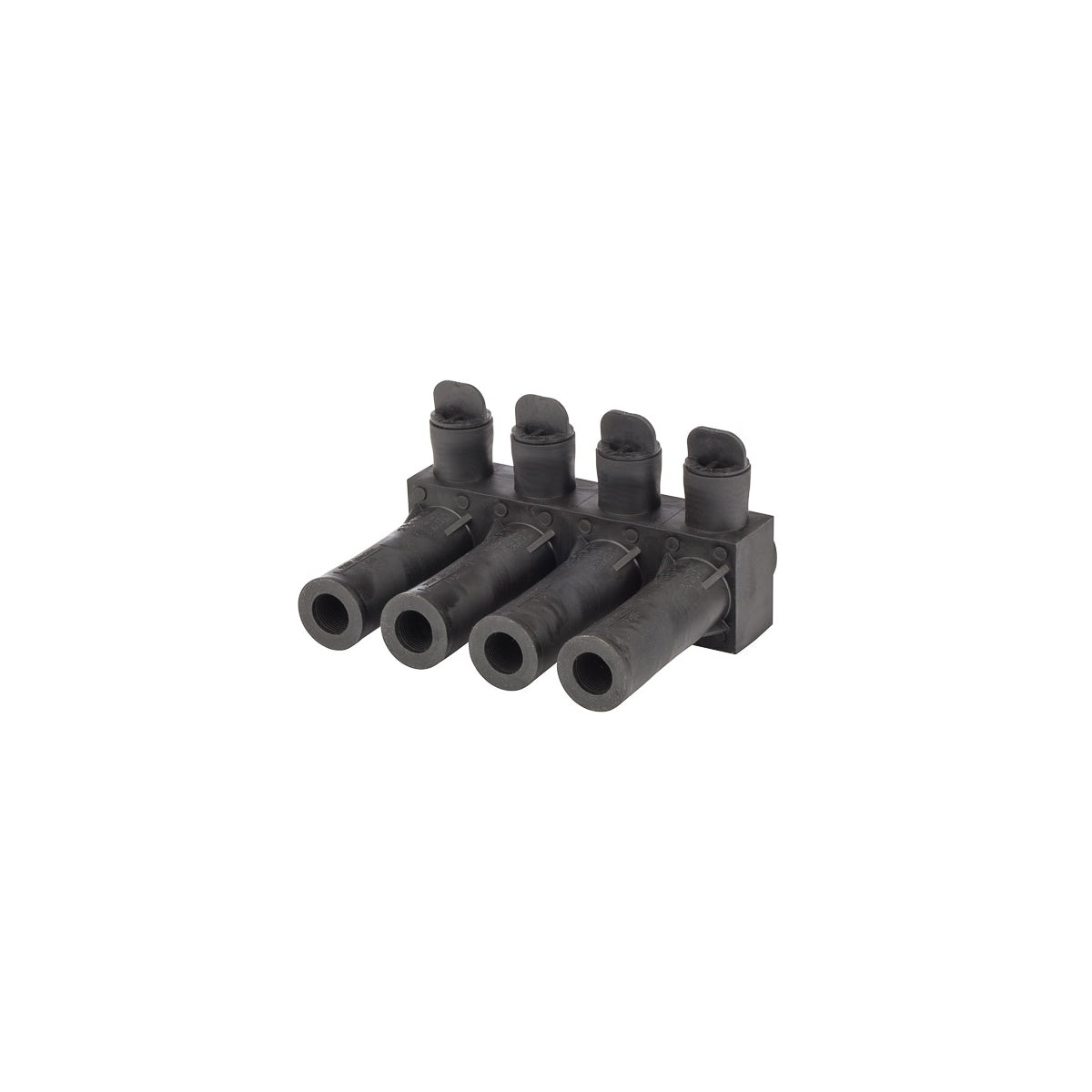

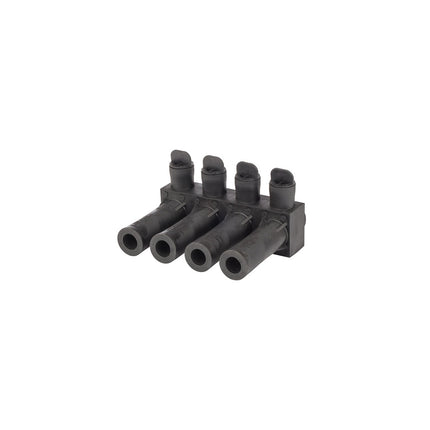

Polaris™ Submersible Pedestal Connector 600 MCM - Wire Termination
The Polaris™ Submersible Pedestal Connector is designed for wire termination applications, providing reliable electrical connections for wire and cable in submersible environments. Manufactured by NSi Industries, this connector is suitable for electrical distributors and switchgear suppliers requiring durable lighting solutions and wire termination components. It supports Class B & C wire types and is rated for use with copper and aluminum cables up to 600 MCM - 12 AWG.
Specifications
- Manufacturer: NSi Industries
- Manufacturer Part #: ISPB600-4
- Application: Wire Termination
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum (6061-T6 alloy)
- Finish: EPDM Rubber Insulated
- Color: Black
- Dimensions (L x W x H): 6.56 in x 5.43 in x 3.79 in
- Environmental Conditions: Rated to 90 °C
- Product Weight: 1.9190 lbs
- Voltage Rating: 600 V
- Temperature Rating: -45 °C to 90 °C (Cold temperature rated)
- Wire Range: 600 MCM - 12 AWG
Features
- Manufactured from high-strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
- Radial tipped set-screws reduce conductor strand damage and accommodate a range of conductor sizes in a single connector
- Encapsulated in EPDM rubber insulation with nominal thickness of 125 mils, providing high dielectric strength
- Abrasion and chemical resistant
- UV resistant and submersible design suitable for direct bury applications
- Will not support combustion
- Pre-filled with oxide inhibitor for enhanced corrosion protection
