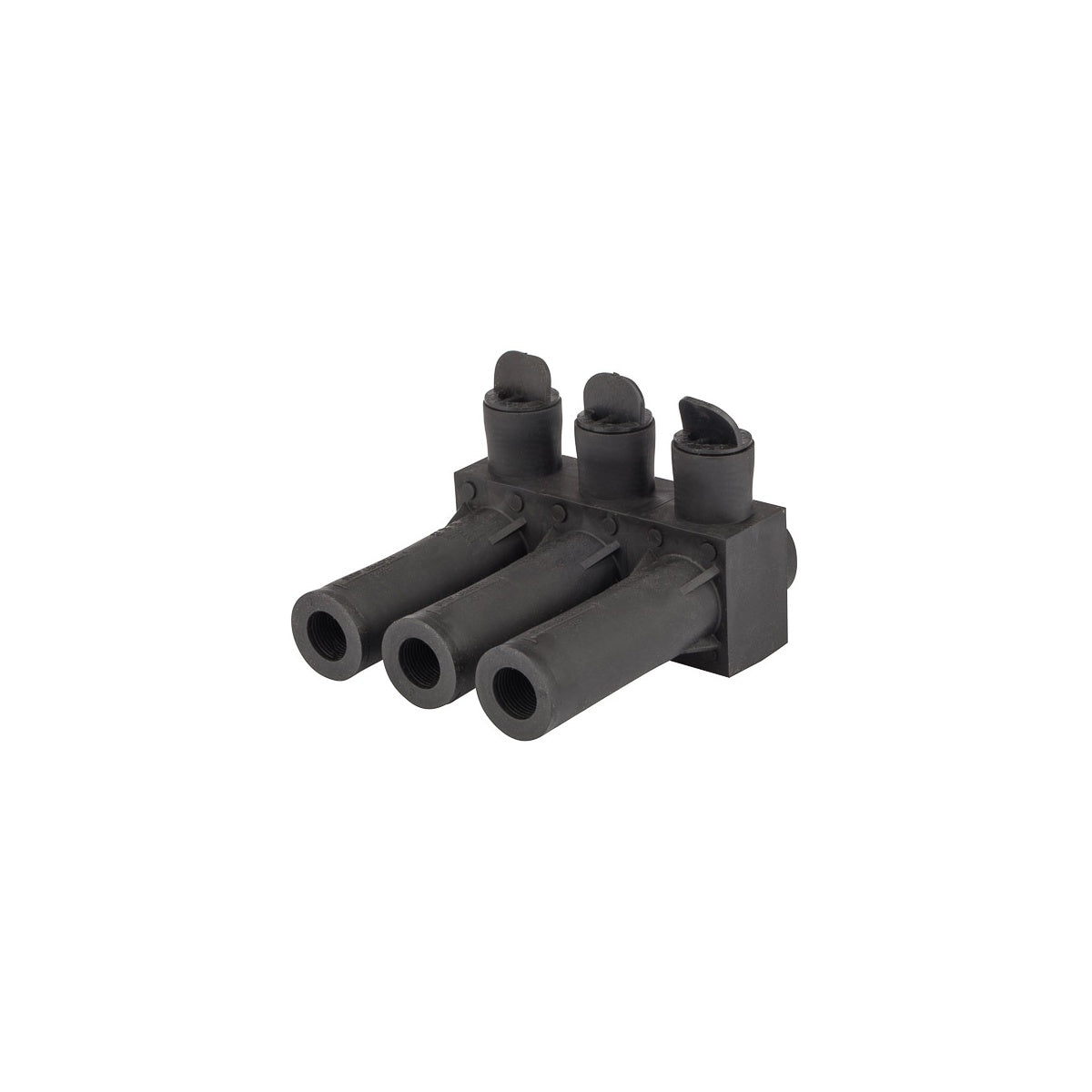

Polaris™ Submersible Pedestal Connector 600 MCM - Wire Termination

The Polaris™ Submersible Pedestal Connector is a direct bury, pre-insulated connector designed for wire termination applications. It is suitable for use with copper and aluminum cables ranging from 600 MCM to 12 AWG, supporting Class B & C wire types. This connector is engineered for submersible and outdoor environments, providing reliable electrical connections with high mechanical strength and environmental resistance. It is ideal for electrical distributors and switchgear suppliers requiring durable and efficient cable termination solutions in harsh conditions.

Specifications

• Application: Wire Termination
• Material: Aluminum (6061-T6 alloy)
• Finish: EPDM Rubber Insulated
• Color: Black
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90 °C
• Dimensions (L x W x H): 4.87 in x 5.43 in x 3.79 in
• Product Weight: 1.2560 lbs
• Voltage Rating: 600 V
• Temperature Rating: 90 °C (Cold temperature rated to -45 °C)
• Manufacturer Part #: ISPB600-3

Features

• Manufactured from high strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
• Radial tipped set-screws reduce conductor strand damage and accommodate multiple conductor sizes in one connector
• Encapsulated in EPDM rubber with a nominal thickness of 125 mils providing high dielectric strength
• Abrasion, chemical, and UV resistant for durability in outdoor and submersible applications
• Will not support combustion
• Pre-filled with oxide inhibitor for enhanced corrosion protection
