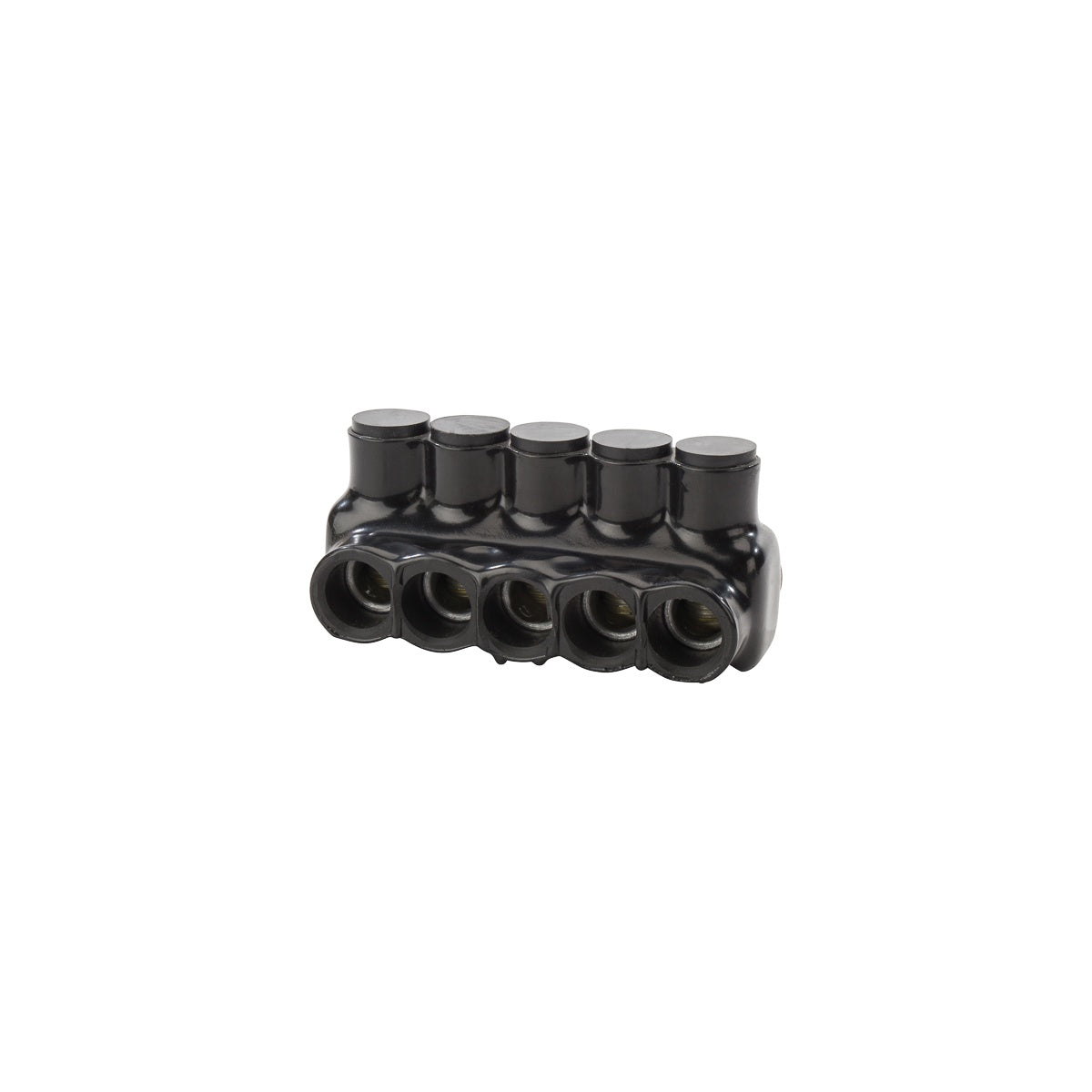

Polaris™ Multi-Tap 350 5 Port Connector – Wire Termination Solutions

The Polaris™ Multi-Tap 350 5 Port connector by NSI Industries is designed for reliable wire termination in electrical distribution and lighting solutions. It supports wire sizes from 350 MCM to 6 AWG and features dual-sided entry ports for versatile wiring access. This insulated multi-conductor connector is suitable for Class B & C wire types and provides a secure, code-compliant connection for both copper and aluminum cables, making it ideal for use by electrical distributors and switchgear suppliers.

Specifications

• Application: Wire Termination
• Number of Conductors: 5
• Number of Poles: 1
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 5.62 in x 2.41 in x 2.61 in
• Product Weight: 0.96 lbs
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90 °C
• Manufacturer Part Number: IPLD350-5B

Features

• Dual-sided wire entry ports allow access from either side, enhancing installation flexibility.
• Pre-insulated with high-dielectric strength plastisol for electrical safety and durability.
• Molded for precise fit with removable access plugs over hex screws for secure connections.
• Supplied with removable plugs to close unused entry ports.
• Abrasion, chemical, and UV resistant for long-term performance in dry locations.
• UL Listed 486B wire connector, rated for 600V and 90 °C operating temperature.
• Compatible with copper and aluminum cables; not intended for fine-stranded or flexible wire.
