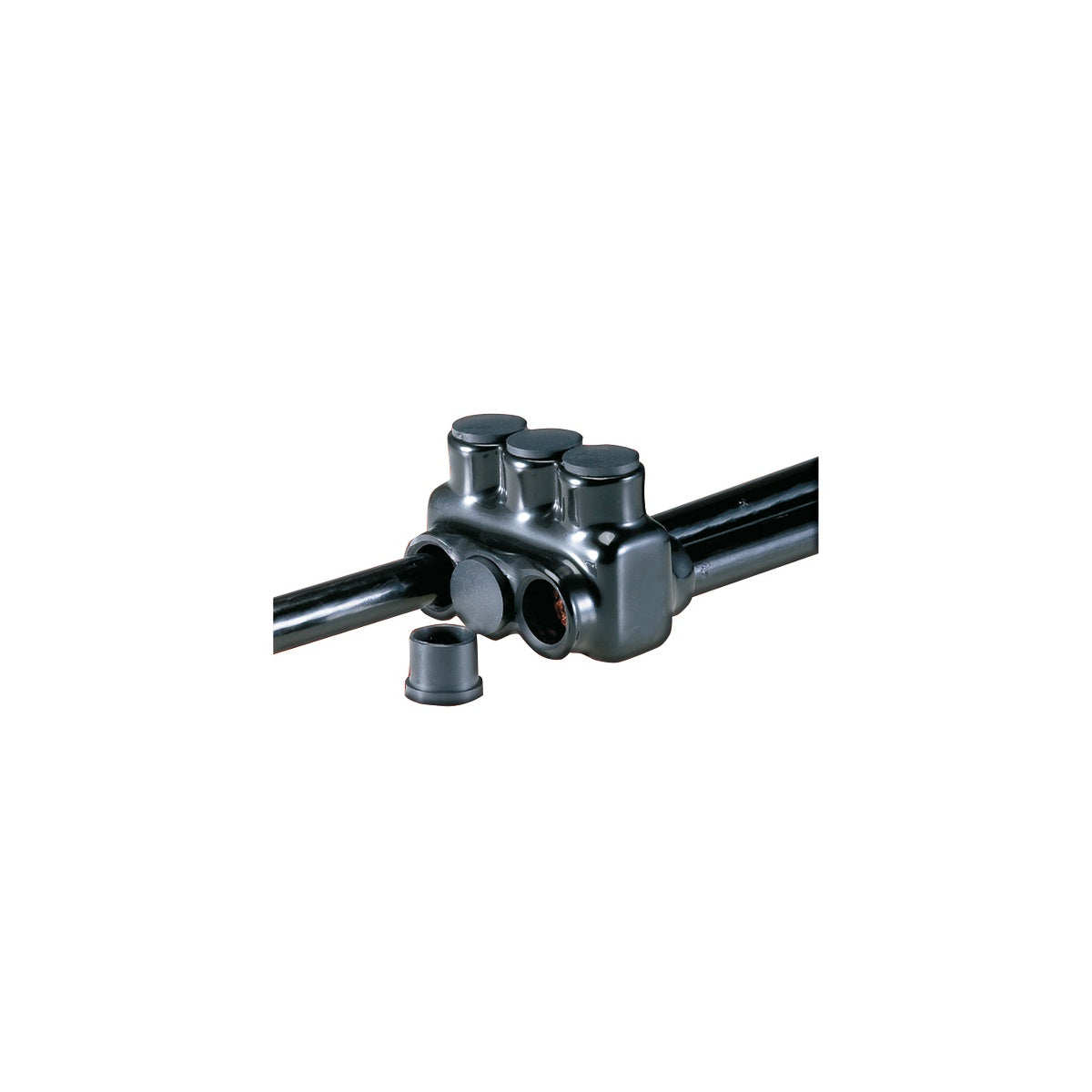

Polaris™ Multi-Tap 250 3 Port Wire Termination Connector

The Polaris™ Multi-Tap 250 3 Port is a pre-insulated, multi-conductor connector designed for wire termination applications. It facilitates reliable electrical connections for wire and cable systems, suitable for electrical distributors and switchgear suppliers requiring durable and safe wiring solutions. The connector supports dual-sided wire entry, enhancing installation flexibility in lighting solutions and other electrical distribution systems.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: 90 °C
• Dimensions (L x W x H): 2.93 in x 2.28 in x 2.18 in
• Product Weight: 0.3940 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: IPLD250-3B
• UL Listed: 486B Wire Connector (Dry location)
• Temperature Rating/Voltage: 90 °C, 600 V
• Wire Range: 250 MCM - 6 AWG

Features

• Wire entry ports on both sides allow access from either side
• Eliminates the need for cover and taping
• Insulated with high-dielectric strength plastisol for electrical safety
• Molded for precise fit with removable access plugs over hex screws
• Supplied with removable plugs to close unused entry ports
• Abrasion and chemical resistant
• UV resistant
• Will not support combustion
