Polaris™ Mount Ins Multi-Tap 750 3 Port
SKU: #305001
Part: #IPLMD750-3
UPC: 662381946010
Polaris™ Mount Ins Multi-Tap 750 3 Port
SKU: #305001
Part: #IPLMD750-3
UPC: 662381946010
Total Price: $226.51 per each Sold in increments of 1 each
Description

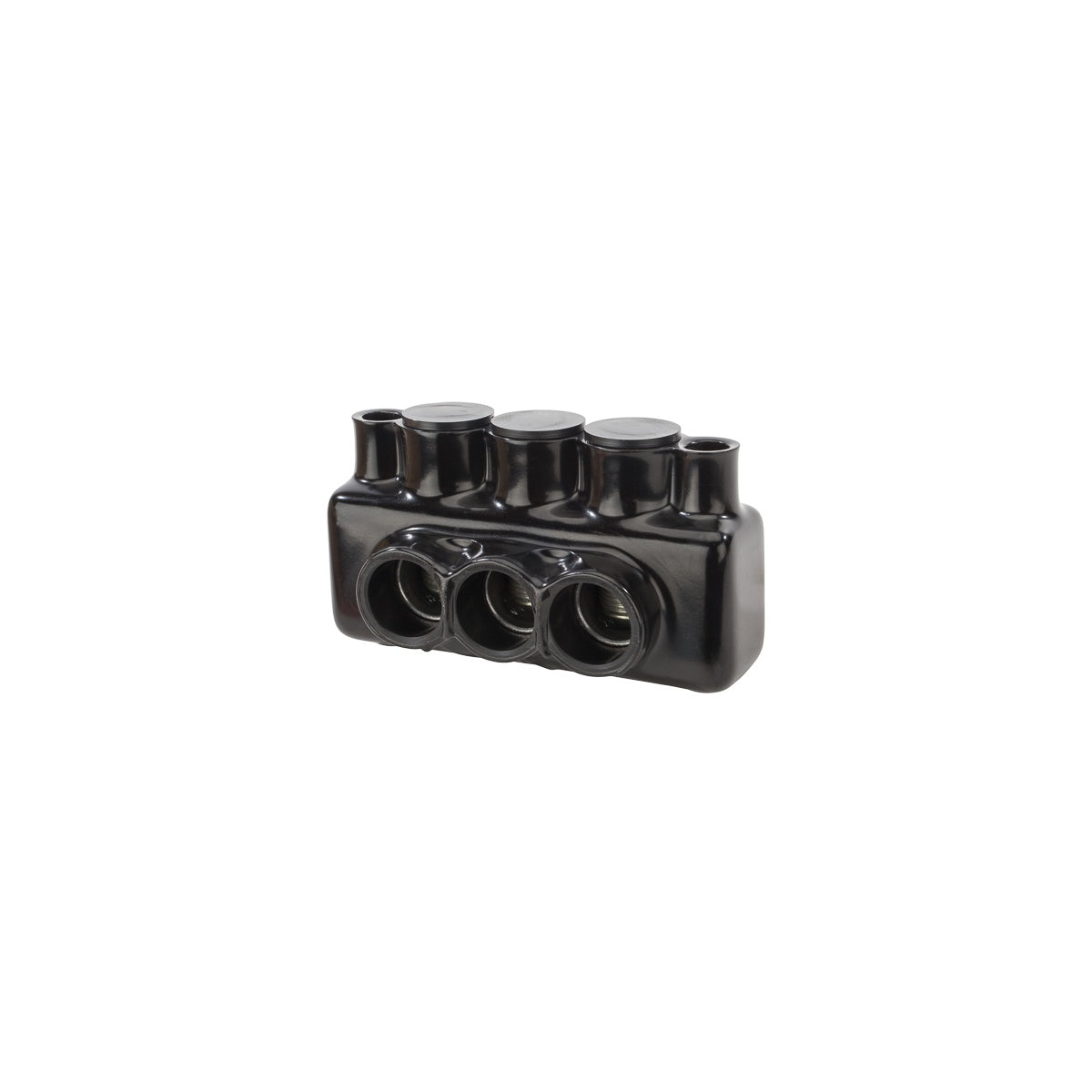

Polaris™ Mount Ins Multi-Tap 750 3 Port Pre-Insulated Connector
The Polaris™ Mount Ins Multi-Tap 750 3 Port connector is designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. This connector supports multi-conductor wiring with mounting holes for secure installation and dual-sided wire entry, ideal for use in dry locations and compatible with Class B & C wire types.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 3
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90 °C
- Dimensions (L x W x H): 6.32 in x 3.41 in x 3.54 in
- Product Weight: 2.3 lbs
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLMD750-3
Features
- Wire entry ports on both sides allow access from either side
- Removable access plugs close unused entry ports
- Mounting holes at each end enable direct isolated mounting to troughs, panels, or wireways
- High-dielectric strength plastisol insulation
- Molded for precise fit with removable plugs over hex screws
- Eliminates the need for cover and taping
- Abrasion, chemical, and UV resistant
- Non-combustible design
