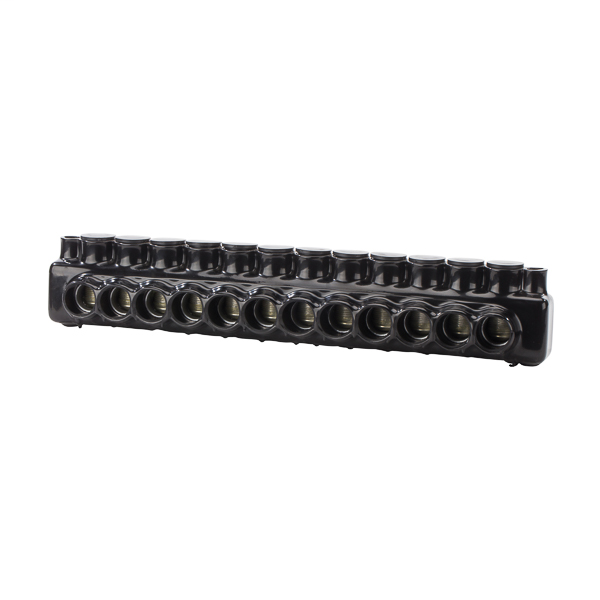

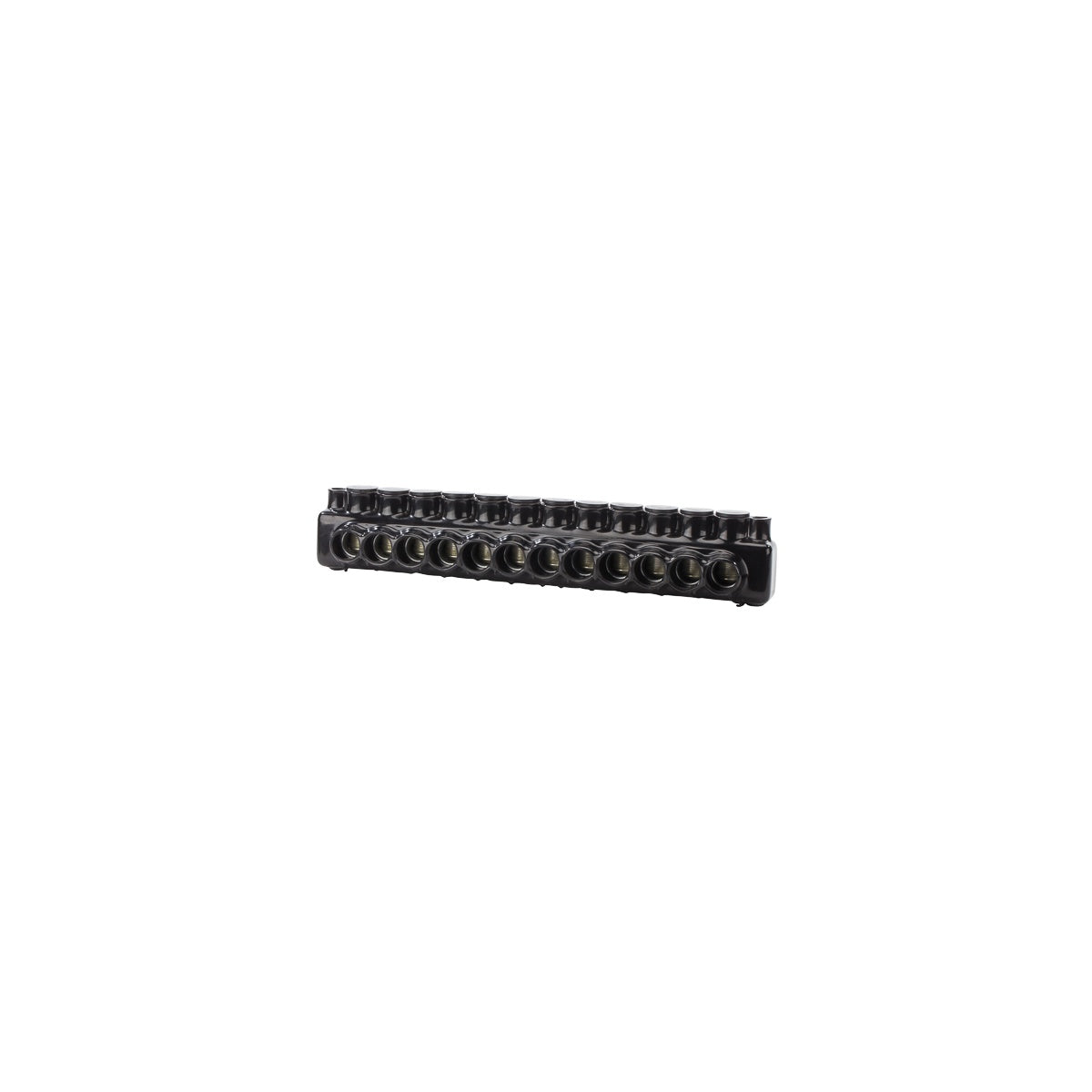

Polaris™ Mount Ins Multi-Tap 750 12 Port - Pre-Insulated Electrical Connector

The Polaris™ Mount Ins Multi-Tap 750 12 Port is a pre-insulated wire termination connector designed for electrical distributors and lighting solutions requiring reliable multi-conductor connections. Manufactured by NSI Industries, this connector supports wire and cable applications with dual-sided entry for versatile installation. It is suitable for use in dry locations and rated for temperatures up to 90°C, making it appropriate for various switchgear and panel wiring tasks.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 12
• Number of Poles: 1
• Wire Type: Class B & C (Dual rated for copper and aluminum cables)
• Environmental Conditions: 90°C
• Length: 18.78 in
• Width: 3.41 in
• Height: 3.54 in
• Product Weight: 6.49 lbs
• Manufacturer Part #: IPLMD750-12

Features

• Wire entry ports on both sides allow access from either side.
• Supplied with removable access plugs to close unused entry ports.
• Mounting holes at each end enable direct isolated mounting to troughs, panels, or wireways.
• High-dielectric strength plastisol insulation provides abrasion, chemical, and UV resistance.
• Molded for precise fit with removable access plugs over hex screws.
• Eliminates the need for additional cover and taping.
• Will not support combustion.
