Polaris™ Mount Ins Multi-Tap 500 6 Port
SKU: #304991
Part: #IPLMD500-6
UPC: 662381945044
Polaris™ Mount Ins Multi-Tap 500 6 Port
SKU: #304991
Part: #IPLMD500-6
UPC: 662381945044
Total Price: $208.18 per each Sold in increments of 1 each
Description

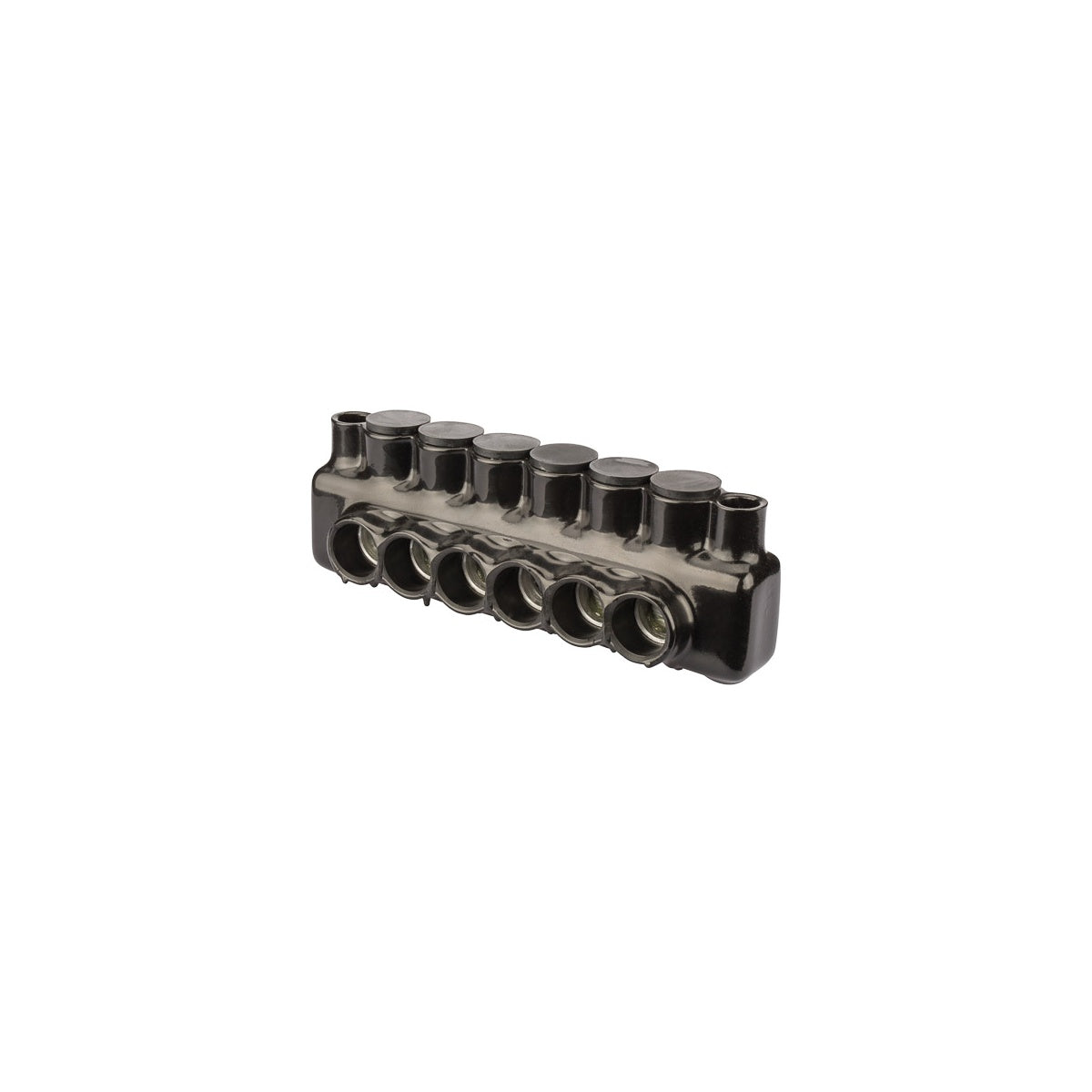

Polaris™ Mount Ins Multi-Tap 500 6 Port – Wire Termination Connector
The Polaris™ Mount Insulated Multi-Tap 500 6 Port connector is designed for wire termination applications in electrical distribution and lighting solutions. It supports wire sizes ranging from 500 MCM to 4 AWG and is suitable for Class B & C wire types. This connector is manufactured from durable 6061-T6 aluminum alloy with a plastisol insulated finish, providing abrasion, chemical, and UV resistance. It is UL listed per UL486A/B for 600V and dual rated for 90°C copper and aluminum conductors, making it a reliable choice for wire and cable installations in demanding environments.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLMD500-6
- Application: Wire Termination
- Number of Conductors: 6
- Number of Poles: 1
- Wire Type: Class B & C
- Wire Range: 500 MCM - 4 AWG
- Material: Aluminum (6061-T6 Alloy)
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 8.94 in x 2.81 in x 3.03 in
- Environmental Conditions Rating: 90°C
- Product Weight: 2.07 lbs
- Voltage Rating: 600V (UL Listed per UL486A/B)
- Temperature Rating: Cold temperature rated to -45°C
Features
- Dual sided entry with removable caps for flexible wiring options
- Insulated mounting port on each end for secure 5/16 bolt installation
- Pre-filled with oxide inhibitor to enhance conductivity and prevent corrosion
- 5/16 internal hex pressure screw for reliable wire clamping
- High dielectric strength insulation offering abrasion, chemical, and UV resistance
- UL listed and dual rated for copper and aluminum conductors
