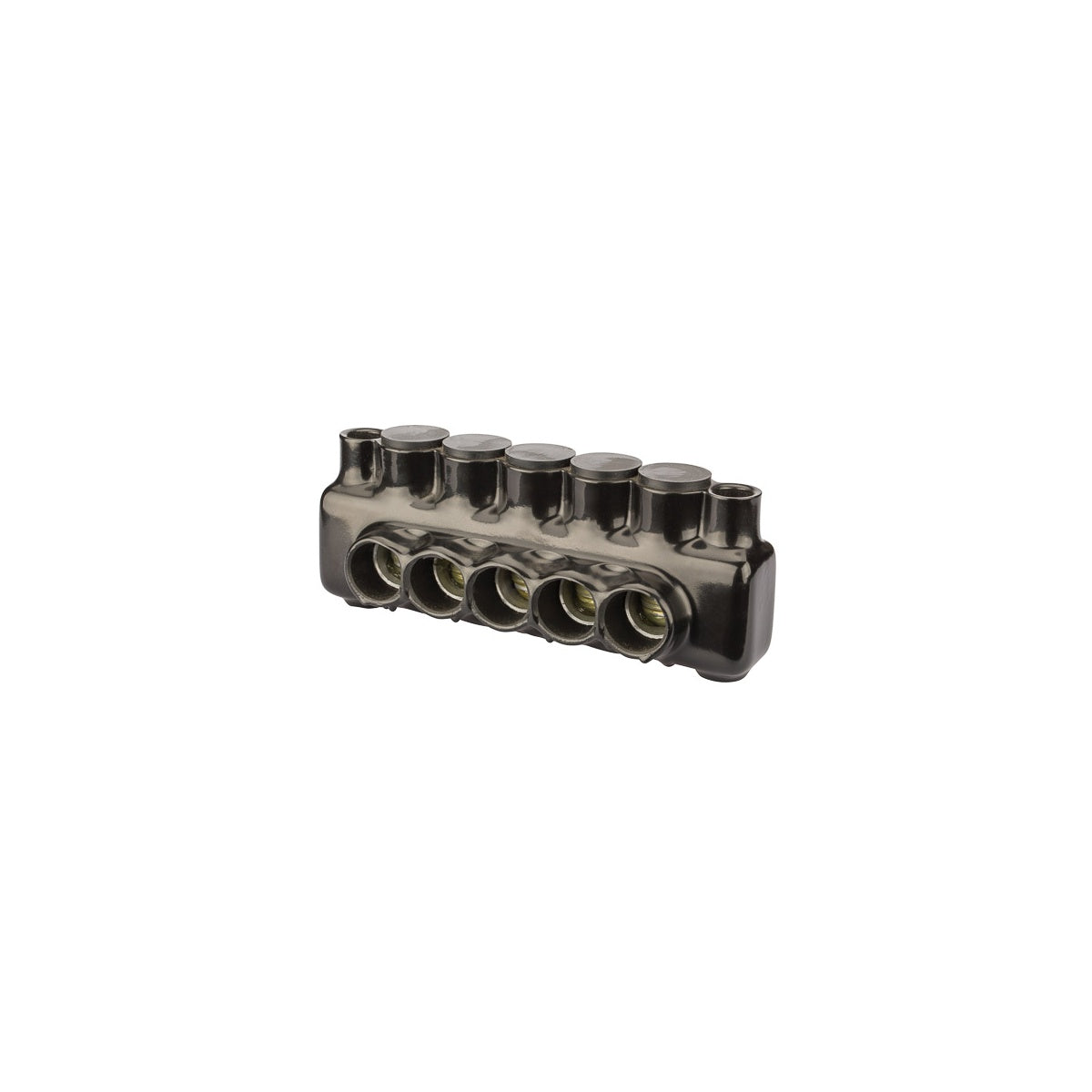

Polaris™ Mount Ins Multi-Tap 500 5 Port
SKU: #304986
Part: #IPLMD500-5
UPC: 662381945037
Polaris™ Mount Ins Multi-Tap 500 5 Port
SKU: #304986
Part: #IPLMD500-5
UPC: 662381945037
Total Price: $201.22 per each Sold in increments of 1 each
Description
Polaris™ Mount Ins Multi-Tap 500 5 Port - Wire Termination Connector
The Polaris™ Mount Ins Multi-Tap 500 5 Port connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers handling Class B & C wire types. This insulated multi-tap connector supports wire ranges from 500 MCM to 4 AWG and features dual-sided entry with mountable ports, making it suitable for complex wiring and lighting solutions requiring secure and efficient wire connections.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLMD500-5
- Application: Wire Termination
- Material: Aluminum (6061-T6 alloy)
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 5
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90°C
- Dimensions (L x W x H): 7.8 in x 2.81 in x 3.03 in
- Product Weight: 1.81 lbs
- UL Listed per UL486A/B for 600V
- Cold Temperature Rated to -45°C
Features
- Dual entry design with removable caps for flexible wire insertion
- Insulated mounting port on each end for 5/16 bolt installation
- Pre-filled with oxide inhibitor to enhance connection reliability
- 5/16 internal hex pressure screws for secure conductor clamping
- High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
- Manufactured from durable 6061-T6 aluminum alloy for strength and conductivity
- Suitable for copper and aluminum conductors
