Polaris™ Mount Ins Multi-Tap 500 4 Port
SKU: #304984
Part: #IPLMD500-4
UPC: 662381945020
Polaris™ Mount Ins Multi-Tap 500 4 Port
SKU: #304984
Part: #IPLMD500-4
UPC: 662381945020
Total Price: $178.86 per each Sold in increments of 1 each
Description

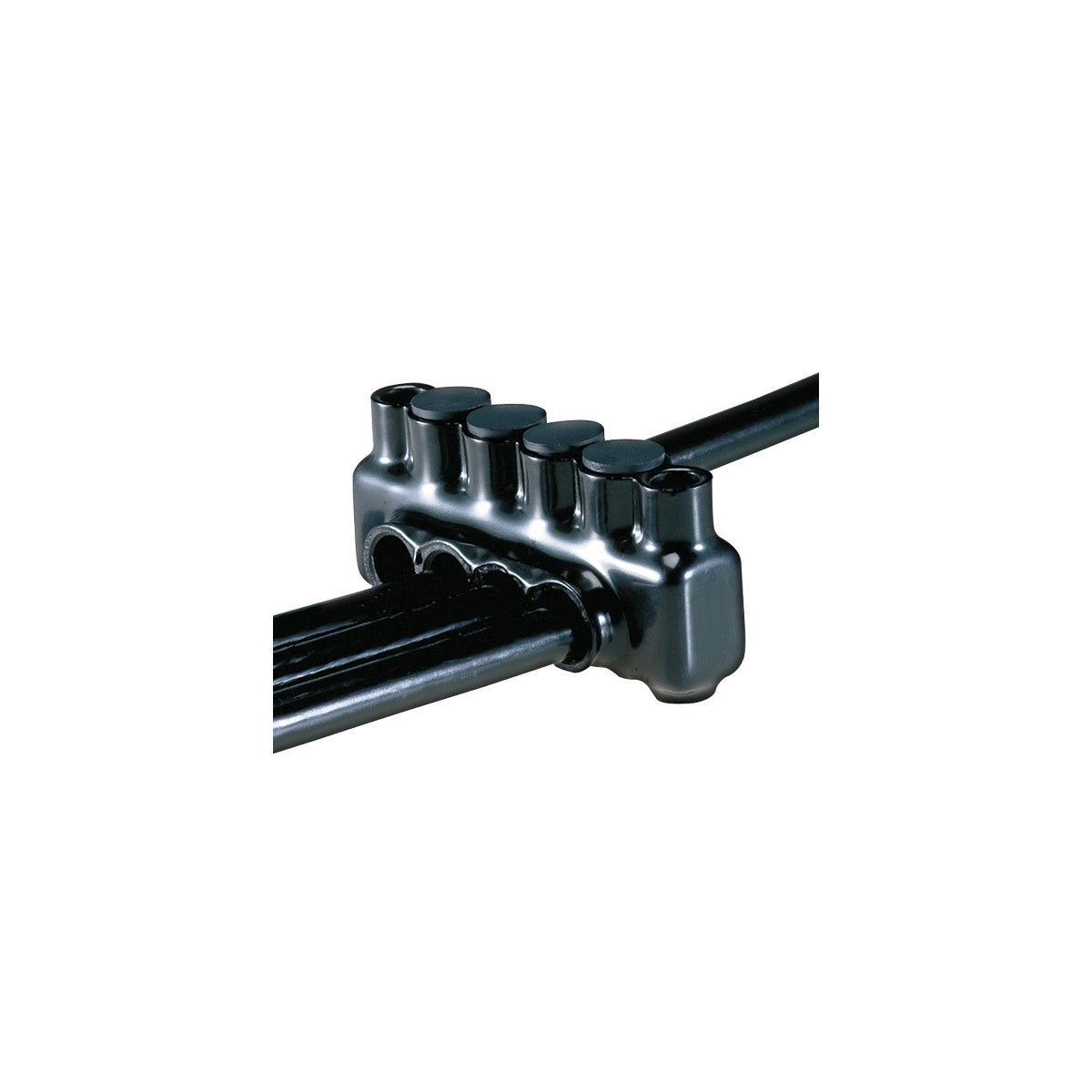

Polaris™ Mount Ins Multi-Tap 500 4 Port Electrical Connector
The Polaris™ Mount Ins Multi-Tap 500 4 Port is a pre-insulated electrical connector designed for wire termination applications. It supports wire sizes ranging from 500 MCM to 4 AWG and is suitable for both copper and aluminum conductors, making it ideal for electrical distributors and switchgear suppliers requiring reliable multi-port connections. Its robust construction and insulation make it compatible with demanding environments and wire and cable installations.
Specifications
- Application: Wire Termination
- Material: Aluminum (6061-T6 Alloy)
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90°C
- Dimensions (L x W x H): 6.65 in x 2.81 in x 3.03 in
- Product Weight: 1.55 lbs
- UL Listed: UL486A/B for 600V
- Cold Temperature Rating: -45°C
- Manufacturer Part #: IPLMD500-4
Features
- Dual entry ports with removable caps for flexible wire insertion
- Pre-filled with oxide inhibitor to ensure reliable connections
- 5/16 internal hex pressure screw for secure wire termination
- Insulated mounting ports on each end for 5/16 bolt installation
- High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
- Compatible with both copper and aluminum conductors, dual rated
