Polaris™ Mount Ins Multi-Tap 350 10 Port
SKU: #304973
Part: #IPLMD350-10
UPC: 662381944085
Polaris™ Mount Ins Multi-Tap 350 10 Port
SKU: #304973
Part: #IPLMD350-10
UPC: 662381944085
Total Price: $307.76 per each Sold in increments of 1 each
Description

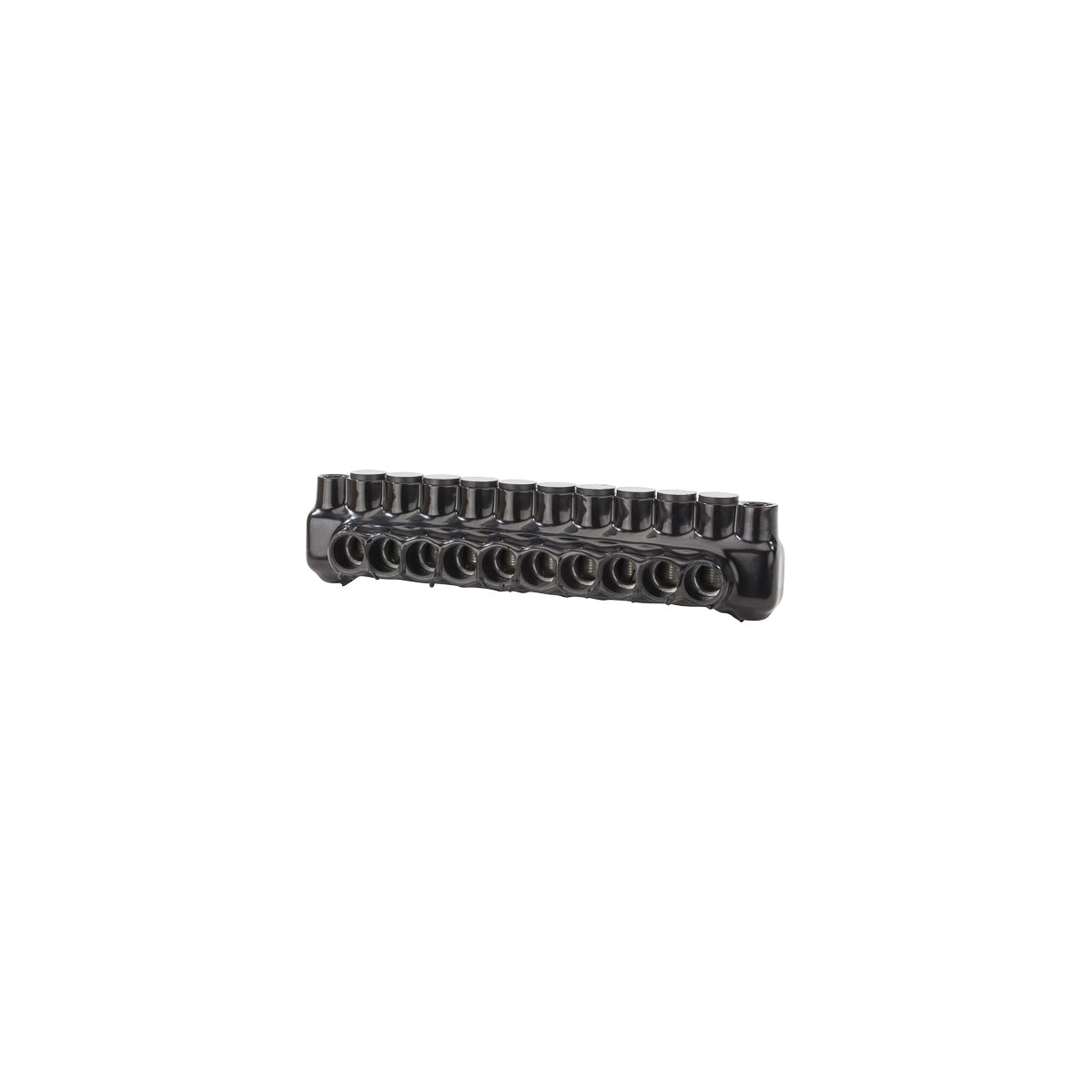

Polaris™ Mount Ins Multi-Tap 350 10 Port – Insulated Wire Termination Connector
The Polaris™ Mount Ins Multi-Tap 350 10 Port is a precision-engineered insulated wire termination connector designed for electrical distributors and switchgear suppliers requiring reliable and efficient wire and cable connections. Manufactured by NSI Industries, this connector supports wire termination applications with dual-sided entry and mounting capabilities, ideal for lighting solutions and electrical distribution systems.
Specifications
- Application: Wire Termination
- Material: Aluminum (6061-T6 Alloy)
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 10
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90°C
- Dimensions (L x W x H): 12.47 in x 2.41 in x 2.77 in
- Product Weight: 2.22 lbs
- Manufacturer Part #: IPLMD350-10
- UL Listed per UL486A/B for 600V
- Cold Temperature Rating: -45°C
- Wire Range: 350 KCMIL to #6 AWG
Features
- Dual entry ports with removable caps for flexible wiring options
- Insulated mounting ports on each end for secure installation using 5/16 bolts
- Pre-filled with oxide inhibitor to enhance conductivity and prevent corrosion
- 5/16 internal hex pressure screws ensure reliable mechanical connection
- High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
- Manufactured from durable 6061-T6 aluminum alloy for strength and longevity
