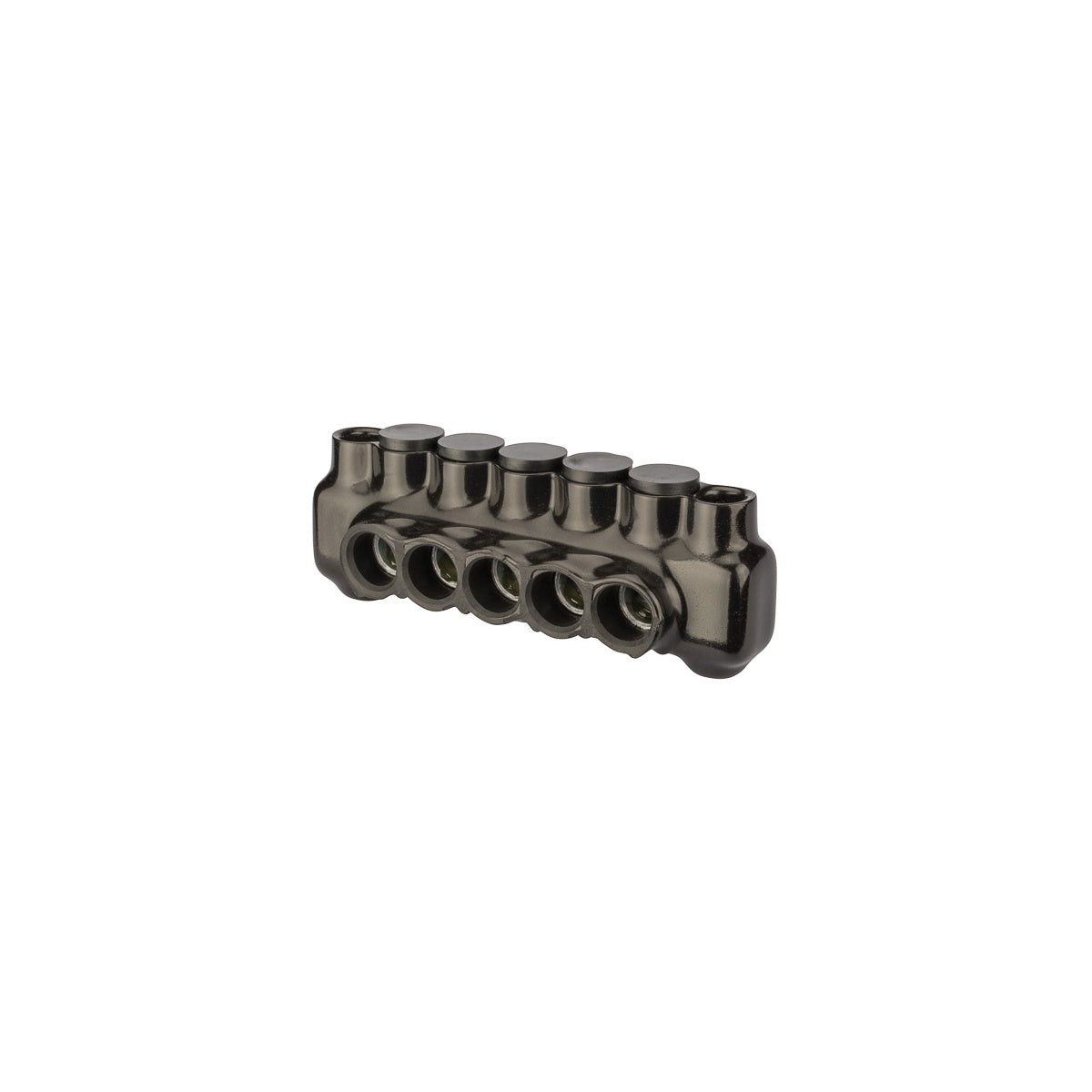

Polaris™ Mount Ins Multi-Tap 3/0 5 Port Electrical Connector

The Polaris™ Mount Ins Multi-Tap 3/0 5 Port is a wire termination connector designed for electrical distributors and lighting solutions requiring reliable wire and cable connections. Manufactured by NSI Industries, this insulated multi-tap connector supports dual-sided entry and is mountable, making it suitable for various switchgear supplier applications. It accommodates wire sizes from 3/0 to 6 AWG and is rated for use with Class B and C wire types.

Specifications

• Application: Wire Termination
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 5
• Number of Poles: 1
• Dimensions: 5.43 in (Length) x 1.83 in (Width) x 1.91 in (Height)
• Wire Range: 3/0 to 6 AWG
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90°C
• Product Weight: 0.59 lbs
• Manufacturer Part Number: IPLMD3/0-5
• UL Listed: UL486A/B for 600V
• Cold Temperature Rated to -45°C

Features

• Dual rated for 90°C copper and aluminum conductors
• Pre-filled with oxide inhibitor to ensure reliable connections
• 1/4" internal hex pressure screw for secure wire termination
• Removable caps for dual entry and screw tightening
• Insulated mounting port on each end for 1/4" bolt installation
• High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
