Polaris™ Ins Splice 600
SKU: #305164
Part: #ISR-600
UPC: 662381789457
Polaris™ Ins Splice 600
SKU: #305164
Part: #ISR-600
UPC: 662381789457
Next day delivery
Description

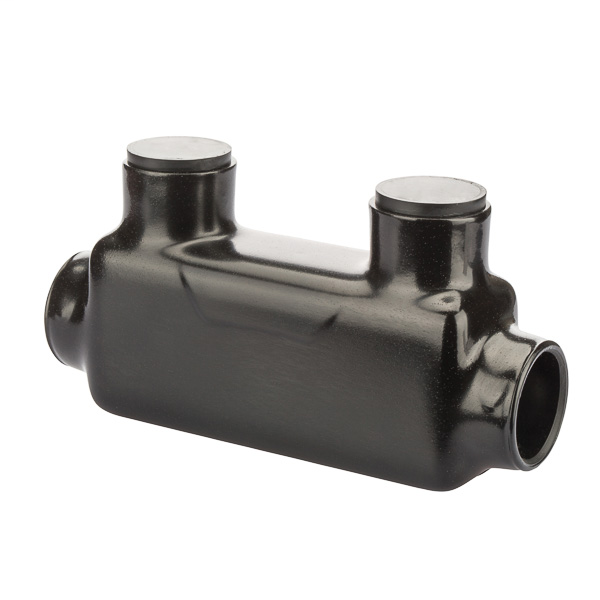

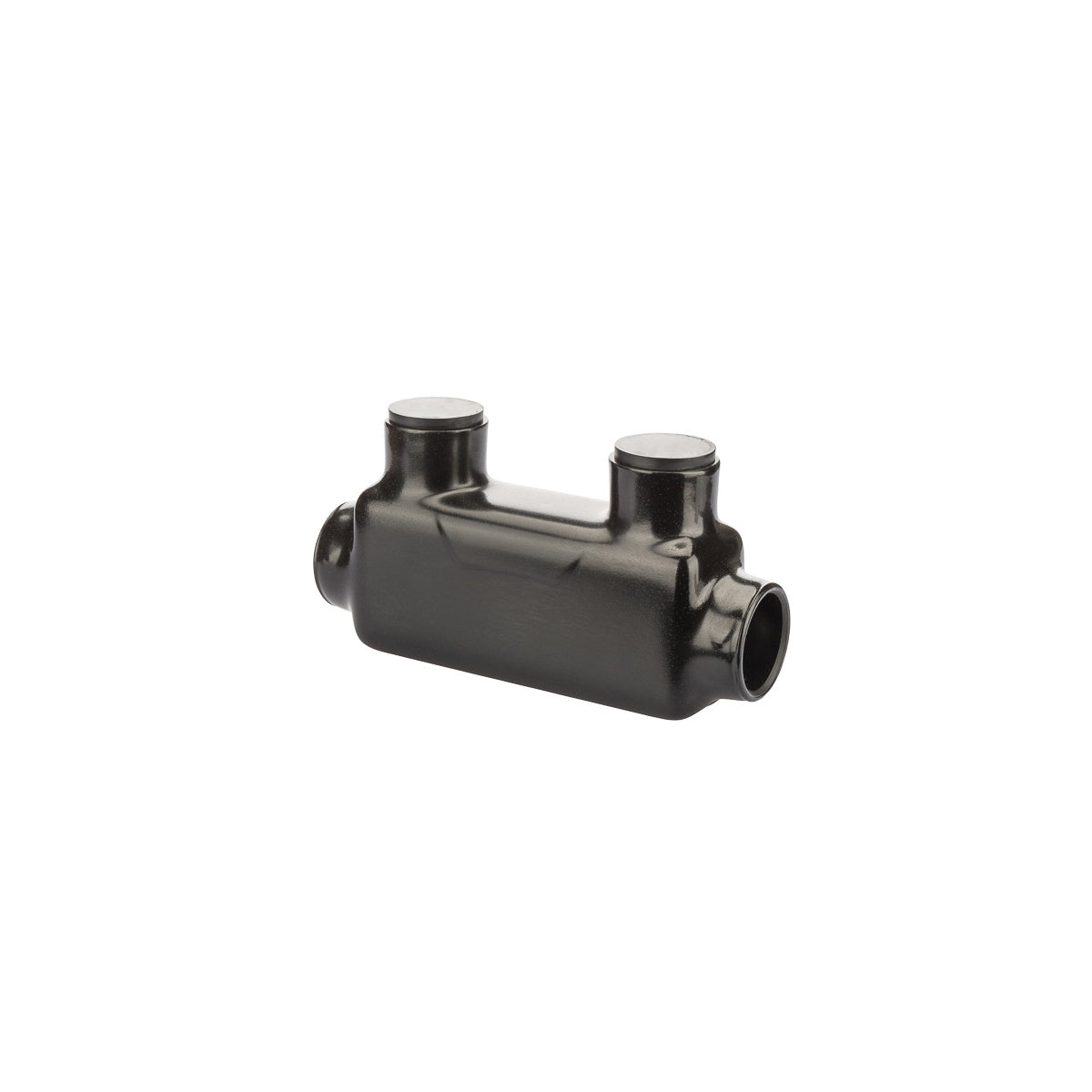

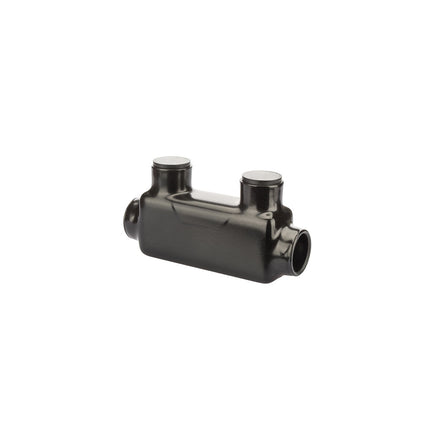

Polaris™ Ins Splice 600 - Insulated Wire Splice Connector
The Polaris™ Ins Splice 600 is an insulated splice connector designed for wire termination applications. Manufactured by NSI Industries, this connector is suitable for electrical distributors and lighting solutions requiring reliable wire and cable splicing. It is constructed from aluminum with a plastisol insulated finish, ensuring durability and electrical safety in various environments.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Color: Black
- Finish: Plastisol Insulated
- Dimensions (L x W x H): 5.83 in x 1.57 in x 3.05 in
- Number of Conductors: 2
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 75 °C
- Product Weight: 1.0000 lb
- Manufacturer: NSI Industries
- Manufacturer Part #: ISR-600
Features
- UL Listed per UL486A/B specifications for 600V applications
- Dual rated for 90°C copper and/or aluminum conductors
- Cold temperature rated to -45°C
- High dielectric strength insulation that is abrasion and chemical resistant
- UV rated for outdoor durability
- Pre-filled with oxide inhibitor for enhanced conductivity and corrosion resistance
- Removable cap for tightening pressure screw with 5/16" internal hex
