Polaris™ Ins Splice 500
SKU: #305156
Part: #ISR-500
UPC: 662381951045
Polaris™ Ins Splice 500
SKU: #305156
Part: #ISR-500
UPC: 662381951045
Description

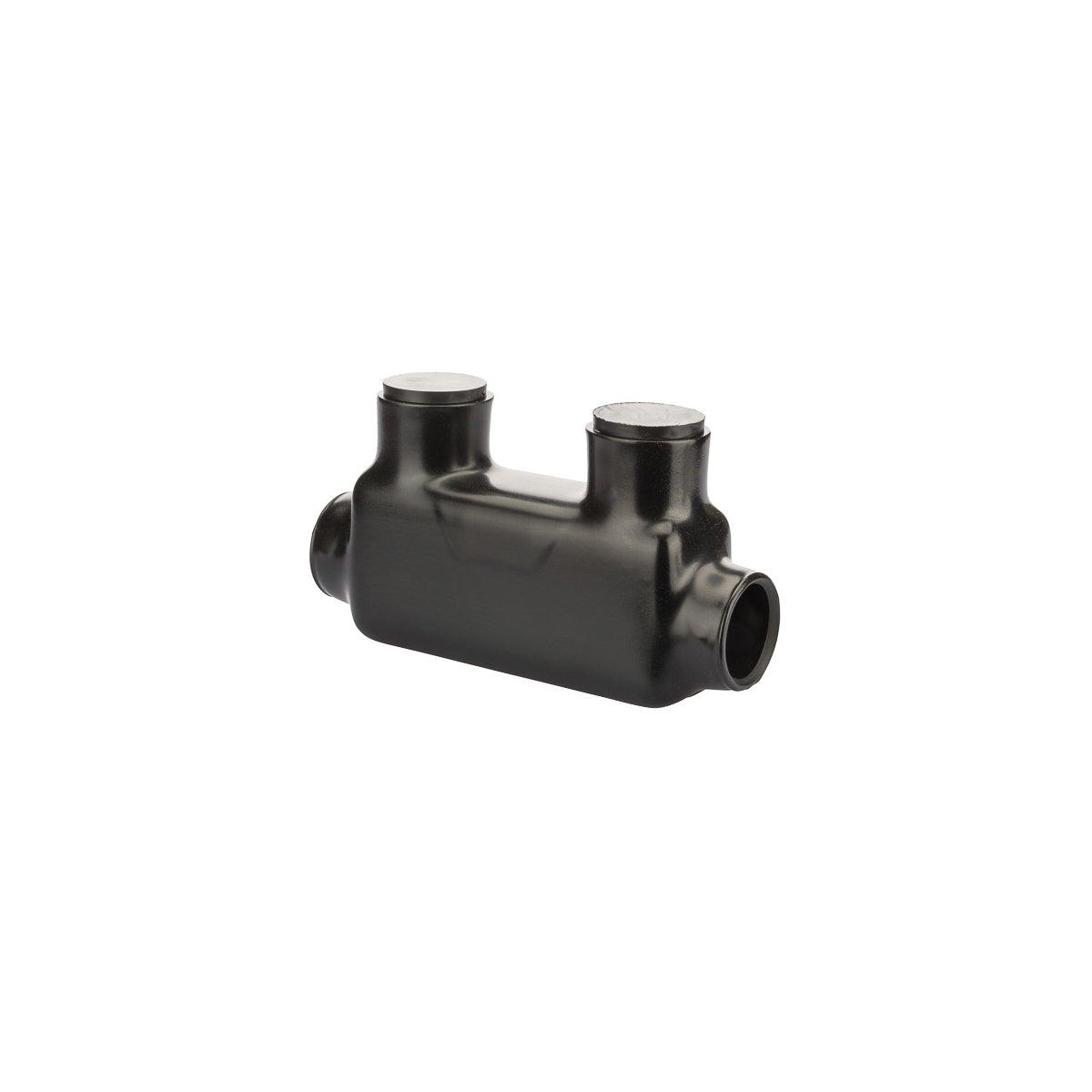

Polaris™ Ins Splice 500 - Insulated In-Line Splice Connector
The Polaris™ Ins Splice 500 is a pre-insulated in-line splice connector designed for wire termination applications. Manufactured by NSI Industries, this connector is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It is dual rated for use with both copper and aluminum conductors, supporting Class B & C wire types, and is rated for 600V and 90°C environmental conditions. Its robust construction and plastisol insulation ensure durability and resistance to abrasion, chemicals, and UV exposure, making it appropriate for dry locations in lighting solutions and electrical distribution systems.
Specifications
- Name: Polaris™ Ins Splice 500
- Application: Wire Termination
- Material: Aluminum
- Color: Black
- Finish: Plastisol Insulated
- Wire Type: Class B & C
- Number of Conductors: 2
- Number of Poles: 1
- Environmental Conditions: 90 °C
- Dimensions (L x W x H): 4.62 in x 1.62 in x 3.00 in
- Product Weight: 0.72 lbs
- Manufacturer: NSI Industries
- Manufacturer Part #: ISR-500
Features
- Suitable for connecting two wires in-line
- Insulated with high dielectric strength plastisol molded for precise fit
- Supplied with removable access plugs over the 5/16" internal hex pressure screw
- Abrasion, chemical, and UV resistant insulation
- Will not support combustion
- UL Listed per UL486A/B for 600V applications
- Dual rated for copper and aluminum conductors
- Cold temperature rated to -45 °C
- Pre-filled with oxide inhibitor for enhanced conductivity and corrosion resistance
