Polaris™ Ins Splice 350
SKU: #305145
Part: #ISR-350
UPC: 662381951038
Polaris™ Ins Splice 350
SKU: #305145
Part: #ISR-350
UPC: 662381951038
Description

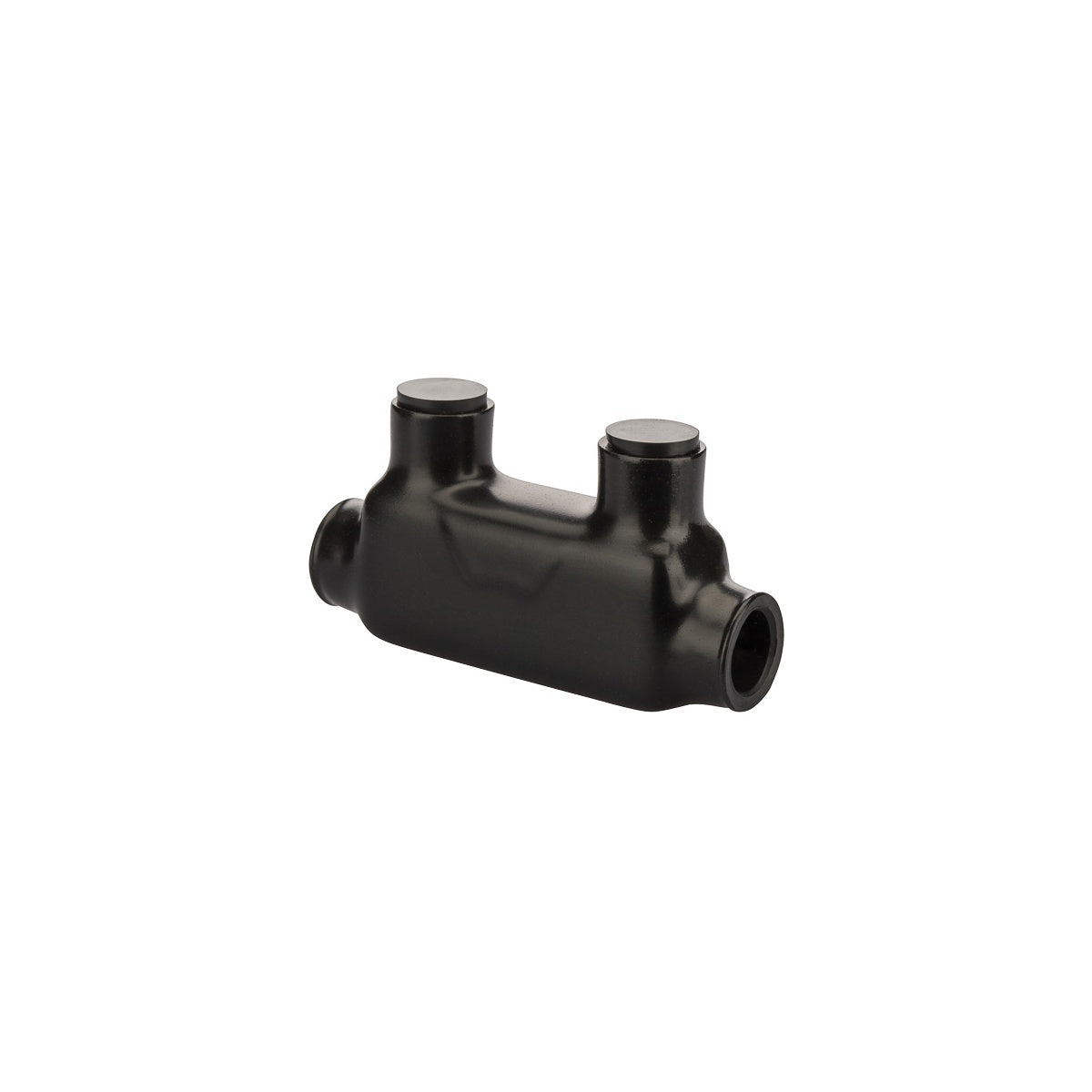

Polaris™ Ins Splice 350 - Insulated In-Line Splice Connector
The Polaris™ Ins Splice 350 is an insulated in-line splice connector designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. This connector supports wire ranges from 350 MCM to 6 AWG and is dual rated for 90°C copper and aluminum conductors, making it ideal for various lighting solutions and electrical distribution systems.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: ISR-350
- Application: Wire Termination
- Wire Range: 350 MCM - 6 AWG
- Wire Type: Class B & C
- Number of Conductors: 2
- Number of Poles: 1
- Material: Aluminum (6061-T6 Alloy)
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x H x W): 4.47 in x 2.20 in x 1.32 in
- Product Weight: 0.51 lbs
- Environmental Conditions: Rated to 90°C, cold temperature rated to -45°C
- UL Listed per UL486A/B for 600V
Features
- Pre-filled with oxide inhibitor to ensure reliable electrical connection
- High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
- Removable cap for tightening 5/16" internal hex pressure screw
- Dual rated for copper and aluminum conductors
- Designed for use with Class B and C wire types
