Polaris™ Ins Splice 250
SKU: #305139
Part: #ISR-250
UPC: 662381951021
Polaris™ Ins Splice 250
SKU: #305139
Part: #ISR-250
UPC: 662381951021
Total Price: $37.29 per each Sold in increments of 1 each
Description

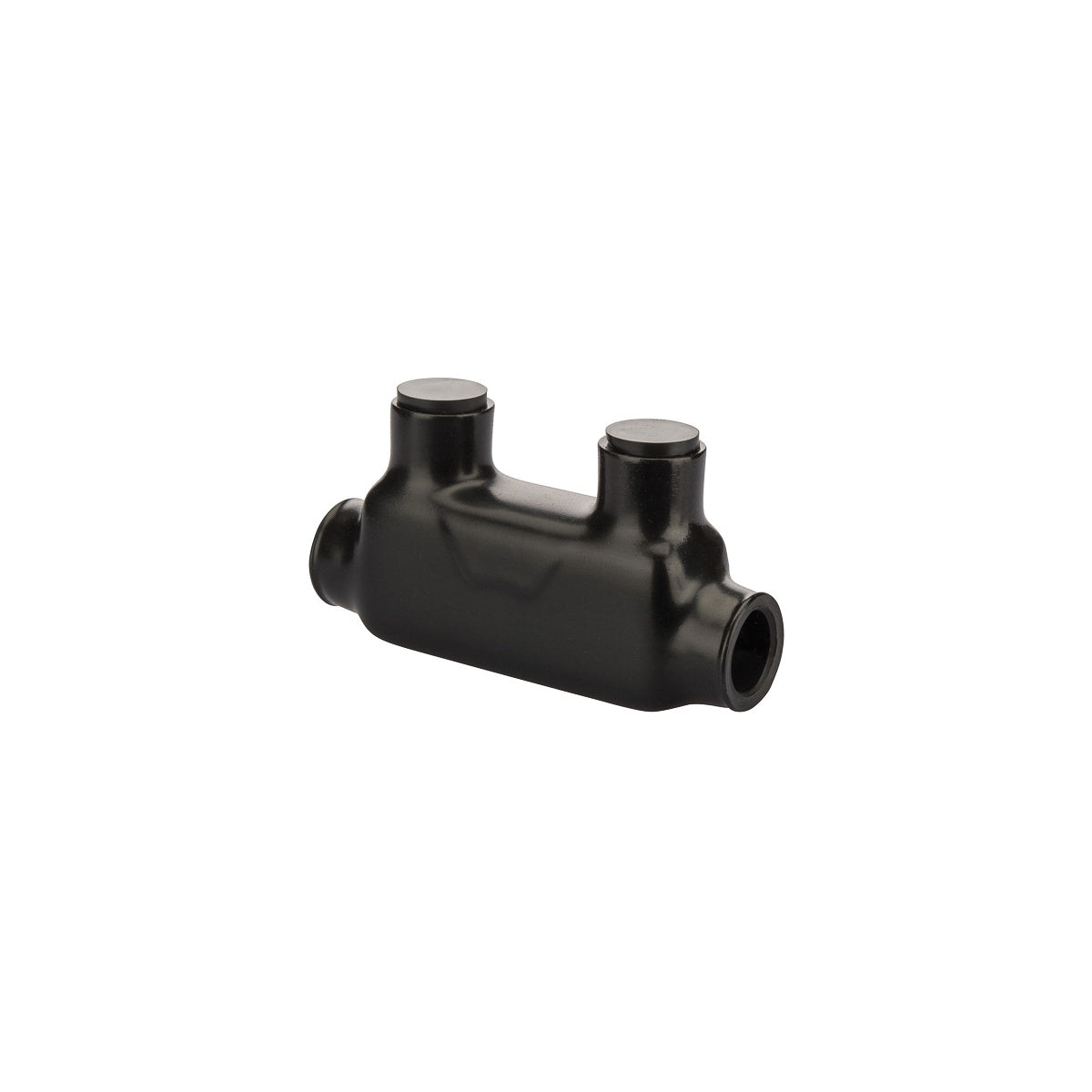

Polaris™ Ins Splice 250 – Pre-Insulated Wire Splice
The Polaris™ Ins Splice 250 is a pre-insulated in-line splice connector designed for wire termination applications. Manufactured by NSI Industries, this connector is suitable for electrical distributors and lighting solutions requiring reliable splicing for Class B & C wires. It supports wire sizes from 250 MCM to 6 AWG and is dual rated for use with copper and aluminum cables, making it a versatile component for wire and cable management in switchgear and electrical distribution systems.
Specifications
- Application: Wire Termination
- Manufacturer: NSI Industries
- Manufacturer Part #: ISR-250
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Wire Type: Class B & C (Copper and Aluminum cables)
- Number of Conductors: 2
- Number of Poles: 1
- Dimensions (L x W x H): 4 in x 1.19 in x 1.9 in
- Product Weight: 0.34 lbs
- Environmental Conditions: Rated for 90 °C
- UL Listing: UL 486B Wire Connector (Dry location)
- Voltage Rating: 600V
- Temperature Rating: Cold temperature rated to -45 °C
Features
- Suitable for connecting two wires in-line
- High dielectric strength plastisol insulation molded for precise fit
- Removable access plugs over the hex screw
- Abrasion and chemical resistant
- UV resistant
- Will not support combustion
