Polaris™ Ins Splice 1/0
SKU: #305134
Part: #ISR-1/0
UPC: 662381951014
Polaris™ Ins Splice 1/0
SKU: #305134
Part: #ISR-1/0
UPC: 662381951014
Description

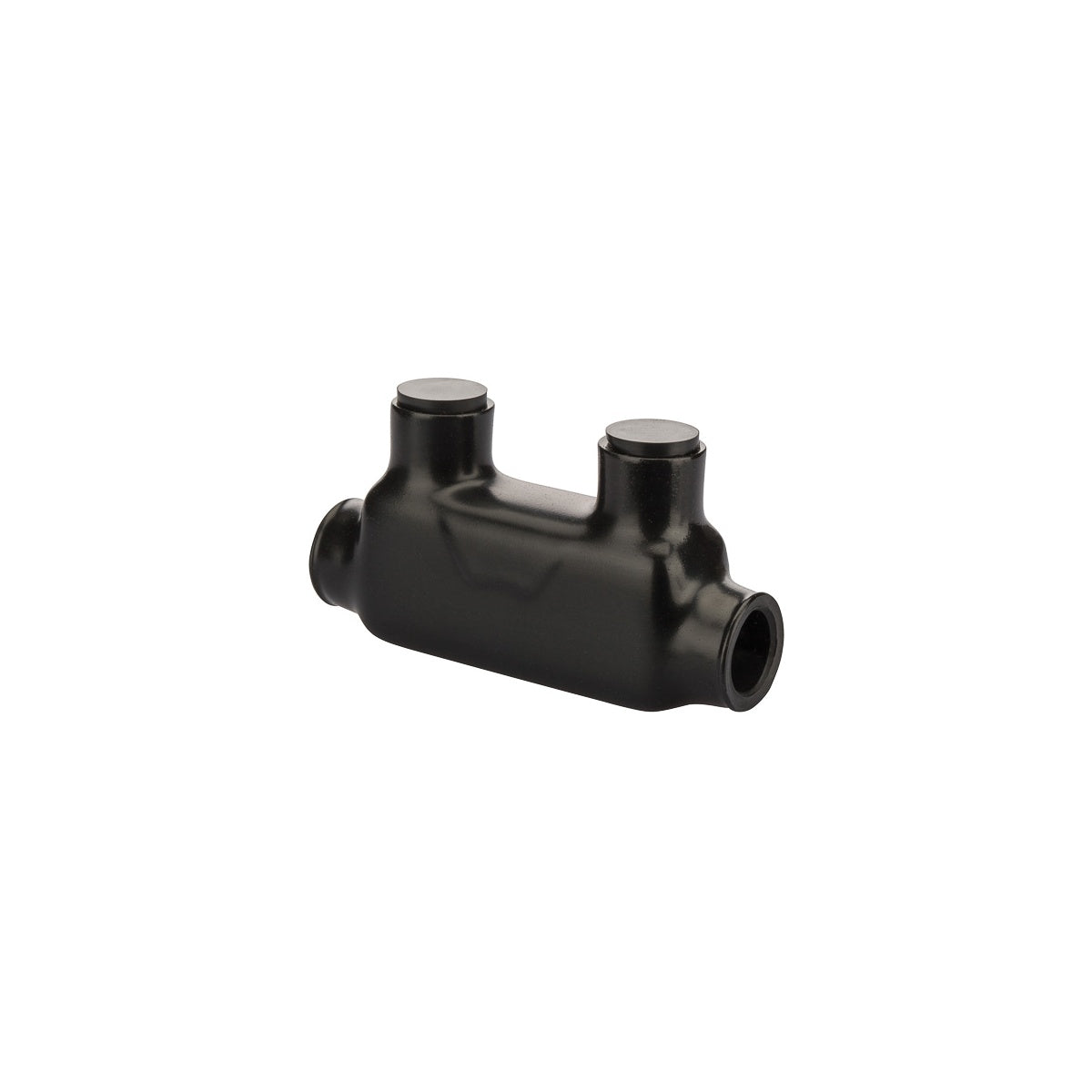

Polaris™ Ins Splice 1/0 – Insulated In-Line Splice Connector
The Polaris™ Insulated In-Line Splice 1/0 is designed for wire termination applications, providing reliable electrical connections for Class B & C wire types. Manufactured from aluminum with a plastisol insulated finish, this splice connector is suitable for use in environments up to 90°C. It is ideal for electrical distributors and switchgear suppliers seeking durable and UL-listed wire and cable connection solutions.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Wire Type: Class B & C
- Number of Conductors: 2
- Number of Poles: 1
- Dimensions (L x H x W): 3.25 in x 1.48 in x 0.9 in
- Environmental Conditions: 90°C
- Product Weight: 0.1500 lbs
- Manufacturer: NSI Industries
- Manufacturer Part #: ISR-1/0
- UPC: 662381951014
Features
- UL Listed per UL486A/B specifications for 600V applications
- Manufactured from 6061-T6 aluminum alloy for strength and durability
- Pre-filled with oxide inhibitor to enhance connection reliability
- Cold temperature rated to -45°C
- High dielectric strength insulation that is abrasion, chemical, and UV resistant
- Designed for easy installation with removable cap and 5/16" internal hex pressure screw
