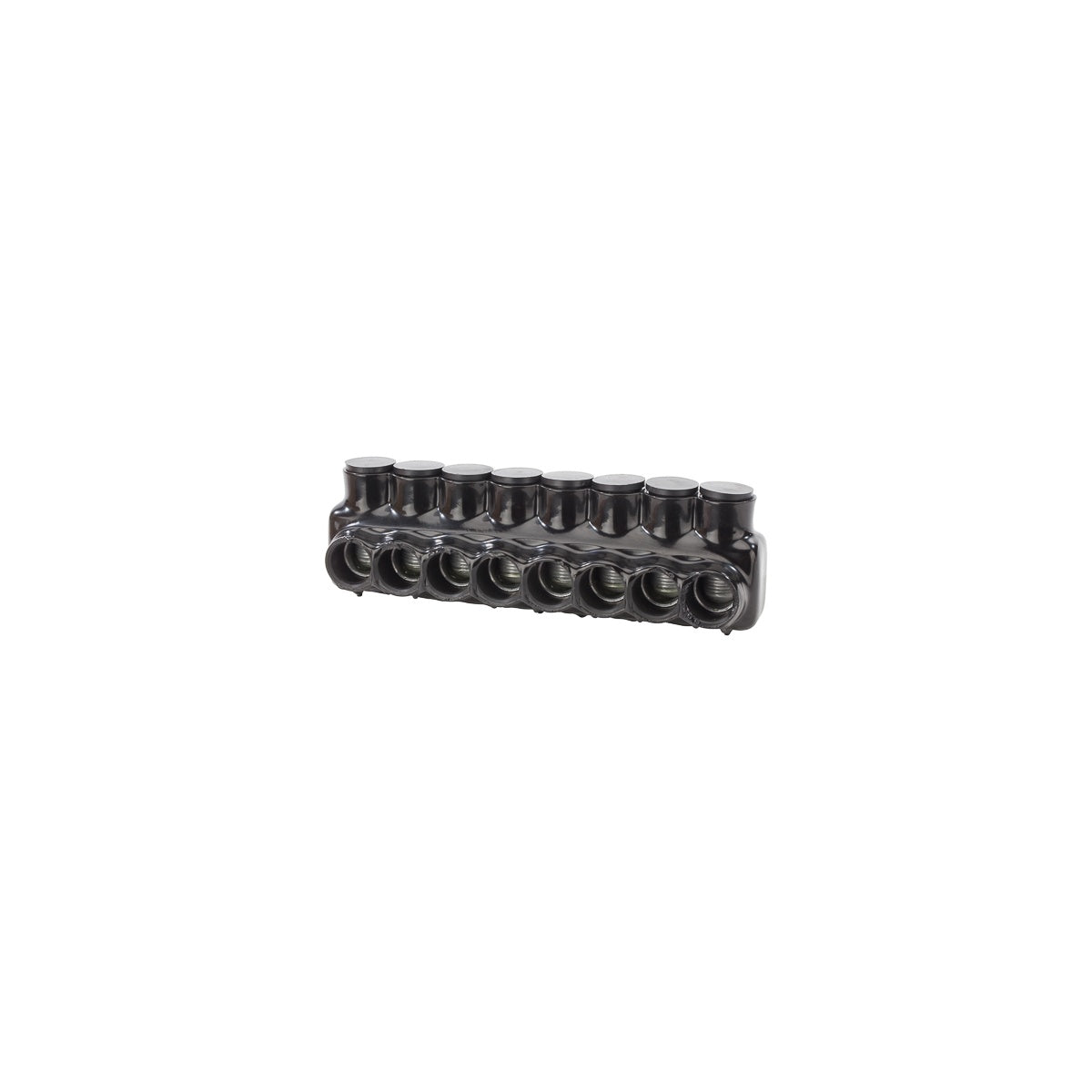

Polaris™ Ins Multi-Tap 750 8 Port DSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap 750 8 Port Dual Side Entry (DSE) connector by NSI Industries is designed for wire termination applications, offering a reliable solution for electrical distributors and switchgear suppliers requiring robust wire and cable connections. This connector supports Class B & C wire types and is suitable for both copper and aluminum conductors, rated for use up to 90°C and 600 volts. Its dual-sided wire entry ports enhance installation flexibility, making it ideal for lighting solutions and other electrical distribution tasks.

Specifications

• Application: Wire Termination
• Number of Conductors: 8
• Number of Poles: 1
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 12.08 in x 3.41 in x 3.42 in
• Product Weight: 3.73 lbs
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90°C
• Manufacturer: NSI Industries
• Manufacturer Part Number: IPLD750-8
• Voltage Rating: 600V
• Temperature Rating: -45°C to 90°C
• UL Listing: UL 486B Listed (Dry location)

Features

• Dual side wire entry ports allow access from either side, increasing installation versatility.
• Pre-insulated with high dielectric strength black plastisol for abrasion, chemical, and UV resistance.
• Supplied with removable plugs to close unused wire entry ports, eliminating the need for taping or covers.
• Molded for precise fit with removable access plugs over hex screws for secure connections.
• Cold temperature rated to -45°C, suitable for harsh environmental conditions.
• Dual rated for use with copper and aluminum cables, providing flexibility and cost savings.
• Will not support combustion, enhancing safety in electrical installations.
• Designed to withstand vibration-prone conditions with durable plastisol insulation.
