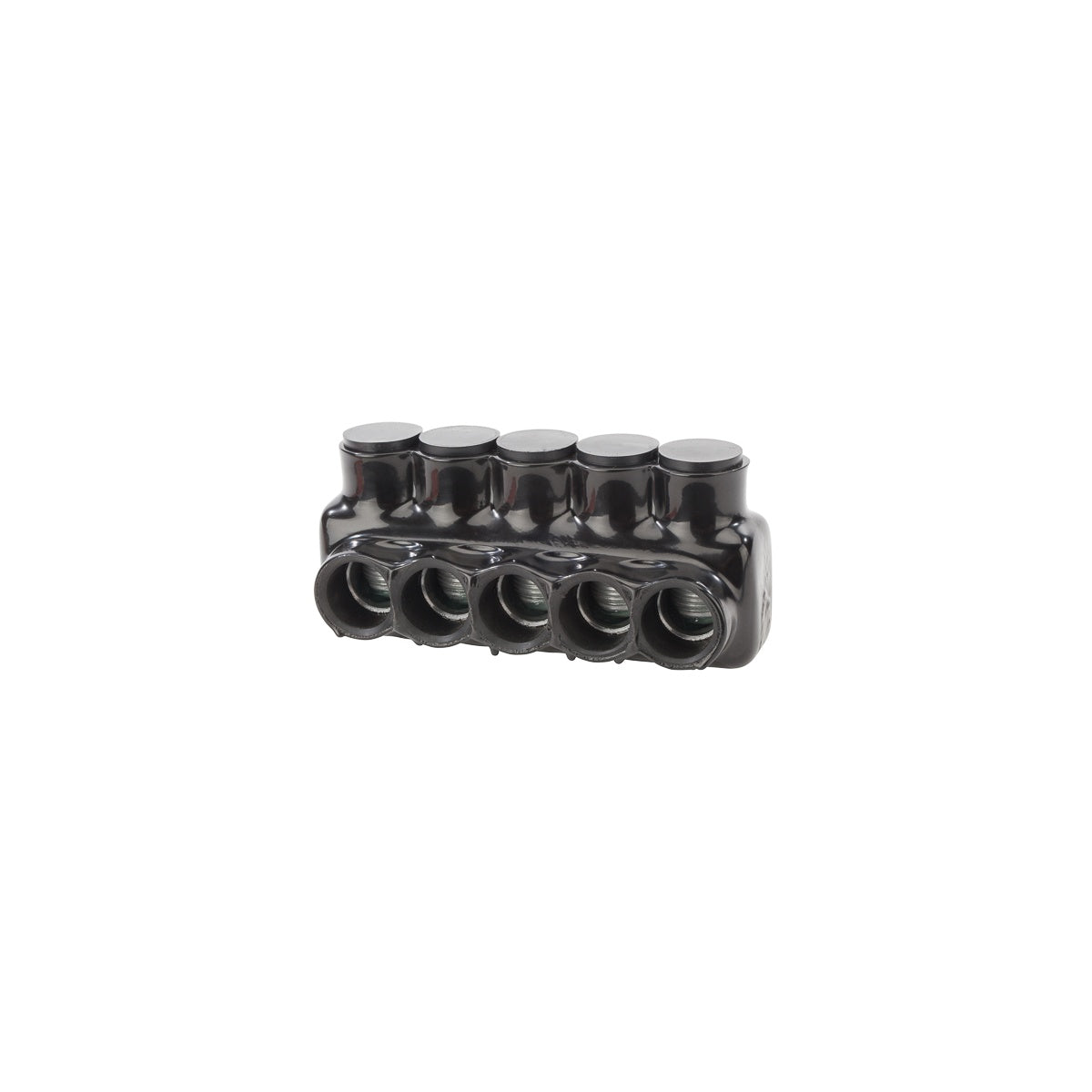

Polaris™ Ins Multi-Tap 750 5 Port DSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap 750 5 Port Dual Side Entry (DSE) connector is designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable multi-cable connections. This connector supports Class B and C wire types, accommodating wire sizes from 750 to 250 MCM. It features dual wire entry ports for flexible installation and is insulated with a high dielectric strength plastisol, ensuring abrasion, chemical, and UV resistance for harsh environments.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPLD750-5
• Application: Wire Termination
• Material: Aluminum (6061-T6 Alloy)
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 5
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90°C, cold temperature rated to -45°C
• Dimensions (L x W x H): 7.8 in x 3.41 in x 3.42 in
• Product Weight: 2.34 lbs
• Voltage Rating: 600V

Features

• UL 486B Listed for Copper or Aluminum Class B and C conductors
• Dual side wire entry ports with removable caps for flexible installation
• Pre-insulated with high dielectric strength plastisol for electrical safety
• Abrasion, chemical, and UV resistant insulation suitable for harsh environments
• Cold temperature rated to -45°C for reliable performance in extreme conditions
• Eliminates the need for additional taping or insulation materials, reducing installation time and cost
• Can be customized for direct burial and submersible applications
• Tough, impervious plastisol allows use in vibration-prone conditions
