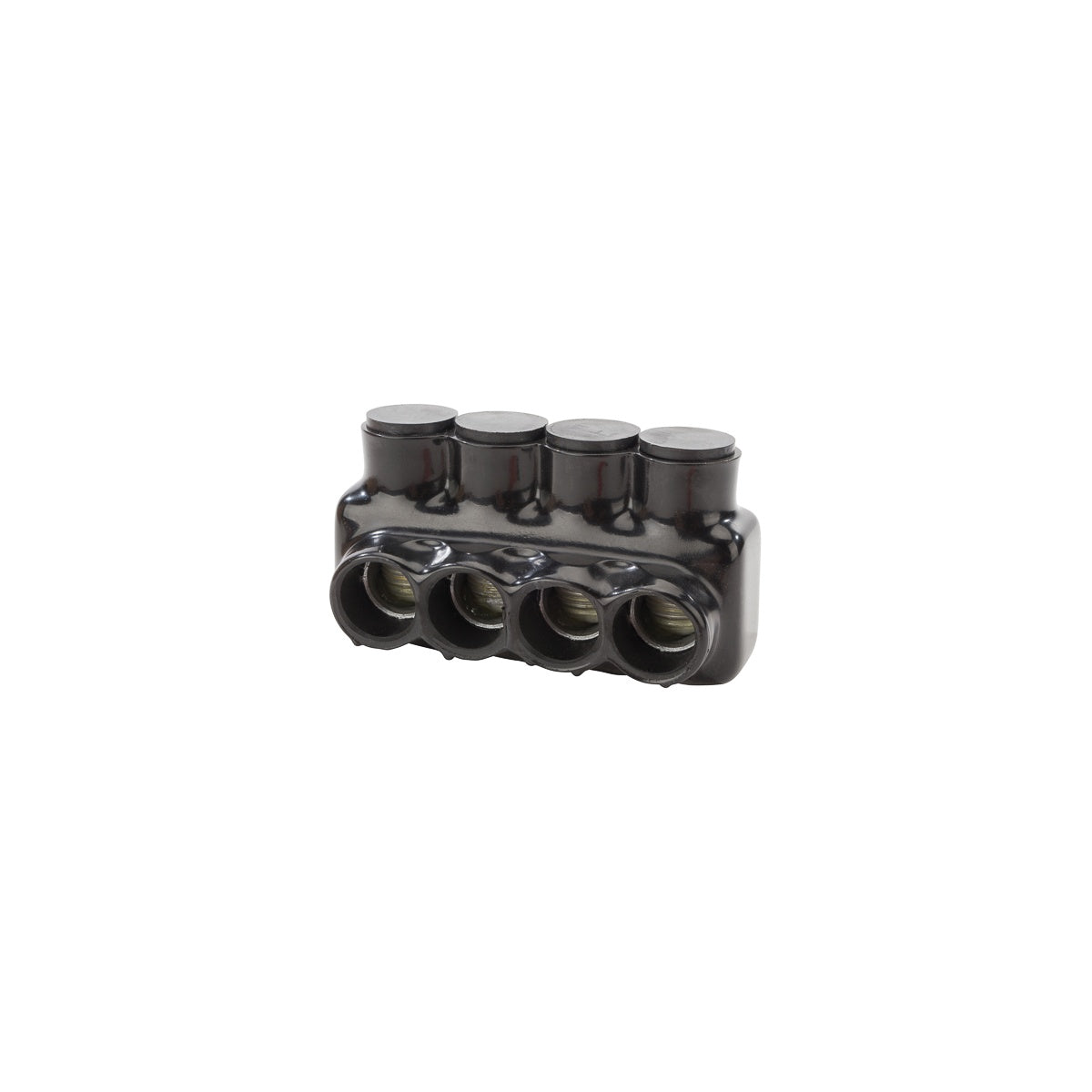

Polaris™ Ins Multi-Tap 750 4 Port SSE Electrical Connector

The Polaris™ Ins Multi-Tap 750 4 Port SSE is a pre-insulated multi-conductor connector designed for wire termination applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable connections for Class B & C wire types. This connector features a single-sided wire entry with four ports, supporting wire sizes from 750 to 250 MCM. Its aluminum construction and plastisol insulation provide durability and electrical safety in demanding environments.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Color: Black
• Finish: Plastisol Insulated
• Number of Conductors: 4
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: 90 °C
• Dimensions (L x W x H): 6.38 in x 3.09 in x 3.49 in
• Product Weight: 1.87 lbs
• Manufacturer Part #: IPL750-4

Features

• Single side wire entry ports simplify installation
• Pre-insulated with high dielectric strength plastisol eliminates need for additional taping or covers
• Molded for precise fit with removable access plugs over hex screws
• Abrasion, chemical, and UV resistant for extended durability
• Will not support combustion, enhancing safety

Downloads & Links

• Catalog Page
• Product Advertisement
• Technical Drawing
