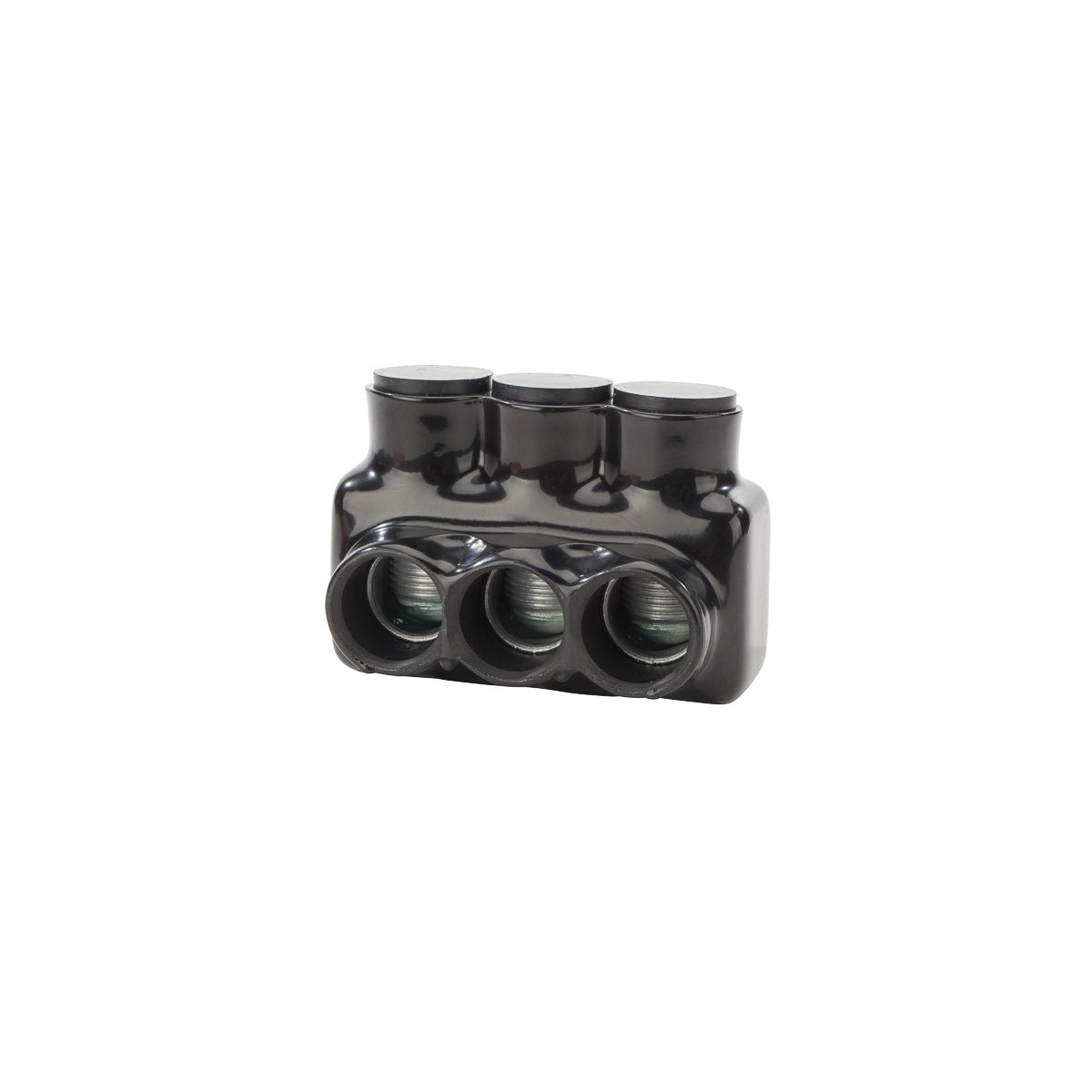

Polaris™ Ins Multi-Tap 750 3 Port SSE - Wire Termination Connector

The Polaris™ Insulated Multi-Tap 750 3 Port Single Sided Entry (SSE) connector is designed for wire termination applications in electrical distribution and lighting solutions. Manufactured by NSI Industries, this connector supports wire ranges from 750 to 250 MCM and is suitable for Class B & C wire types. It is a reliable component for electrical distributors and switchgear suppliers requiring durable and insulated connectors for wire and cable installations.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: 90 °C
• Dimensions (L x W x H): 4.95 in x 3.09 in x 3.49 in
• Product Weight: 1.4 lbs
• Manufacturer Part #: IPL750-3

Features

• Constructed from 6061-T6 aluminum alloy for strength and durability
• Dual rated for 90 °C copper and/or aluminum conductors
• Cold temperature rated to -45 °C for versatile environmental use
• High dielectric strength insulation that is abrasion, chemical, and UV resistant
• Pre-filled with oxide inhibitor to enhance connection reliability
• Removable access plug and 3/8 internal hex pressure screw for secure wire termination
