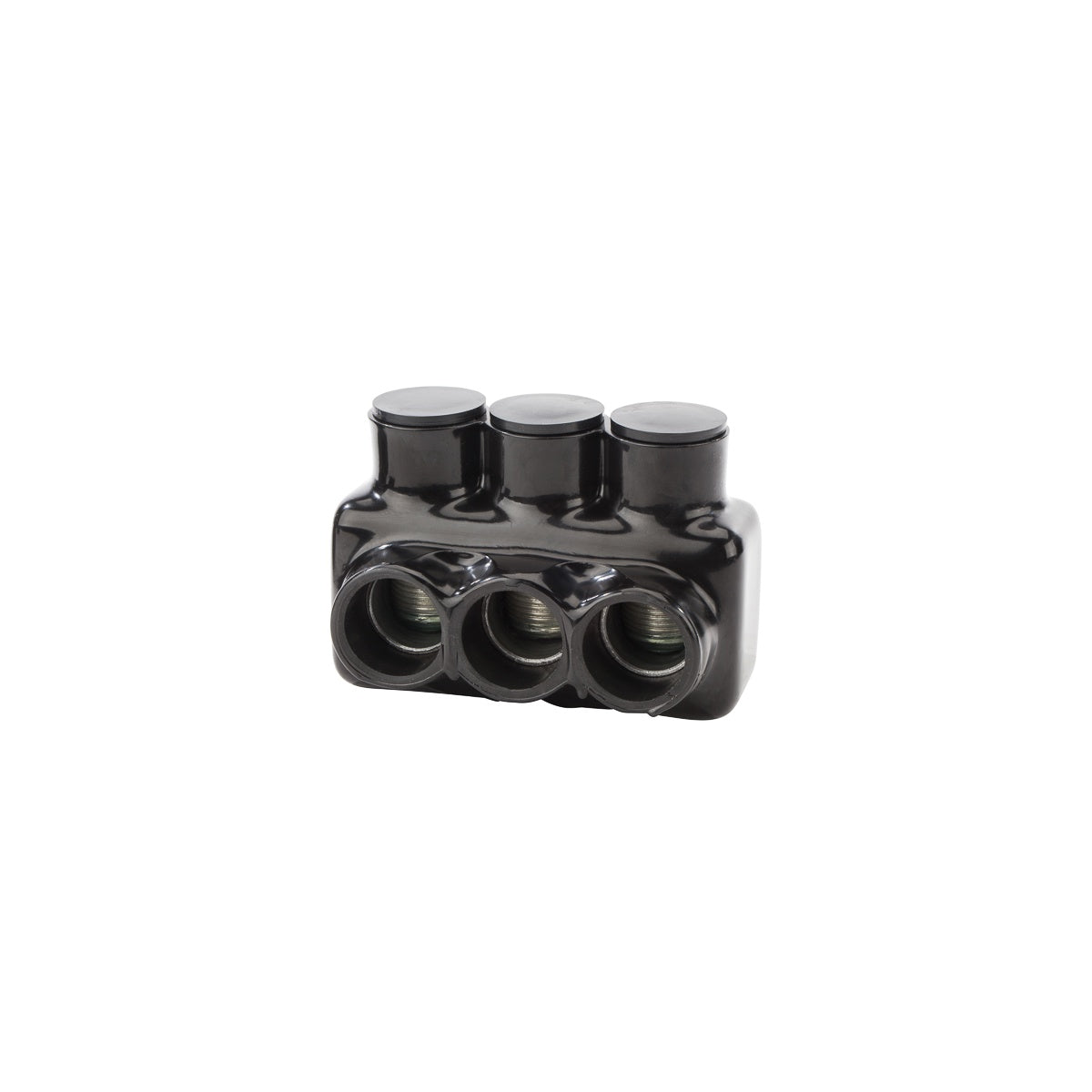

Polaris™ Ins Multi-Tap 750 3 Port DSE – Wire Termination Connector

The Polaris™ Insulated Multi-Tap 750 3 Port Dual Sided Entry (DSE) connector is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. Manufactured by NSI Industries, this connector is suitable for use by electrical distributors and switchgear suppliers requiring insulated, durable connectors for copper and aluminum conductors. It supports dual entry wire ports for flexible installation and is insulated with high-dielectric strength plastisol for abrasion, chemical, and UV resistance.

Specifications

• Application: Wire Termination
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C, dual rated for copper and aluminum cables
• Environmental Conditions: Rated for 90 °C, cold temperature rated to -45 °C
• Dimensions (L x W x H): 4.95 in x 3.41 in x 3.42 in
• Product Weight: 1.4 lbs
• Manufacturer Part #: IPLD750-3
• Wire Range: 750-250 MCM
• UL Listing: Not UL listed for this specific model (non-UL)

Features

• Dual wire entry ports allow access from either side for installation flexibility
• Pre-filled with oxide inhibitor to ensure long-term reliable connections
• Removable caps for tightening 3/8 internal hex pressure screws and for dual entry port closure
• High dielectric strength insulation resists abrasion, chemicals, and UV exposure
• Will not support combustion
• Eliminates the need for additional cover and taping
