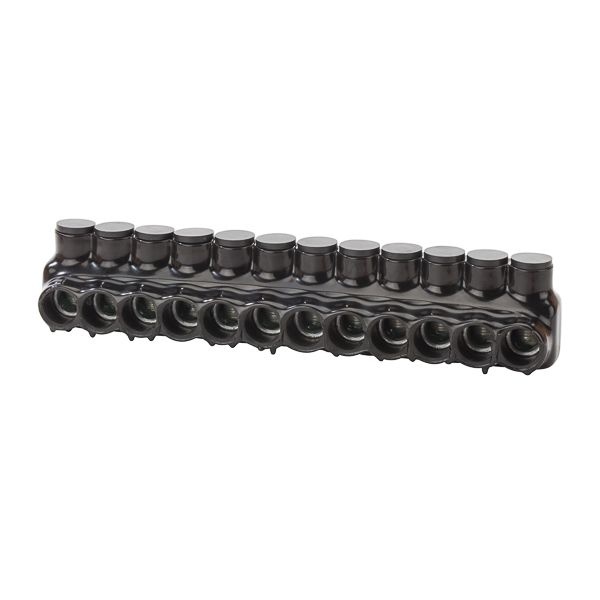

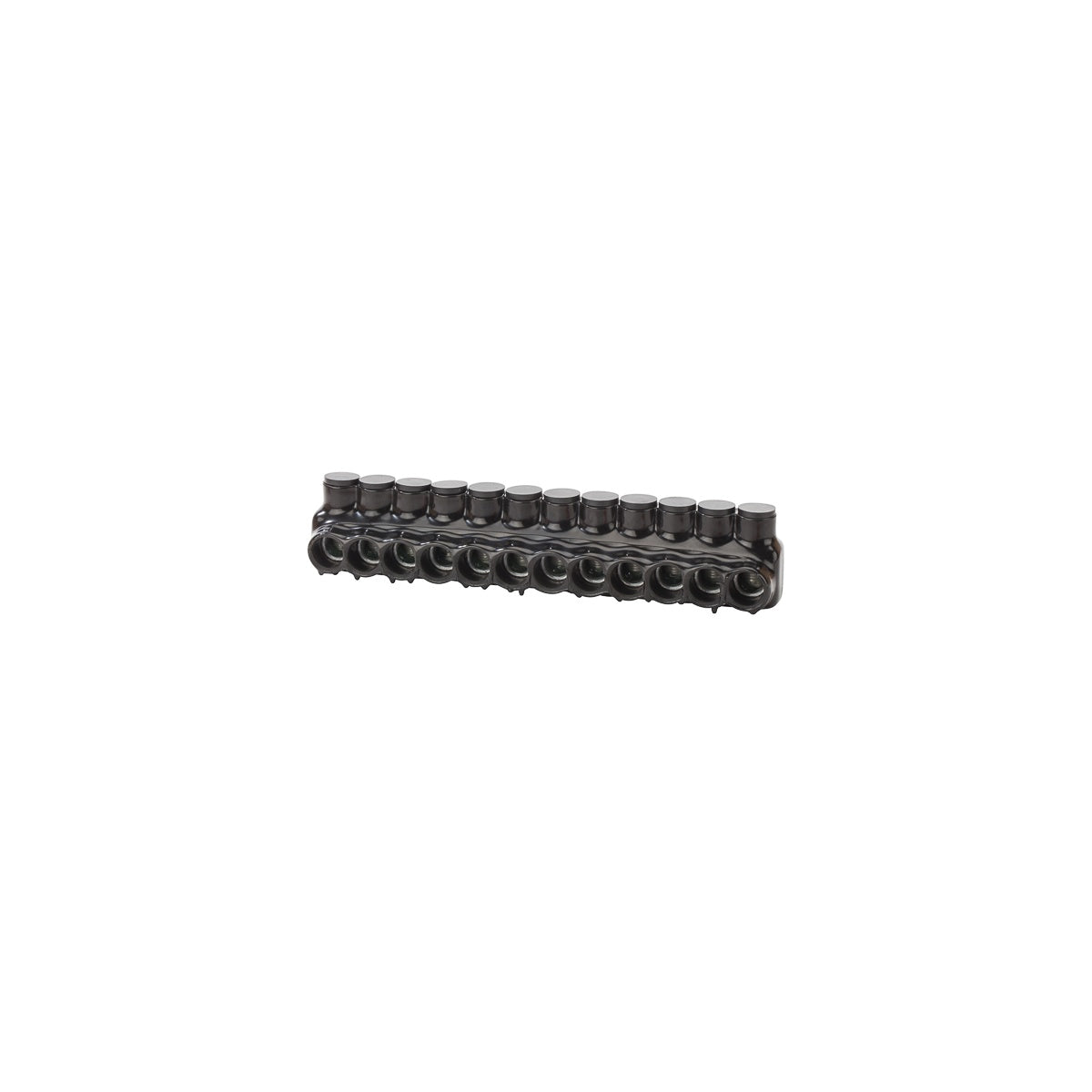

Polaris™ Ins Multi-Tap 750 12 Port DSE – Insulated Wire Connector

The Polaris™ Insulated Multi-Tap 750 12 Port Dual Side Entry connector by NSI Industries is designed for wire termination applications, providing a reliable and versatile solution for electrical distributors and switchgear suppliers. This insulated multi-cable connector block allows wire entry from either side, making it suitable for complex wiring configurations in lighting solutions, wire and cable installations, and electrical distribution systems.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPLD750-12
• Application: Wire Termination
• Number of Conductors: 12
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 17.78 in x 3.41 in x 3.42 in
• Product Weight: 5.59 lbs
• Environmental Conditions: Rated for 90°C
• Voltage Rating: 600V (per UL 486B listings for copper and aluminum conductors)

Features

• Pre-insulated with high dielectric strength plastisol for electrical safety and durability
• Dual side wire entry ports with removable plugs for flexible installation
• UL 486B Listed for copper or aluminum Class B and C conductors
• Abrasion and chemical resistant, UV resistant black plastisol finish
• Cold temperature rated to -45°C for harsh environments
• Tough impervious plastisol withstands vibration-prone conditions
• Eliminates the need for taping or additional insulation
• Versatile multi-port design suitable for multiple wiring configurations including mountable and stacked setups
• Customizable options available for special dimensional or wire port arrangements

Downloads & Links

• Sell Sheet
• Product Advertisement
• Catalog Page
• Technical Drawing
