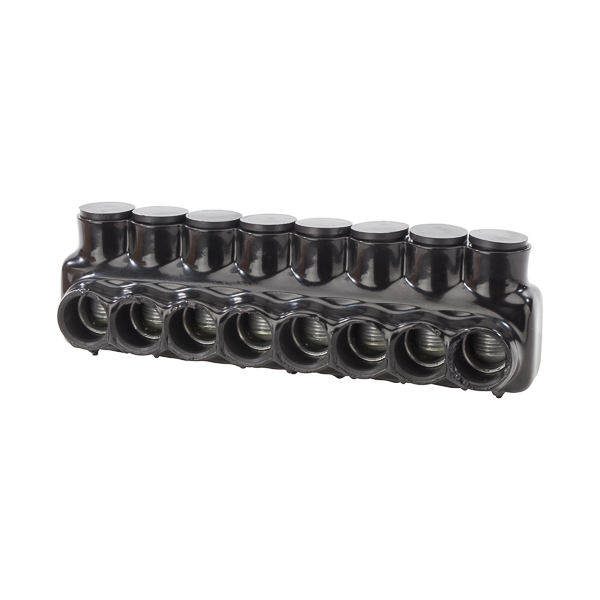

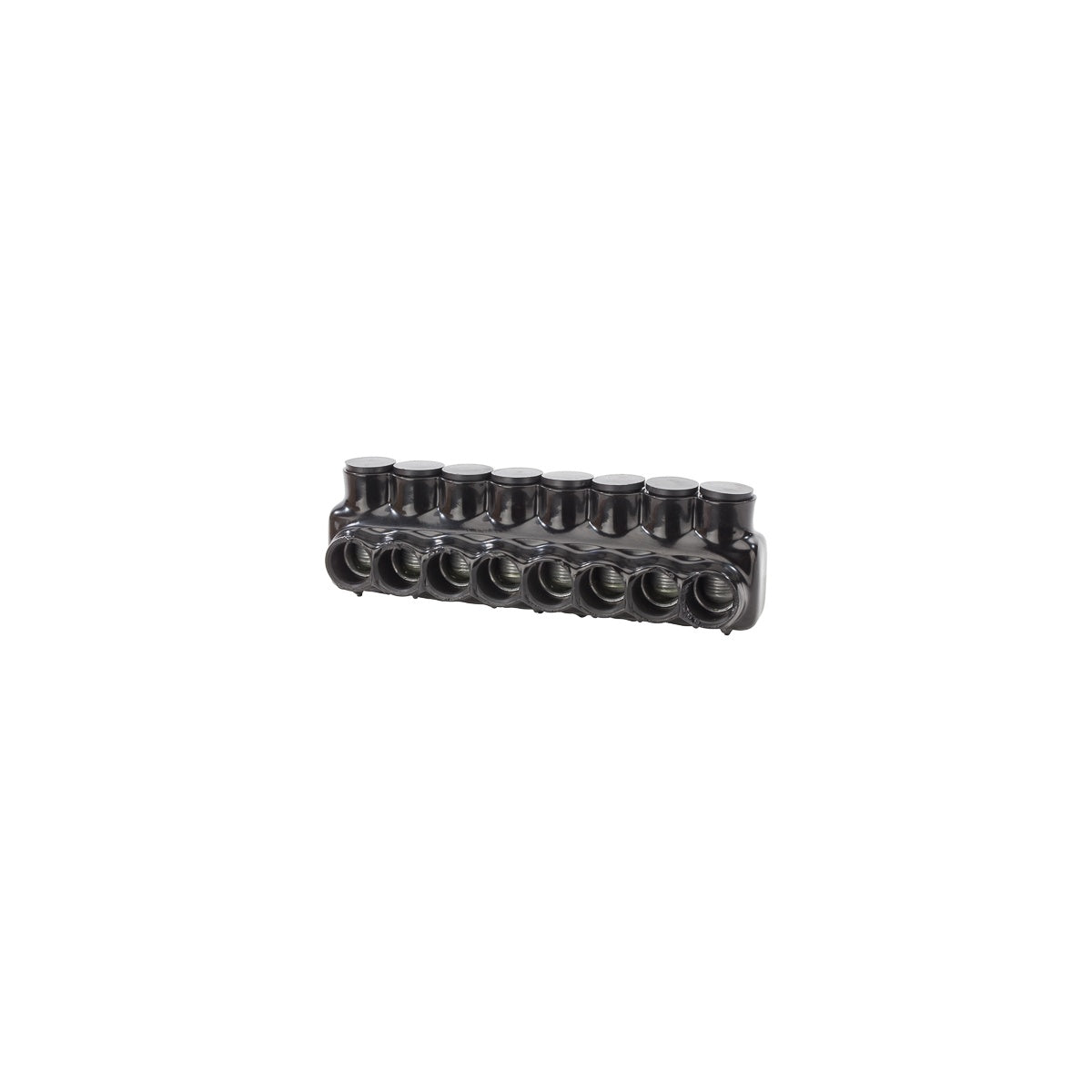

Polaris™ Ins Multi-Tap 600 8 Port DSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap 600 8 Port Dual Sided Entry connector is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. Manufactured by NSI Industries, this connector is suitable for use by electrical distributors and switchgear suppliers requiring high-quality insulated connectors for copper and aluminum conductors. Its dual entry design allows wiring access from both sides, enhancing installation flexibility in lighting solutions and electrical distribution systems.

Specifications

• Manufacturer Part #: IPLD600-8
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 8
• Number of Poles: 1
• Wire Type: Class B & C
• Application: Wire Termination
• Environmental Conditions: 75 °C
• Product Weight: 2.85 lbs
• Dimensions (L x W x H): 11.05 in x 2.96 in x 3.03 in
• Wire Range: 600 MCM - 6 AWG
• UL Listed per UL486A/B for 600V, 90 °C rating
• Cold Temperature Rated to -45 °C

Features

• Dual sided wire entry ports allow access from either side
• Pre-filled with oxide inhibitor for enhanced conductivity and corrosion resistance
• Removable caps over 5/16 internal hex pressure screws for secure and easy tightening
• High dielectric strength plastisol insulation provides abrasion, chemical, and UV resistance
• Eliminates the need for cover and taping
• Will not support combustion
• Molded for precise fit with removable access plugs for unused ports
