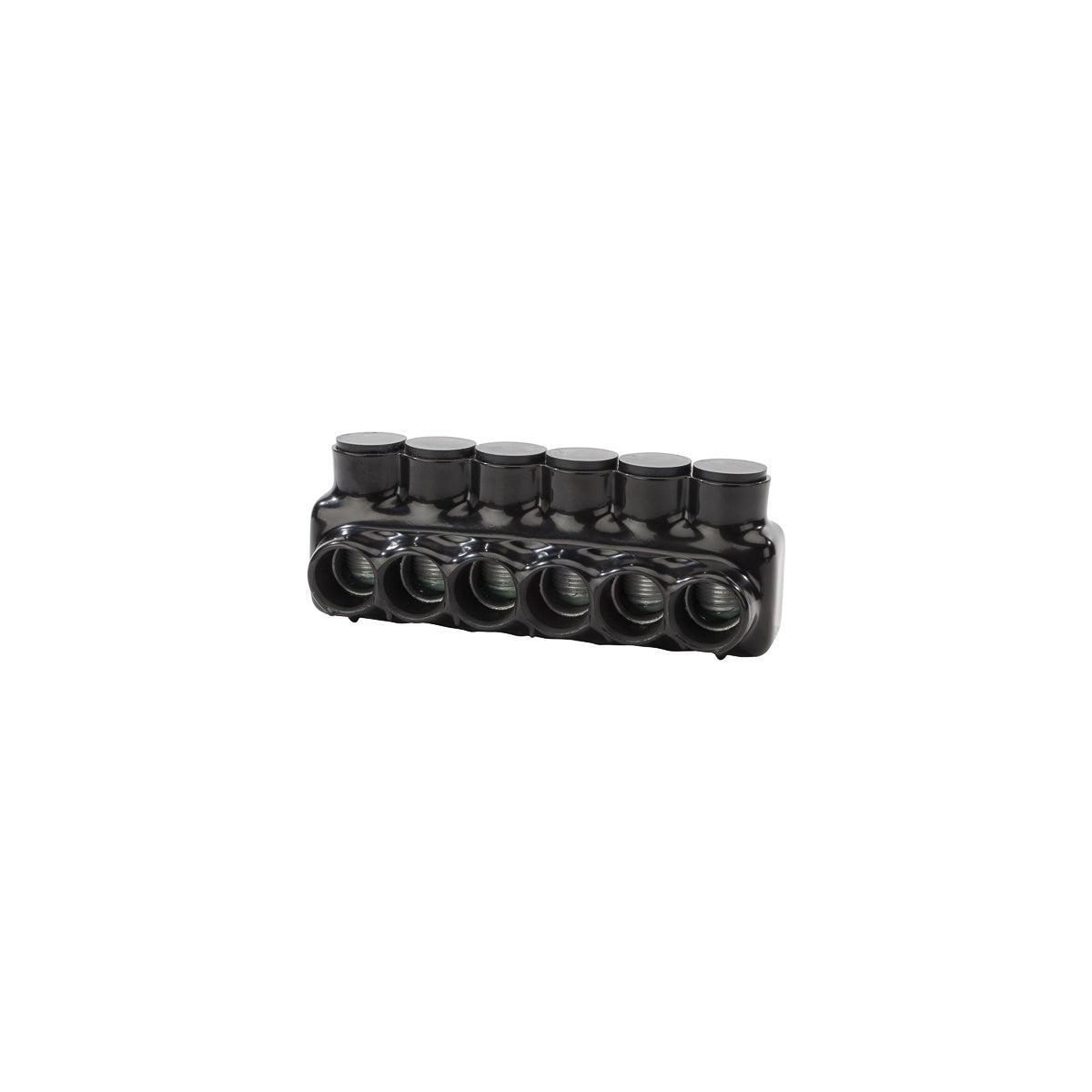

Polaris™ Ins Multi-Tap 600 6 Port SSE Electrical Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable and efficient wire and cable connections. This product supports wire ranges from 600 MCM to 6 AWG and is ideal for use in lighting solutions and other electrical systems requiring durable multi-port connections.

Specifications

• Application: Wire Termination
• Material: Aluminum (6061-T6 Alloy)
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: Rated for 75°C
• Dimensions (L x W x H): 8.37 in x 2.71 in x 3.02 in
• Product Weight: 2.1 lbs
• Manufacturer Part Number: IPL600-6
• UL Listed per UL486A/B for 600V
• Dual rated for 90°C copper and/or aluminum conductor
• Cold temperature rated to -45°C

Features

• Pre-filled with oxide inhibitor for enhanced corrosion resistance
• High dielectric strength insulation that is abrasion, chemical, and UV resistant
• Removable access plugs for easy wire entry
• 5/16 internal hex pressure screw for secure connections
• Pre-insulated design reduces installation time and labor
