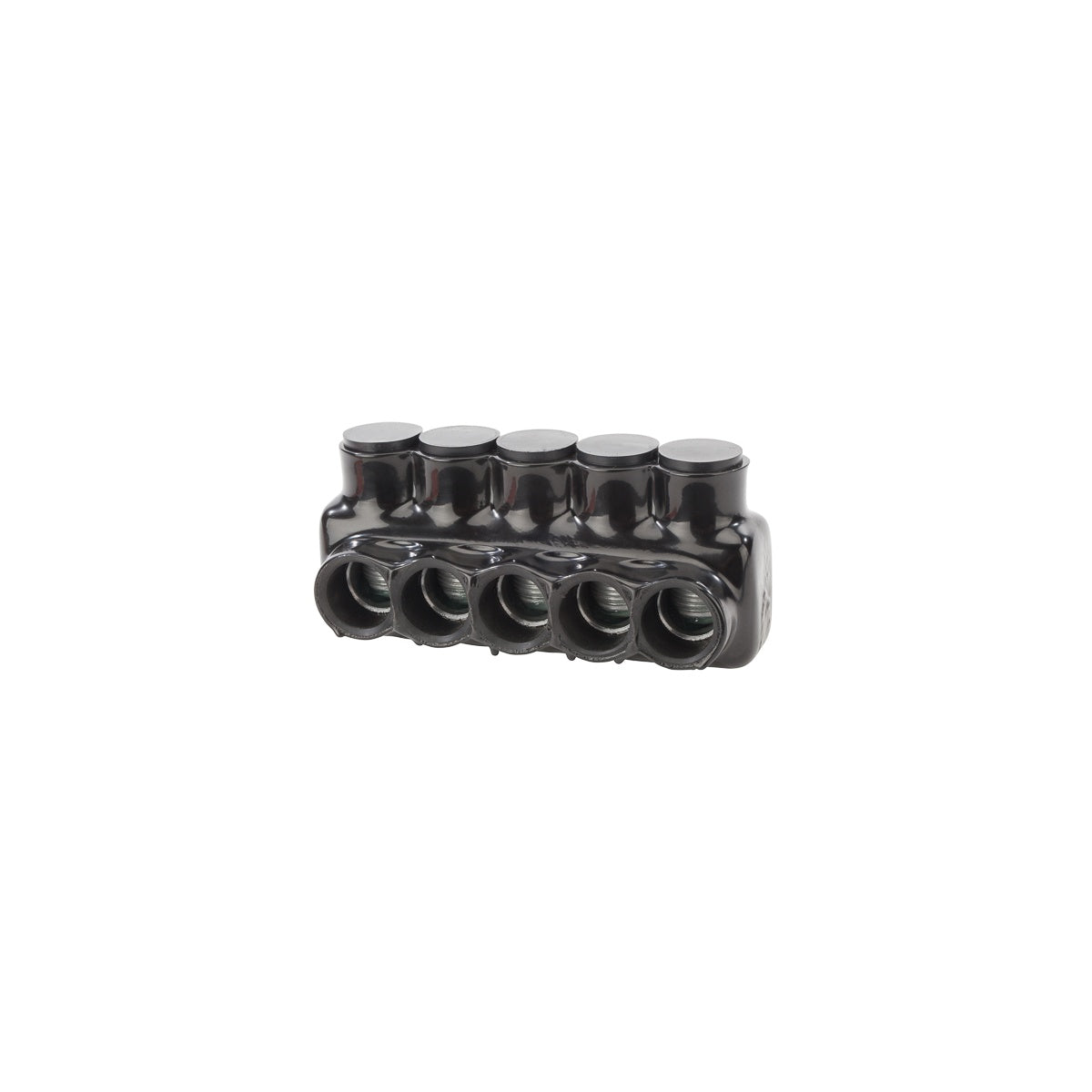

Polaris™ Ins Multi-Tap 600 5 Port DSE
SKU: #304752
Part: #IPLD600-5
UPC: 662381789525
Polaris™ Ins Multi-Tap 600 5 Port DSE
SKU: #304752
Part: #IPLD600-5
UPC: 662381789525
Total Price: $162.24 per each Sold in increments of 1 each
Description
Polaris™ Ins Multi-Tap 600 5 Port DSE Electrical Connector
The Polaris™ Insulated Multi-Tap 600 5 Port Dual Sided Entry connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers requiring insulated multi-cable connections. This connector supports wire ranges from 600 MCM to 6 AWG and is suitable for use with Class B and C copper or aluminum conductors, making it ideal for various lighting solutions and wire and cable installations.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 5
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated for 75°C
- Dimensions: 7.15 in (Length) x 2.96 in (Width) x 3.03 in (Height)
- Product Weight: 1.85 lbs
- Manufacturer Part #: IPLD600-5
- Voltage Rating: 600V, 90°C (per UL 486A/B standards)
Features
- UL 486B Listed for copper or aluminum Class B and C conductors
- Pre-insulated with high dielectric strength black plastisol insulation
- Dual sided wire entry ports with removable caps for flexible wiring configurations
- Abrasion and chemical resistant plastisol insulation
- Cold temperature rated to -45°C for harsh environments
- UV resistant for outdoor and vibration-prone installations
- Eliminates the need for additional taping or insulation materials
- Compatible with multiple wiring configurations including single side, dual side entry, mountable, and stacked arrangements
