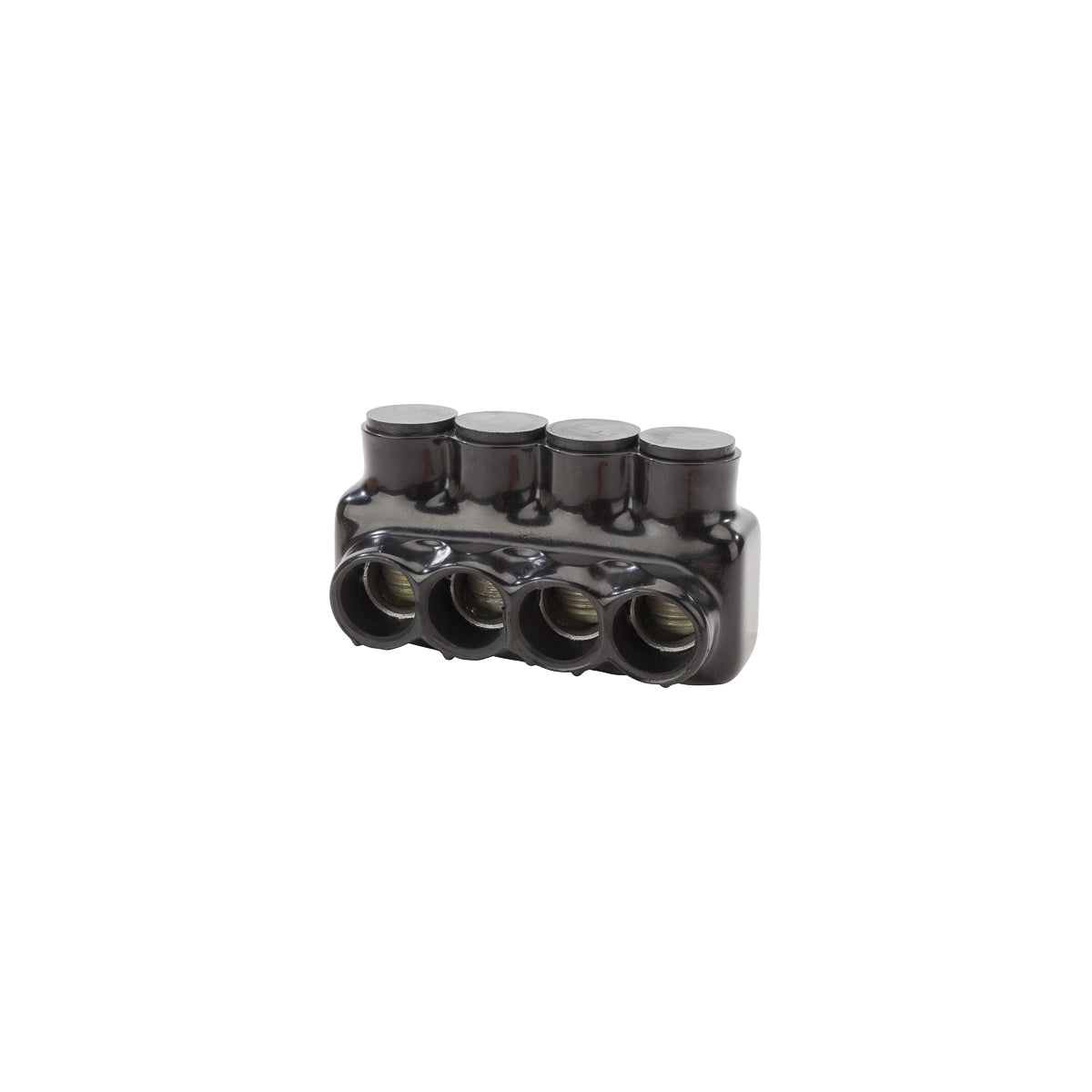

Polaris™ Ins Multi-Tap 600 4 Port SSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, suitable for use by electrical distributors and switchgear suppliers. It supports wire sizes ranging from 600 MCM to 6 AWG, accommodating Class B & C wire types. This connector provides a reliable solution for electrical and lighting systems requiring multi-port connections with insulated protection.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPL600-4
• Application: Wire Termination
• Number of Conductors: 4
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 5.77 in x 2.71 in x 3.02 in
• Product Weight: 1.8 lbs
• Environmental Conditions: Rated for 75°C
• Wire Range: 600 MCM - 6 AWG
• UL Listed per UL486A/B for 600V
• Dual Rated for 90°C Copper and/or Aluminum Conductor
• Cold Temperature Rated to -45°C

Features

• Pre-filled with oxide inhibitor to enhance connection reliability
• Removable access plug for easy installation and inspection
• 5/16 internal hex pressure screw for secure wire termination
• High dielectric strength insulation that is abrasion, chemical, and UV resistant
• Manufactured from 6061-T6 aluminum alloy for durability
• Pre-insulated design reduces installation time and labor
