Polaris™ Ins Multi-Tap 600 4 Port DSE
SKU: #304745
Part: #IPLD600-4
UPC: 662381789518
Polaris™ Ins Multi-Tap 600 4 Port DSE
SKU: #304745
Part: #IPLD600-4
UPC: 662381789518
Total Price: $90.80 per each Sold in increments of 1 each
Description

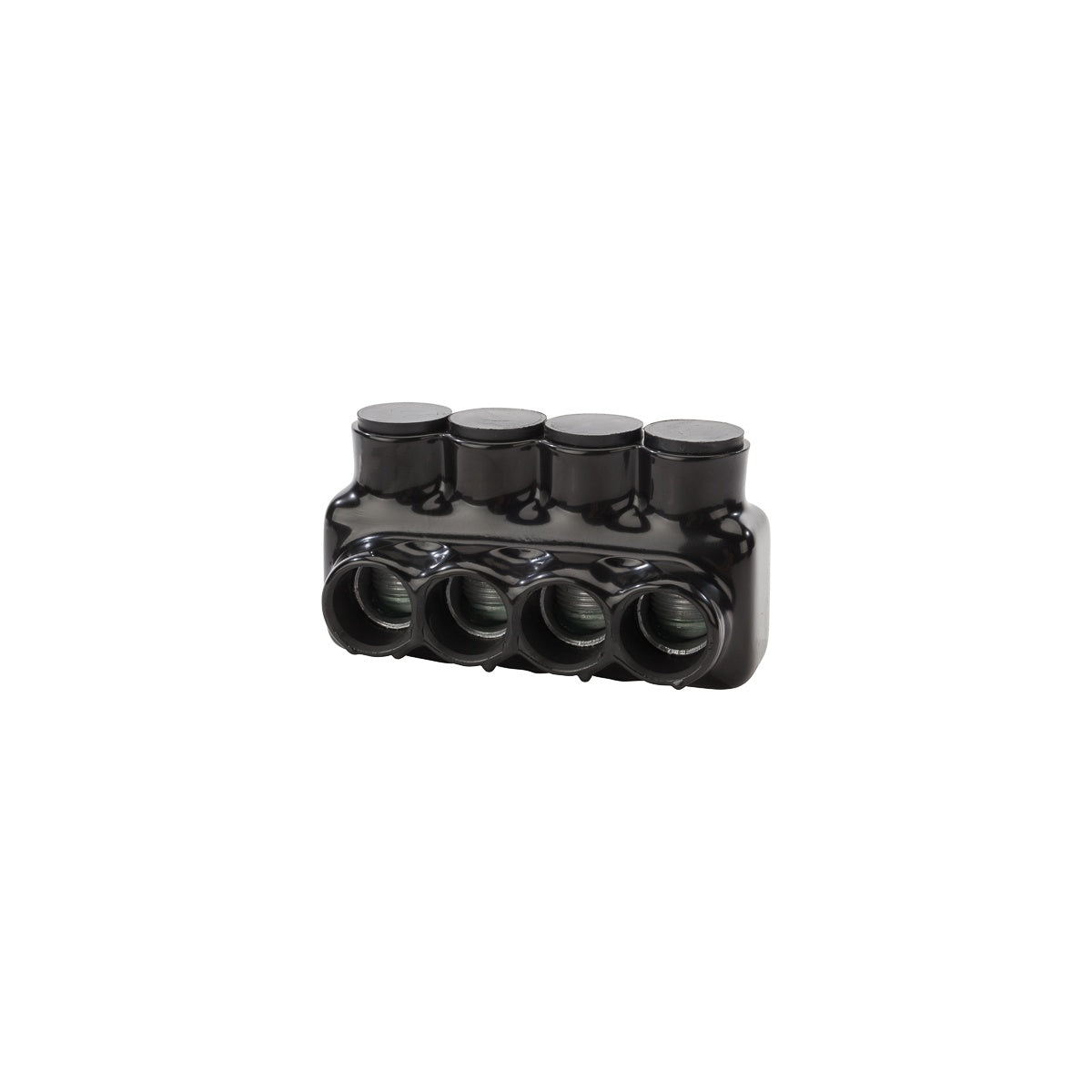

Polaris™ Ins Multi-Tap 600 4 Port DSE Electrical Connector
The Polaris™ Insulated Multi-Tap 600 4 Port Dual Sided Entry (DSE) connector is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. Manufactured by NSI Industries, this connector supports wire ranges from 600 MCM to 6 AWG and is suitable for use with Class B and C copper and aluminum conductors. It is insulated with high-dielectric strength plastisol, making it abrasion, chemical, and UV resistant, ideal for electrical distributors and lighting solutions requiring durable wire termination components.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 75 °C
- Dimensions (L x W x H): 5.85 in x 2.96 in x 3.03 in
- Product Weight: 1.7 lbs
- Manufacturer Part #: IPLD600-4
- UL Listed per UL486A/B for 600V
- Temperature Rating: Rated 600V, 90 °C; cold temperature rated to -45 °C
Features
- Dual sided wire entry ports allow access from either side, simplifying installation.
- Pre-filled with oxide inhibitor to ensure reliable electrical contact.
- Removable caps over 5/16 internal hex pressure screws enable secure connections and easy maintenance.
- High dielectric strength insulation is abrasion, chemical, and UV resistant.
- Eliminates the need for additional cover and taping.
- Will not support combustion, enhancing safety in electrical installations.
