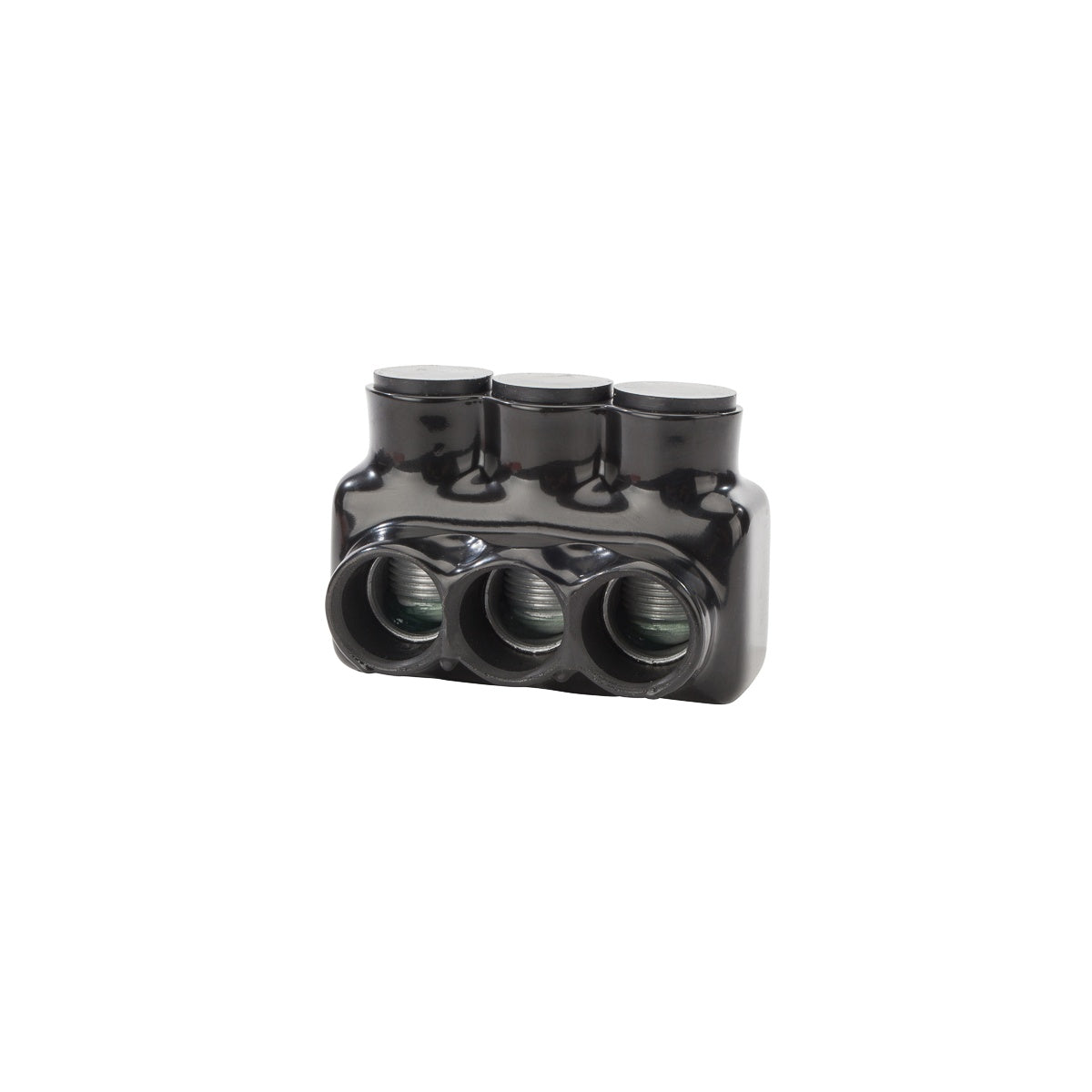

Polaris™ Ins Multi-Tap 600 3 Port SSE Electrical Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. This 3-port, single-sided entry connector supports wire sizes from 600 MCM to 6 AWG and is optimized for Class B and C wire types. Its robust aluminum construction with plastisol insulation ensures durability and safety in demanding electrical environments.

Specifications

• Application: Wire Termination
• Wire Range: 600 MCM - 6 AWG
• Number of Conductors: 3
• Number of Poles: 1
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 4.47 in x 2.71 in x 3.02 in
• Environmental Conditions: Rated for 75°C, cold temperature rated to -45°C
• Wire Type Compatibility: Class B & C
• Product Weight: 1.05 lbs
• UL Listing: UL486A/B for 600V, dual rated for 90°C copper and/or aluminum conductors
• Manufacturer Part Number: IPL600-3

Features

• Pre-filled with oxide inhibitor for enhanced conductivity and corrosion resistance
• Removable access plug for easy installation and maintenance
• 5/16 internal hex pressure screw for secure wire connection
• High dielectric strength insulation that is abrasion, chemical, and UV resistant
• Compact design suitable for multi-port in-line or stacked applications
