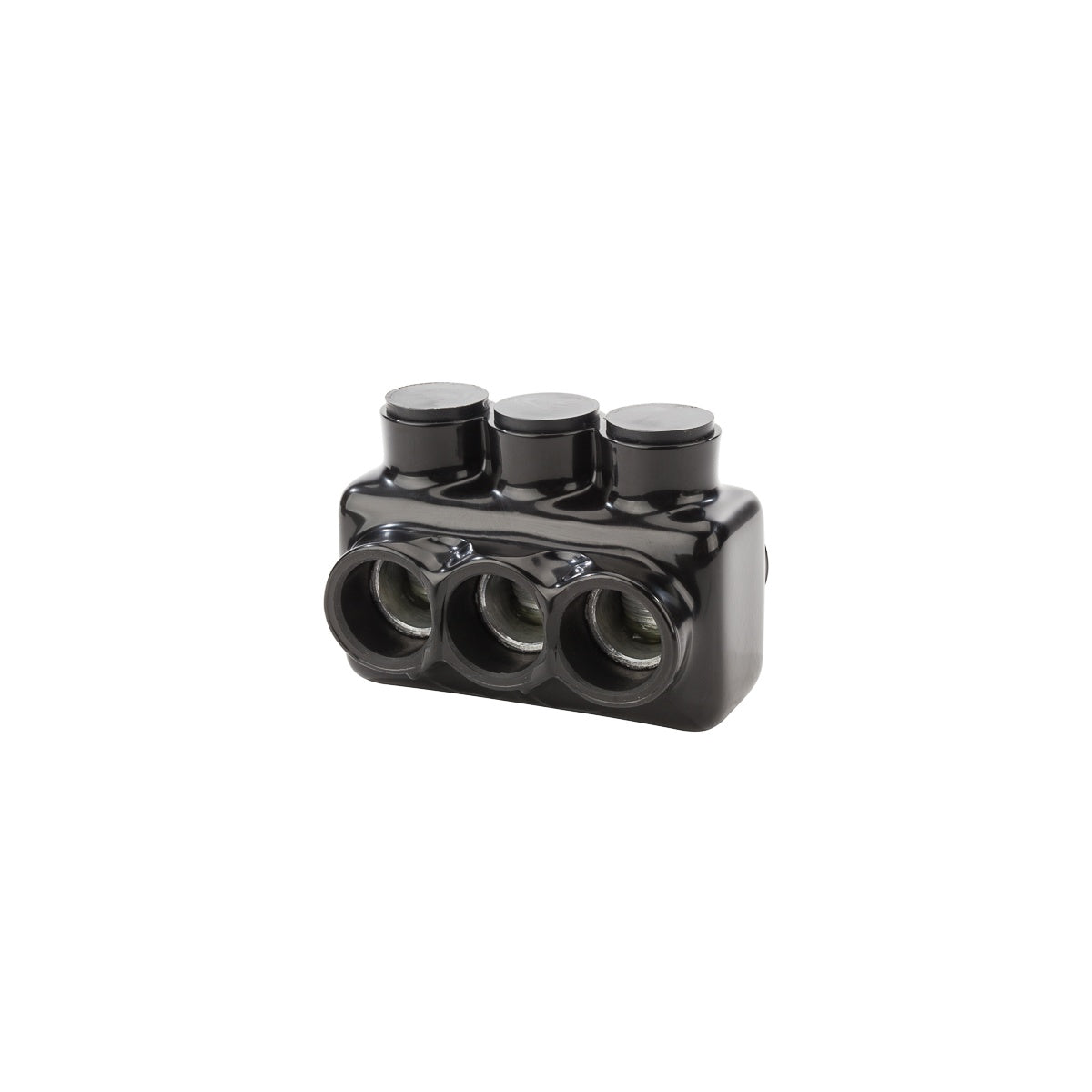

Polaris™ Ins Multi-Tap 600 3 Port DSE - Insulated Wire Connector

The Polaris™ Insulated Multi-Tap 600 3 Port Dual Sided Entry (DSE) connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers handling wire and cable configurations. This connector supports wire sizes from 600 MCM to 6 AWG and is suitable for Class B and C copper or aluminum conductors. Its dual entry design allows wire access from both sides, enhancing installation flexibility and efficiency in lighting solutions and electrical distribution systems.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: Rated for 75°C
• Dimensions (L x W x H): 4.55 in x 2.96 in x 3.03 in
• Product Weight: 1.55 lbs
• Manufacturer: NSI Industries
• Manufacturer Part Number: IPLD600-3

Features

• UL 486B listed for copper or aluminum Class B and C conductors
• High dielectric strength plastisol insulation provides abrasion and chemical resistance
• Dual entry wire ports with removable caps allow wiring access from either side
• Pre-filled with oxide inhibitor to ensure secure connections
• Rated for 600V, 90°C operation
• Cold temperature rated to -45°C
• UV resistant black plastisol housing prevents degradation in harsh environments
• Eliminates need for additional insulation such as tape or covers
• Tough, impervious construction suitable for vibration-prone conditions
