Polaris™ Ins Multi-Tap 600 12 Port DSE
SKU: #304736
Part: #IPLD600-12
UPC: 662381789594
Polaris™ Ins Multi-Tap 600 12 Port DSE
SKU: #304736
Part: #IPLD600-12
UPC: 662381789594
Total Price: $380.27 per each Sold in increments of 1 each
Description

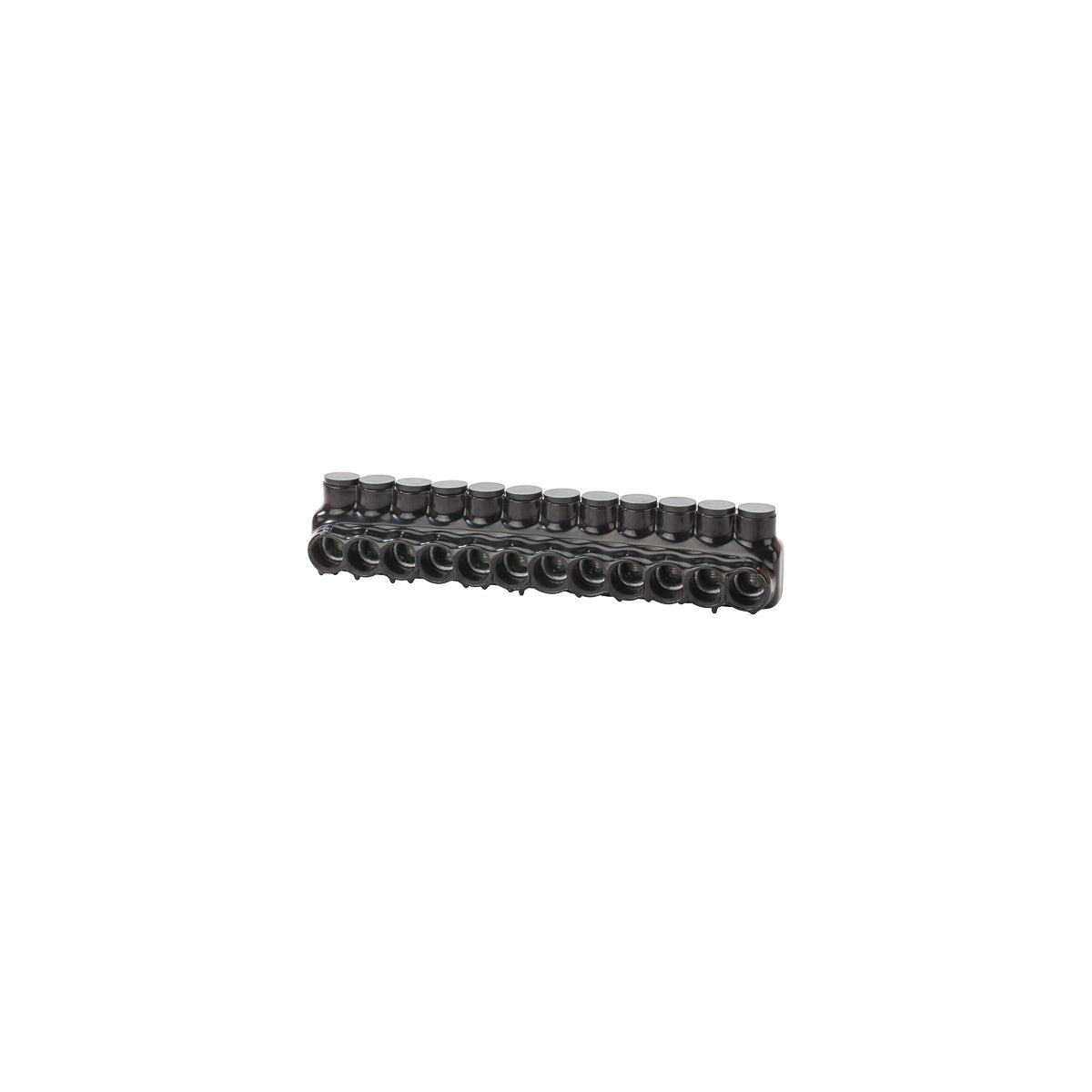

Polaris™ Ins Multi-Tap 600 12 Port DSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap 600 12 Port Dual Side Entry connector is designed for wire termination applications, suitable for use by electrical distributors and switchgear suppliers. This connector accommodates wire sizes from 600 MCM to 6 AWG and supports Class B and C copper or aluminum conductors. It is pre-insulated with high dielectric strength plastisol, providing abrasion, chemical, and UV resistance for reliable performance in demanding environments.
Specifications
- Application: Wire Termination
- Number of Conductors: 12
- Number of Poles: 1
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 16.25 in x 2.96 in x 3.03 in
- Product Weight: 4.28 lbs
- Wire Type: Class B & C
- Environmental Conditions: Rated to 75°C
- Voltage Rating: 600V, 90°C
- Temperature Rating: Cold temperature rated to -45°C
- UL Listing: UL 486B Listed for copper or aluminum conductors
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLD600-12
Features
- Dual side wire entry ports allow access from either side
- Pre-insulated with high dielectric strength plastisol to eliminate the need for taping or covers
- Supplied with removable plugs to close unused wire entry ports
- Abrasion, chemical, and UV resistant black plastisol finish
- Will not support combustion
- Suitable for harsh vibration-prone conditions
- Dual rated for use with copper and aluminum cables for flexibility and cost savings
- Designed for precise fit with removable access plugs over hex screws
