Polaris™ Ins Multi-Tap 600 10 Port DSE
SKU: #304729
Part: #IPLD600-10
UPC: 662381789570
Polaris™ Ins Multi-Tap 600 10 Port DSE
SKU: #304729
Part: #IPLD600-10
UPC: 662381789570
Total Price: $301.61 per each Sold in increments of 1 each
Description

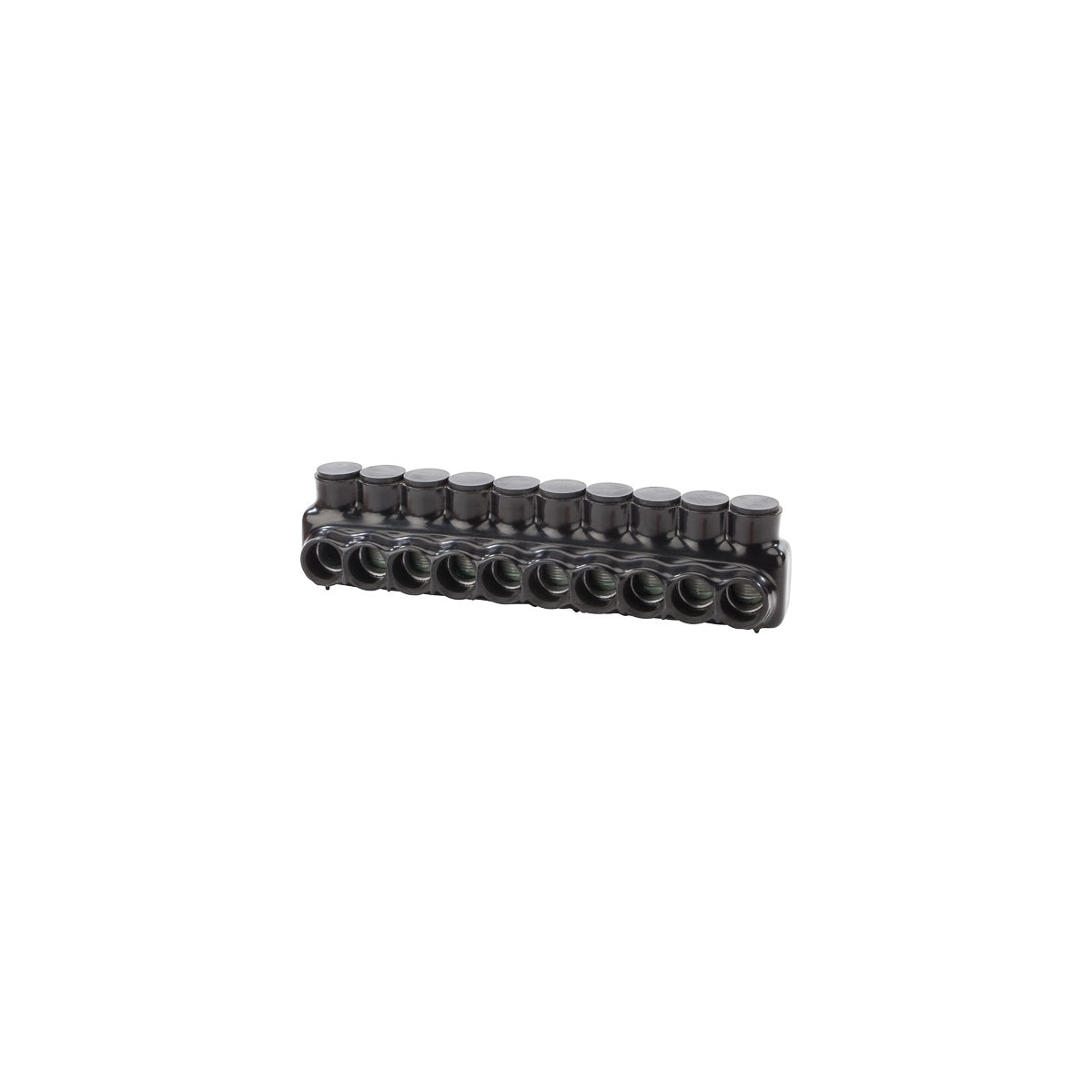

Polaris™ Ins Multi-Tap 600 10 Port DSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, offering a reliable solution for electrical distributors and switchgear suppliers requiring versatile and efficient wire and cable connections. This connector supports dual-sided entry with 10 ports, accommodating wire sizes from 600 MCM to 6 AWG and is suitable for Class B and C wire types. Its construction and features make it ideal for use in various lighting solutions and electrical distribution systems.
Specifications
- Application: Wire Termination
- Number of Conductors: 10
- Number of Poles: 1
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 13.65 in x 2.96 in x 3.03 in
- Product Weight: 3.5540 lbs
- Wire Type: Class B & C
- Environmental Conditions: Rated 75°C
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLD600-10
- Voltage Rating: 600V, 90°C (UL 486B Listed)
- Temperature Rating: Cold temperature rated to -45°C
Features
- Dual-sided wire entry ports for flexible wiring configurations
- Pre-insulated with high dielectric strength plastisol, eliminating the need for additional taping or covers
- Molded for precise fit with removable access plugs over hex screws
- Abrasion, chemical, and UV resistant plastisol finish
- Will not support combustion, suitable for harsh environments
- Dual rated for use with copper and aluminum cables
- Cold temperature resistant down to -45°C
- Designed for use with mechanical splice blocks and split bolts
