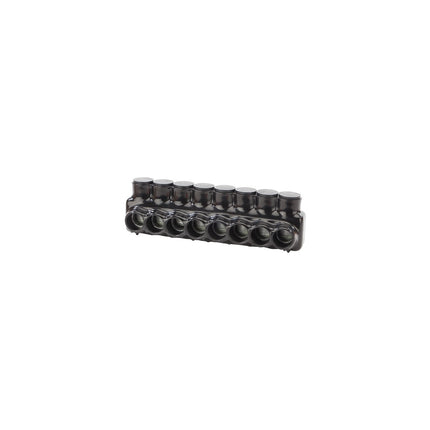

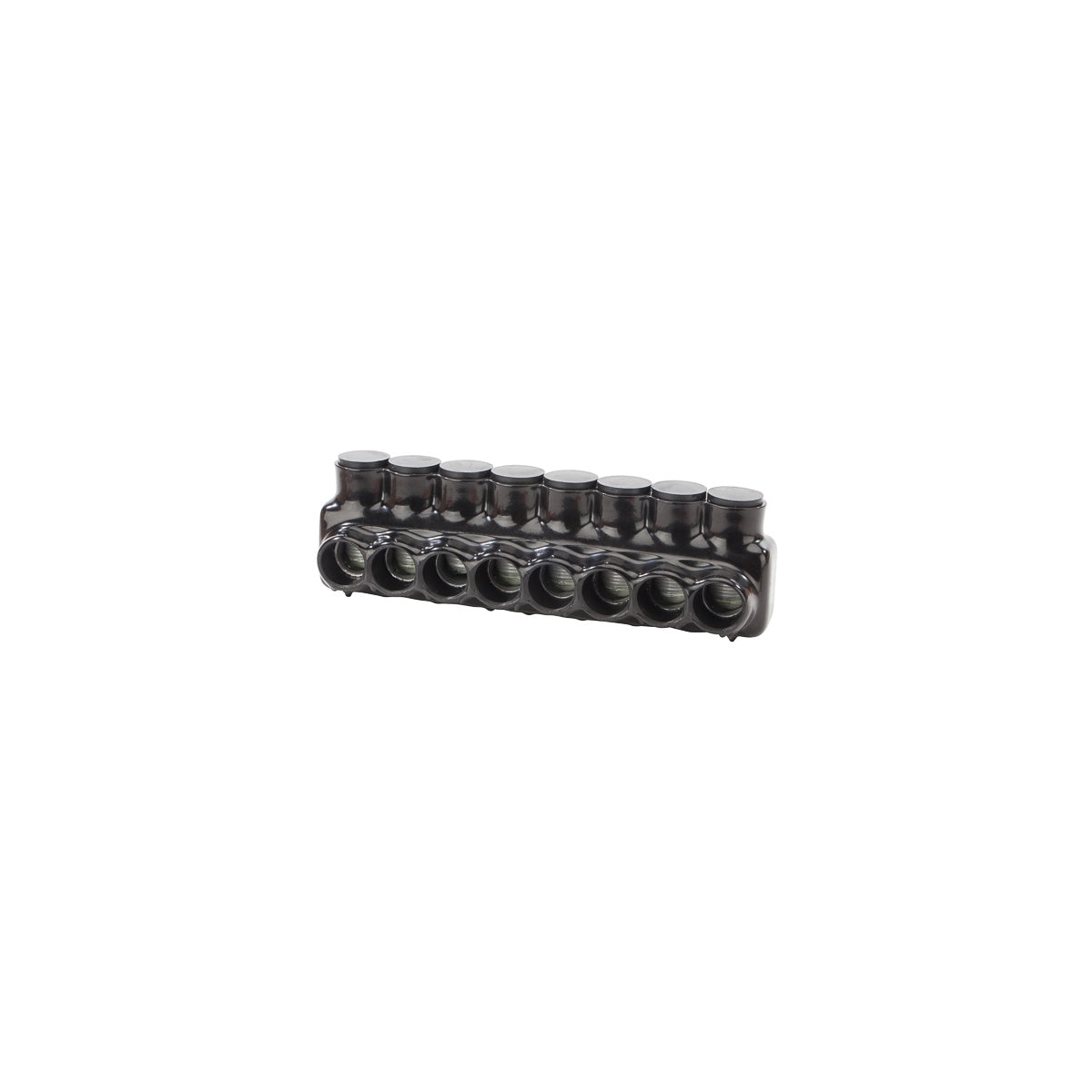

Polaris™ Ins Multi-Tap 500 8 Port SSE
SKU: #304488
Part: #IPL500-8
UPC: 662381915061
Polaris™ Ins Multi-Tap 500 8 Port SSE
SKU: #304488
Part: #IPL500-8
UPC: 662381915061
Total Price: $137.89 per each Sold in increments of 1 each
Description
Polaris™ Ins Multi-Tap 500 8 Port SSE Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector (Model IPL500-8) is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers. This connector supports wire sizes from 500 MCM to 4 AWG and features eight ports with single-sided wire entry, facilitating efficient wiring in lighting solutions, wire and cable installations, and other electrical systems. It is dual rated for use with Class B & C copper and aluminum conductors, suitable for dry locations with a temperature rating of 90°C and 600V.
Specifications
- Application: Wire Termination
- Manufacturer: NSI Industries
- Manufacturer Part #: IPL500-8
- Number of Conductors: 8
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions: 9.69 in (L) x 2.5 in (W) x 2.94 in (H)
- Product Weight: 2.09 lbs
- Environmental Conditions: Rated for 90°C
- UPC: 662381915061
Features
- Wire entry ports on one side only, simplifying installation
- Eliminates the need for cover and taping, reducing labor time
- Insulated with high-dielectric strength plastisol for electrical safety
- Molded for precise fit and supplied with removable access plugs over hex screws
- Abrasion and chemical resistant for durability
- UV resistant to withstand outdoor conditions
- Will not support combustion, enhancing safety
